Reliable communication is essential for maritime operations, transportation, remote facilities, and other environments where conventional cellular networks may be unavailable. Satellite phones provide a dependable communication option for users operating beyond the reach of terrestrial mobile networks. However, professional users often need more than a standalone satellite handset. They may require a secure docking station, continuous charging, hands-free calling, convenient data connectivity, and flexible installation options.
The Beam IntelliDOCK 9555 (9555ID), manufactured by Beam Communications, is designed to meet these requirements. Developed specifically for the Iridium 9555 satellite phone, this professional docking station combines secure handset mounting, integrated antenna connections, Bluetooth connectivity, charging, and support for Iridium voice and data services.
With its robust construction, built-in ringer, universal mounting bracket, and optional privacy handset support, the IntelliDOCK 9555 provides a practical solution for maritime, transportation, four-wheel-drive (4WD), and fixed-site installations.
VSATplus offers professional satellite communication equipment and accessories, including solutions for Iridium satellite phone installations. Customers can contact VSATPlus to inquire about the availability, pricing, and compatible accessories for the Beam IntelliDOCK 9555.
The Beam IntelliDOCK 9555 is a dedicated docking station designed to securely hold and charge the Iridium 9555 satellite handset while providing convenient access to its communication capabilities.
Unlike using a satellite phone as a standalone portable device, a docking station allows the handset to remain in a designated location with its antenna, power, and data connections arranged for regular use. This is particularly valuable in vehicles, vessels, offices, and remote facilities where satellite communications are required as part of daily operations.

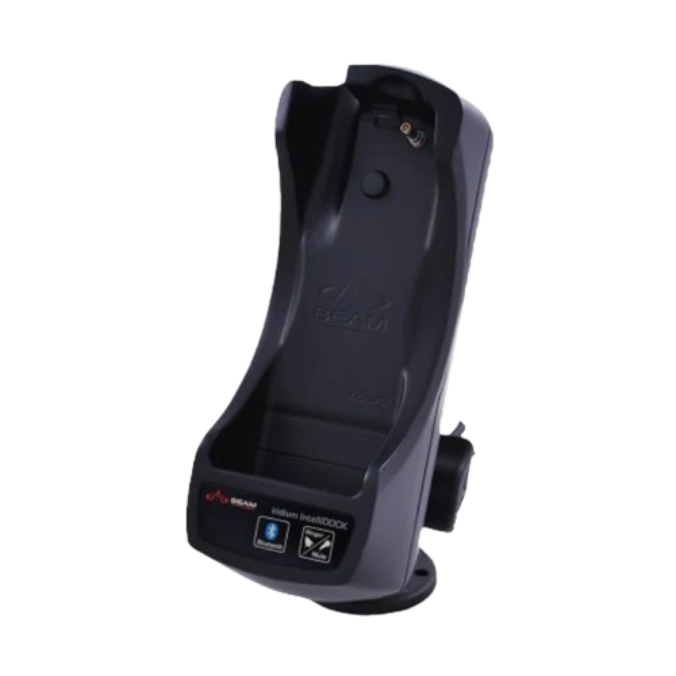

The IntelliDOCK 9555 features a purpose-built cradle that holds the compatible handset securely. Users can insert the phone into the dock and remove it by pressing the release button located at the top of the cradle.
The dock also incorporates Bluetooth connectivity, a built-in ringer, a USB data connection, and support for an optional Beam Privacy Handset.
According to the manufacturer’s brochure, the IntelliDOCK 9555 supports Iridium voice, data, SMS, and Short Burst Data (SBD) services. It is designed to provide convenient access to the communication capabilities of the docked Iridium 9555 handset.
Important: The Beam IntelliDOCK 9555 is a docking accessory, not a standalone satellite phone. The Iridium 9555 handset and an appropriate Iridium satellite service are required for satellite communication.

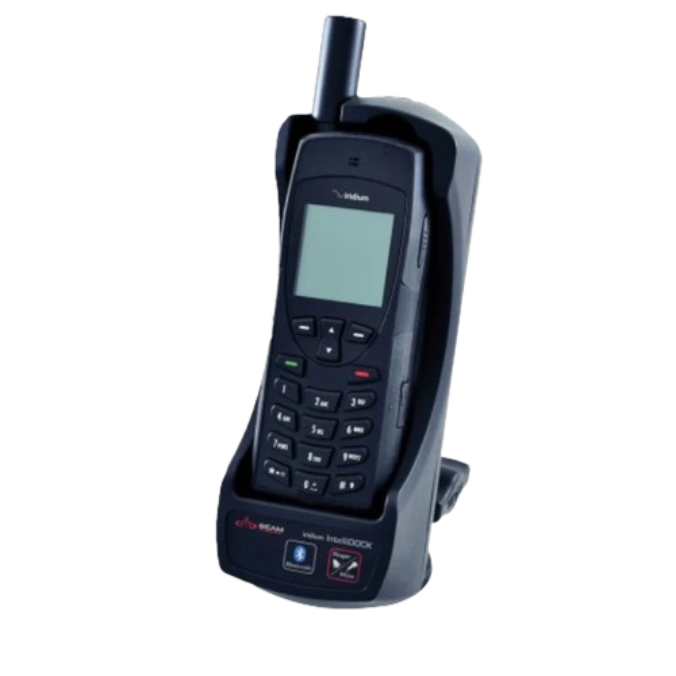

The IntelliDOCK 9555 features a dedicated cradle designed specifically for the Iridium 9555 satellite phone.
Its robust construction helps keep the handset securely positioned during normal use. The release button at the top of the cradle allows users to remove the phone easily when portable operation is required.
This design is useful for installations where the handset needs to remain accessible without being permanently fixed in place.
Key benefits include:
One of the IntelliDOCK 9555’s main advantages is its integrated connection arrangement.
The manufacturer explains that antenna cables and power can remain connected to the dock, allowing the handset to be inserted and used without repeatedly reconnecting these components.
The docking station provides an Iridium antenna connection, a GPS antenna connection, a DC power interface, and a USB data port.
This arrangement can simplify installation and everyday operation in vehicles, vessels, and fixed locations.
The IntelliDOCK 9555 includes built-in Bluetooth functionality and supports compatible Bluetooth voice accessories.
Bluetooth connectivity allows users to connect suitable wireless accessories for hands-free communication. This can be particularly useful in transportation and other installations where handling a satellite handset during a call is inconvenient.
The manufacturer’s brochure identifies Bluetooth voice connectivity as an integrated feature of the cradle.
A compatible Bluetooth accessory may need to be purchased separately, depending on the required setup.
Hands-free calling is an important feature for users who need to communicate while working or operating a vehicle or vessel.
The IntelliDOCK 9555 supports hands-free calling through compatible Bluetooth voice accessories. This gives users an alternative to holding the satellite phone during a conversation.
For transportation and maritime users, hands-free operation can make satellite communications more convenient, provided the installation and use comply with applicable safety requirements.
The docking station incorporates a built-in ringer to improve incoming-call notification.
When the satellite phone is docked, an audible ringer can help users notice incoming calls without continuously watching the handset.
This is particularly helpful in fixed-site installations, remote facilities, offices, and other locations where the satellite phone remains in its cradle for extended periods.
The IntelliDOCK 9555 supports the communication services available through the compatible Iridium 9555 handset.
These include:
The manufacturer’s brochure also identifies access to prepaid, postpaid, and crew-calling services. Actual availability depends on the handset configuration, subscription, service provider, and applicable network arrangements.

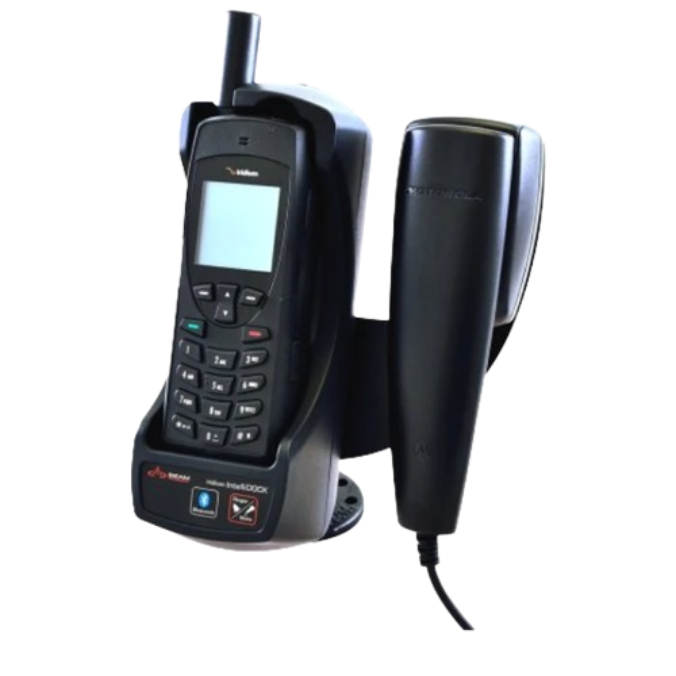

The IntelliDOCK 9555 supports the optional Beam Privacy Handset RST755.
This accessory can be positioned beside the docking station to provide an alternative handset for private conversations. It is useful in installations where the satellite phone remains mounted in a fixed location but users prefer a separate handset for voice calls.
The privacy handset is optional and should be confirmed when ordering.
The IntelliDOCK 9555 supports a 9–32 V DC power input, with a maximum current rating of 2 A according to the manufacturer’s datasheet.
This broad input range supports installation in compatible power systems used in vehicles, vessels, and other operational environments.
An optional AC power pack is also available for installations where mains power is preferred. The brochure specifies a 90–250 V AC input range and a 12 V, 45 W output for this adapter.
The IntelliDOCK 9555 comes with a universal RAM mounting bracket and is also suitable for wall mounting.
This flexibility helps installers position the dock according to the available space and the user’s operational requirements.
Potential mounting locations include suitable areas inside vehicles, vessel cabins, remote offices, and fixed communication facilities.
Beam Communications describes the IntelliDOCK 9555 as a professionally designed product with robust construction.
The manufacturer lists Iridium approval, CE compliance, electrical safety, electromagnetic compatibility (EMC), RoHS, and C-Tick among its certifications and compliance categories.
The brochure also specifies a two-year replacement guarantee and states that each unit is factory tested. Warranty terms should be confirmed with the supplier at the time of purchase.
The IntelliDOCK 9555 offers several practical advantages for users who depend on Iridium satellite communications.
The dedicated cradle keeps the handset in a designated location and makes it easy to insert or remove the phone.
The dock charges the Iridium 9555 handset, helping keep it ready for use when the appropriate power supply is connected.
Integrated antenna, power, and data connections help reduce the need to reconnect cables during normal docking and removal.
Bluetooth connectivity supports compatible voice accessories, providing greater flexibility for calls in suitable installations.
The built-in ringer provides audible notification of incoming calls.
The universal mounting bracket, wall-mounting suitability, and wide DC input range make the dock adaptable to different installation environments.
The IntelliDOCK 9555 supports the Iridium handset’s compatible voice, data, SMS, and SBD services.
Optional privacy handsets, Bluetooth headsets, external antennas, and antenna cables provide additional choices for different installation requirements.
Together, these features make the IntelliDOCK 9555 a practical accessory for organizations and individuals seeking a more organized satellite phone installation.
The manufacturer identifies boating, transportation, 4WD, and in-building environments as key applications for the IntelliDOCK 9555. These applications share a common requirement: convenient access to satellite communication where a dedicated handset installation is beneficial.
Vessels operating offshore may travel beyond the coverage of conventional mobile networks. Satellite phones can provide an alternative communication method when supported by an appropriate service.
The IntelliDOCK 9555 provides a dedicated mounting and charging solution for the Iridium 9555 handset aboard compatible vessels.
Potential users include:
The antenna, mounting arrangement, and power supply should be selected according to the vessel’s installation requirements.
Transportation professionals may operate in remote areas where conventional mobile coverage is limited or unavailable.
The IntelliDOCK 9555 allows the Iridium handset to remain docked and charged inside a compatible vehicle. Bluetooth accessories can provide hands-free calling when supported and permitted by the operating environment.
Potential applications include remote transport operations, field-service vehicles, and other mobile operations requiring satellite phone access.
Users travelling through remote regions may need satellite communication beyond the coverage of terrestrial mobile networks.
The IntelliDOCK 9555 provides a dedicated location for the Iridium handset inside a compatible 4WD vehicle. Its mounting options and charging capability help make the phone convenient to access during travel.
This can be useful for expedition teams, remote travellers, field workers, and other users who rely on satellite communications.
Some remote facilities require satellite telephone connectivity from a fixed location.
The IntelliDOCK 9555 can be installed in a suitable building or operational facility, providing a dedicated location for the handset and its connections.
Potential users include:
The antenna and cable arrangement must be appropriate for the building and the satellite phone’s operating requirements.
The manufacturer’s brochure identifies prepaid, postpaid, and crew-calling services as supported access options.
These services may be relevant to organizations that provide satellite phone access to multiple users, subject to the selected service plan and provider arrangements.
The IntelliDOCK’s secure cradle and fixed installation can help keep the handset available in a designated shared location.
The following tables summarize the technical details provided in the manufacturer’s IntelliDOCK 9555 brochure.
| Specification | Details |
|---|---|
| Product Name | Beam IntelliDOCK 9555 |
| Model Number | 9555ID |
| Manufacturer | Beam Communications |
| Compatible Handset | Iridium 9555 |
| Product Type | Satellite Phone Docking Station |
| Iridium Handset Frequency Range | 1616–1625 MHz |
| Compressed Data Rate | 10–12 kbps |
| Voice/Data Modulation | 2.4 kbps |
| Supported Services | Voice, data, SMS, and SBD |
| Bluetooth Connectivity | Integrated Bluetooth voice connectivity |
| USB Data Connectivity | USB data port |
| Privacy Handset Support | Optional Beam Privacy Handset RST755 |
These specifications are taken from the manufacturer’s brochure. Actual satellite communication capabilities depend on the Iridium 9555 handset and the applicable service plan.
| Specification | Details |
|---|---|
| DC Power Input | 9–32 V DC |
| Maximum Input Current | 2 A |
| AC Power Pack Input | 90–250 V AC, 50–60 Hz |
| AC Power Pack Output | 12 V DC, 45 W |
| Standby Power Consumption, Including Handset | 45 mA |
| Standby Power | 0.5 W |
| Transmit Power Consumption, Including Handset | Listed as 0.5 mA in the brochure |
| Transmit Power | 6 W |
| Sleep-Mode Current | 18 mA |
| Sleep-Mode Power | 0.2 W |
| Standby Measurement Condition | Battery charged |
Specification note: The source brochure lists the transmit current as 0.5 mA alongside a power consumption of 6 W. These values appear inconsistent; confirm the transmit-current figure with the manufacturer before using it for electrical design or power budgeting. The table preserves the brochure’s published value rather than substituting an unverified figure.
| Interface | Details |
|---|---|
| Iridium Antenna | Fixed cable terminating in TNC female |
| GPS Antenna | Fixed cable terminating in SMA female |
| DC Power | Four-way MicroFit connector |
| Privacy Handset Port | Four-pole 3.5 mm jack |

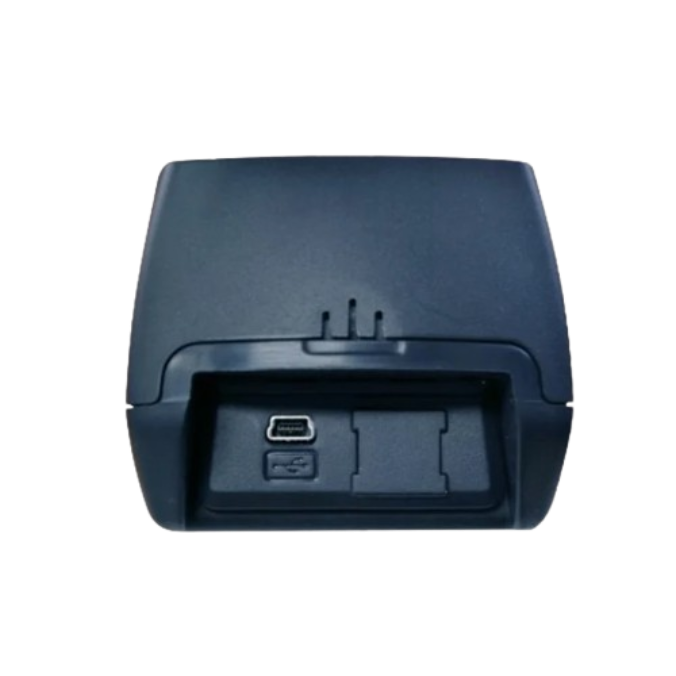

| Data Port | USB Mini connector at the base of the dock |
| Bluetooth Voice | Integrated Bluetooth |
| Bluetooth Indicator | Blue/orange |
| Mute/Ringer Indicator | Red |
| Backlight | White LED |
| Handset Release | Button at the top of the cradle; no LED |
These connections provide the physical interfaces for power, antennas, data, and compatible accessories. Verify connector compatibility before ordering additional cables or peripherals.
| Specification | Unit Only | Packaged |
|---|---|---|
| Dimensions in Millimetres | 200 × 75 × 65 mm | 325 × 140 × 88 mm |
| Dimensions in Inches | 7.9 × 3.0 × 2.6 in | 12.8 × 5.5 × 3.5 in |
| Weight in Kilograms | 0.32 kg | 1.3 kg |
| Weight in Pounds | 0.7 lb | 2.86 lb |
The compact dimensions of the dock make it suitable for installations where available mounting space is limited. Packaged dimensions and weight are useful for shipping and storage planning.
| Specification | Details |
|---|---|
| Operating Temperature | -30°C to +70°C |
| Operating Temperature in Fahrenheit | -22°F to +158°F |
| Storage Temperature | -40°C to +85°C |
| Storage Temperature in Fahrenheit | -40°F to +185°F |
| Operating Humidity | Less than 93% RH |
Installers should confirm that the selected location remains within the manufacturer’s operating limits and that the antenna and power arrangements are suitable for the environment.
The manufacturer’s brochure lists the following certifications and compliance categories:
The brochure also states that independent aeronautical certification must be obtained before installation in an aircraft. The listed compliance categories should not be interpreted as independent approval for every possible installation environment.
According to the manufacturer’s brochure, the standard Beam IntelliDOCK 9555 package includes:
The optional privacy handset, Bluetooth headset, external antennas, and antenna cables are listed separately as accessories and should not be assumed to be included in the standard package.
The manufacturer’s brochure identifies several accessories for the IntelliDOCK 9555.
| Part Number | Accessory |
|---|---|
| RST710 | Beam Mast Antenna |
| RST714 | Beam Whip Antenna |
| RST715 | Magnetic Antenna |
| RST720 | Bolt-Mount Antenna |
| RST725 | Bluetooth Headset, including car charger |
| RST755 | Basic Privacy Handset |
| RST932 | Antenna Cable, 6 m / 18 ft |
| RST933 | Antenna Cable, 12 m / 36 ft |
These accessories can help adapt the installation to different mounting and communication requirements. Confirm current availability, connector compatibility, and suitability for the intended environment before ordering.
Before purchasing the IntelliDOCK 9555, users should consider the following points.
Handset compatibility: The dock is designed for the Iridium 9555. Compatibility with other Iridium handset models should not be assumed.
Power supply: Confirm that the installation provides a suitable 9–32 V DC supply or that the appropriate AC power pack is available.
Antenna configuration: Select an appropriate antenna and cable arrangement for the installation location.
Hands-free requirements: Determine whether a compatible Bluetooth headset or optional privacy handset is required.
Mounting location: Ensure that there is sufficient space for the dock and convenient access to the handset-release button.
Environmental limits: Check the specified operating temperature, storage temperature, and humidity limits.
Aircraft installations: Obtain the independent aeronautical certification required before installation in an aircraft.
These checks can help ensure that the IntelliDOCK 9555 is appropriate for the intended application.
The Beam IntelliDOCK 9555 (9555ID) is a practical accessory for users who want to dock, charge, and use an Iridium 9555 satellite phone in a more organized installation.
Its secure cradle, integrated antenna and power connections, built-in Bluetooth, audible ringer, USB data interface, optional privacy handset support, and flexible mounting options make it suitable for maritime, transportation, 4WD, and fixed-site applications.
