In environments where reliable communications are essential, having a broadband terminal that can be deployed quickly, operated easily, and withstand demanding conditions can make a significant difference. The IP NEO C is an ultra-portable L-band broadband terminal designed to provide broadband data, voice, Push-to-Talk (PTT), and networking capabilities in a compact and rugged platform.
According to the supplied product factsheet, IP NEO C combines a quick-start design with IP-rated and MIL-tested hardware, PoE connectivity, integrated battery power, GNSS support, and web- and smartphone-based management. The terminal is designed for situations where users need to establish a communications link quickly while maintaining a relatively simple deployment process.
VSATplus offers the IP NEO C for customers looking for portable L-band broadband connectivity. If you need an IP NEO C for field communications, remote operations, temporary connectivity, or other professional applications, you can order the product from VSATplus.
The IP NEO C is an ultra-portable L-band broadband terminal designed around the principle of rapid deployment. Its quick-start design is intended to provide an immediate communications link when time is important.
Rather than requiring a large and complex fixed installation, the IP NEO C is packaged as a compact terminal weighing approximately 2.1 kg including its battery. It incorporates its own rechargeable lithium-ion battery, multiple power options, Ethernet interfaces, Wi-Fi, GNSS, and network-management functionality.
The factsheet specifically highlights three aspects of the product:
These characteristics position IP NEO C as a communications terminal for users who need portability without giving up professional networking and voice capabilities.
Portability is one of the defining characteristics of the IP NEO C. With dimensions of 225 × 225 × 61.5 mm and a weight of approximately 2.1 kg including the battery, it can be transported to locations where larger communications systems may not be practical.
The terminal is designed for professional users who may need to establish communications in different locations rather than operate from a permanently installed communications room.
The IP NEO C provides data capability of up to 1024 kbps receive and transmit at elevations above 5°, according to the product factsheet.
The available throughput makes the terminal suitable for a range of IP-based communications requirements, depending on the service plan, network conditions, application requirements, and operational environment.
For organizations using IP-based applications in remote locations, having both transmit and receive capability at the stated rate can support more than basic messaging or low-bandwidth telemetry.
In addition to data connectivity, the IP NEO C supports standard VoIP.
The terminal also incorporates an embedded SIP server, providing an integrated architecture for SIP-based voice communications.
This means the terminal can form part of a voice communications setup in addition to providing broadband IP connectivity.
For organizations operating in remote environments, integrating voice and data into one terminal can simplify the communications equipment required at the operational site.
The IP NEO C supports PPT Push-To-Talk according to the supplied factsheet.
Push-to-Talk communications can be useful where users need straightforward group or operational communications without relying solely on conventional cellular networks.
This capability can be particularly relevant to field teams and organizations where fast voice communication is an important part of daily operations.
The IP NEO C is designed with environmental durability in mind.
The product factsheet states that the terminal is IP55 compliant for water and dust protection. Its specified operational temperature range is -21°C to +55°C ambient, while the storage temperature range is -21°C to +50°C.
The factsheet also describes the hardware as MIL-tested and designed to withstand dust, rain, heat, vibration, and salt fog.
These characteristics are important when equipment needs to operate outside conventional office environments.
Potential deployment environments include remote field locations, temporary operational sites, outdoor installations, and other locations where equipment can be exposed to environmental conditions.
Users should nevertheless operate the equipment within the manufacturer's specified environmental limits.
One of the significant features of IP NEO C is its integrated rechargeable lithium-ion battery.
The battery has a nominal voltage of 10.8 V and a capacity of 6.9 Ah. According to the factsheet, it provides:
The specified battery charging temperature is 0°C to 45°C.
Battery operation can be particularly valuable for temporary deployments and mobile users because the terminal does not have to rely exclusively on a permanent mains electricity connection.
Actual runtime depends on operating conditions, traffic, network usage, environmental conditions, and other factors.
The IP NEO C supports several power configurations.
The terminal accepts a 12–24 VDC input, with a maximum specified input range of 10.8–33.6 VDC. It also supports PoE input using IEEE 802.3bt Type 3 Class 6 through an RJ45 connection.
The terminal also provides PoE output using 802.3at Type 1 Class 2 through RJ45. This can be used to supply an appropriate connected IP device, such as the supported IP handset configuration.
The supplied package includes an AC/DC power supply, a European power cord, an EU-to-UK converter, and a 12/24 V DC cable with open-ended connections.
The IP NEO C includes an integrated WLAN access point supporting:
802.11 b/g/n/ac
This allows compatible wireless devices to connect to the terminal without requiring a separate wireless access point.
For wired networking, the terminal includes two RJ45 interfaces:
This combination provides flexibility when deploying the IP NEO C as part of a small remote communications network.
The IP NEO C includes a number of network-management functions that allow it to operate as more than simply a satellite communications modem.
The factsheet lists:
These functions provide administrators with tools for configuring the terminal and managing connected network equipment.
The inclusion of NAT routing and DHCP can simplify the process of connecting local network devices to the satellite broadband service.
Remote management is also specified, which can be useful for organizations managing communications equipment across multiple locations.
The IP NEO C can be controlled through the Space42 Connect App, which is available for Android and iOS.
The factsheet states that the application allows users to control their IP NEO using a smartphone.
This mobile management capability complements the terminal's web interface and can simplify configuration and operational control when the user is working away from a conventional computer.
The IP NEO C supports multiple global navigation satellite systems:
Multi-system GNSS support provides positioning capabilities across several satellite navigation constellations. This can be useful in field operations where location information is part of the communications workflow.
The IP NEO C operates across specified L-band frequency ranges.
The listed transmit ranges are:
1626.5–1660.5 MHz
and
1668–1675 MHz
The listed receive range is:
1518.0–1559.0 MHz
These are important technical specifications for organizations evaluating the terminal for particular satellite-network or communications requirements.
The product factsheet emphasizes simple deployment, including PoE cabling and an intuitive web/app interface.
Power over Ethernet can simplify equipment installation because compatible network equipment can receive power and data through an Ethernet connection rather than requiring separate power arrangements at every connected device.
The package also includes PoE cables with screw connectors in 4 m and 5 m lengths, according to the supplied documentation.
For temporary or field deployments, this can help reduce the number of separate components required during setup.
The following table summarizes the technical information provided in the official factsheet supplied for this article.
| Category | Specification |
|---|---|
| Product | IP NEO C |
| Product type | Ultra-portable L-band broadband terminal |
| Data capability | Up to 1024 kbps Rx/Tx at >5° elevation |
| Voice | Standard VoIP |
| SIP | Embedded SIP Server |
| Push-to-Talk | PPT Push-To-Talk |
| Transmit frequency | 1626.5–1660.5 MHz and 1668–1675 MHz |
| Receive frequency | 1518.0–1559.0 MHz |
| GNSS | GPS, Galileo, BeiDou, GLONASS |
| WLAN | 802.11 b/g/n/ac |
| Ethernet | 1 × RJ45 PoE input |
| Ethernet/PoE output | 1 × RJ45 PoE output for IP handset |
| Management | Web interface |
| Mobile application | Space42 Connect App |
| Mobile platforms | Android / iOS |
| Router | NAT router |
| DHCP | Supported |
| PPPoE | Supported |
| Remote management | Supported |
| Administrator control | Password protected |
| Operating temperature | -21°C to +55°C ambient |
| Storage temperature | -21°C to +50°C |
| Water/dust protection | IP55 |
| Dimensions | 225 × 225 × 61.5 mm |
| Weight | 2.1 kg including battery |
| DC input | 12–24 VDC |
| Maximum DC range | 10.8–33.6 VDC |
| PoE input | 802.3bt Type 3 Class 6 |
| PoE output | 802.3at Type 1 Class 2 |
| Typical standby consumption | 4.5 W |
| Typical transmit consumption | 22 W |
| Maximum charging consumption | 75 W |
| AC/DC supply input | 100–240 VAC, 47–63 Hz |
| AC/DC supply rating | 64 W |
| AC/DC output | 19 VDC |
| Battery | Rechargeable Lithium-ion |
| Battery voltage | 10.8 V nominal |
| Battery capacity | 6.9 Ah |
| Standby time | Up to 38 hours |
| Receive runtime | Up to 5 hours @ 1024 kbps |
| Transmit runtime | Up to 3 hours @ 1024 kbps |
| Recharge time | <3 hours, 0–100% |
| Charging temperature | 0°C to 45°C |
| Approvals | CE, RED, RoHS, WEEE, FCC, UL, RCM |
| Thuraya approval | Thuraya Type Approval |
The supplied factsheet specifies a comprehensive package intended to support deployment of the terminal.
The package includes:
This collection of components provides users with the equipment needed to configure the terminal for different deployment scenarios.
Based on the product information in the factsheet, several characteristics stand out as practical advantages.
The quick-start design is specifically intended to provide an immediate link when timing matters.
At approximately 2.1 kg including its battery, the terminal is designed with portability in mind.
The built-in battery allows the terminal to operate without continuously relying on an external mains connection.
Users can utilize Wi-Fi, Ethernet, DC power and PoE depending on the deployment configuration.
Support for broadband IP data, VoIP, an embedded SIP server and Push-to-Talk gives the terminal multiple communications functions.
IP55 protection and the stated operating temperature range make the equipment suitable for a range of demanding outdoor and field environments.
The Space42 Connect App provides an additional method of controlling the terminal using Android or iOS devices.
The IP NEO C can be considered for professional situations where portable broadband connectivity is required.
Field teams working away from established communications infrastructure can use a portable L-band terminal to establish IP connectivity.
Organizations that need an additional communications option for temporary or contingency situations can deploy portable satellite broadband equipment when conventional infrastructure is unavailable or unsuitable.
Engineering, technical, survey, inspection and other mobile teams can benefit from equipment that can be transported between operational locations.
Because the terminal supports standard VoIP and an embedded SIP server, it can support IP-based voice communications alongside data connectivity.
The integrated battery and multiple power options make the terminal suitable for temporary deployments where permanent communications infrastructure is not available.
The IP55 rating and stated environmental specifications make it appropriate for consideration in outdoor and demanding field applications, subject to the specified operating limits.
Power management is particularly important for portable communications equipment.
The IP NEO C has a stated typical power consumption of 4.5 W in standby and 22 W during transmission. During charging, the specified maximum consumption is 75 W.
The included AC/DC power supply accepts 100–240 VAC at 47–63 Hz and provides 19 VDC, with a stated 64 W rating.
The combination of an internal battery, DC input and PoE support gives deployment teams multiple ways to power the terminal depending on their operational environment.

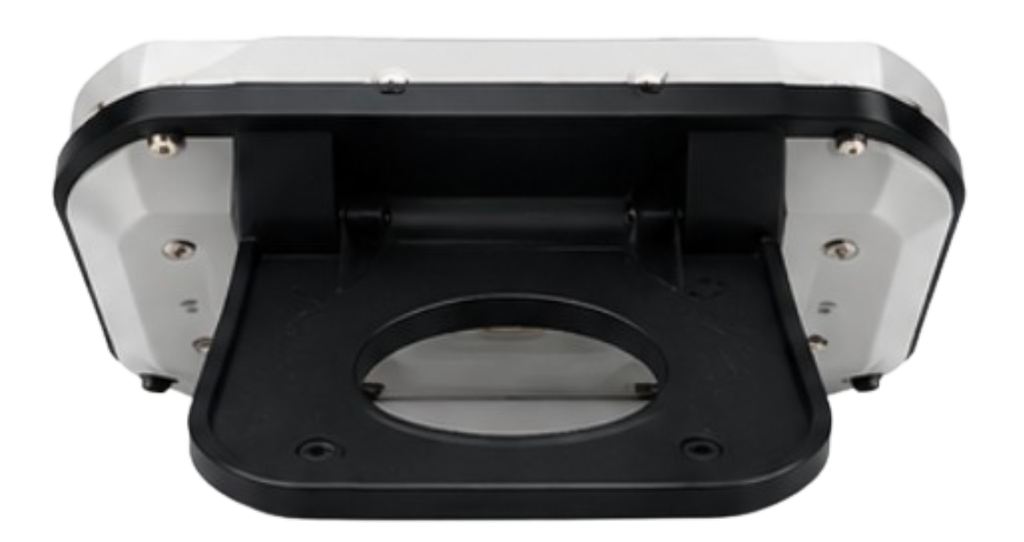

The terminal includes mounting provisions intended for different installation scenarios.
The accessories section identifies a pole mount, while the interface/accessory information also lists VESA 50 for fixed mounting.
This provides flexibility for users who may need either a temporary portable configuration or a more permanent mounting arrangement.
The IP NEO C supports a broad selection of interface languages:
English, Arabic, French, Portuguese, Spanish, Russian, Japanese and Chinese.
The listed regulatory and product approvals include:
These approvals are relevant to organizations assessing the terminal for deployment and procurement requirements in different markets.
The IP NEO C brings together portable L-band broadband connectivity, integrated battery operation, Wi-Fi, Ethernet, VoIP, Push-to-Talk, GNSS, network management and rugged environmental protection in a compact terminal.
Its combination of up to 1024 kbps data capability, integrated SIP functionality, PoE support, smartphone management, IP55 protection and multiple power options makes it a practical platform for professional users who require portable communications in locations where conventional connectivity may not be available.
VSATplus offers the IP NEO C, providing customers with an option for deploying this ultra-portable L-band broadband terminal for remote connectivity, field communications, temporary operations and other professional applications.
If you are looking for a portable broadband terminal with integrated battery power and professional IP networking features, you can order the IP NEO C from VSATplus.
