As satellite communication networks continue to expand across enterprise, government, defense, maritime, and mobility sectors, there is an increasing demand for RF equipment that combines high performance, simplified installation, and intelligent management. The TerraSat IBUC 2e Ku-Band has been engineered to meet these requirements by delivering professional-grade RF performance while significantly reducing power consumption and installation complexity.

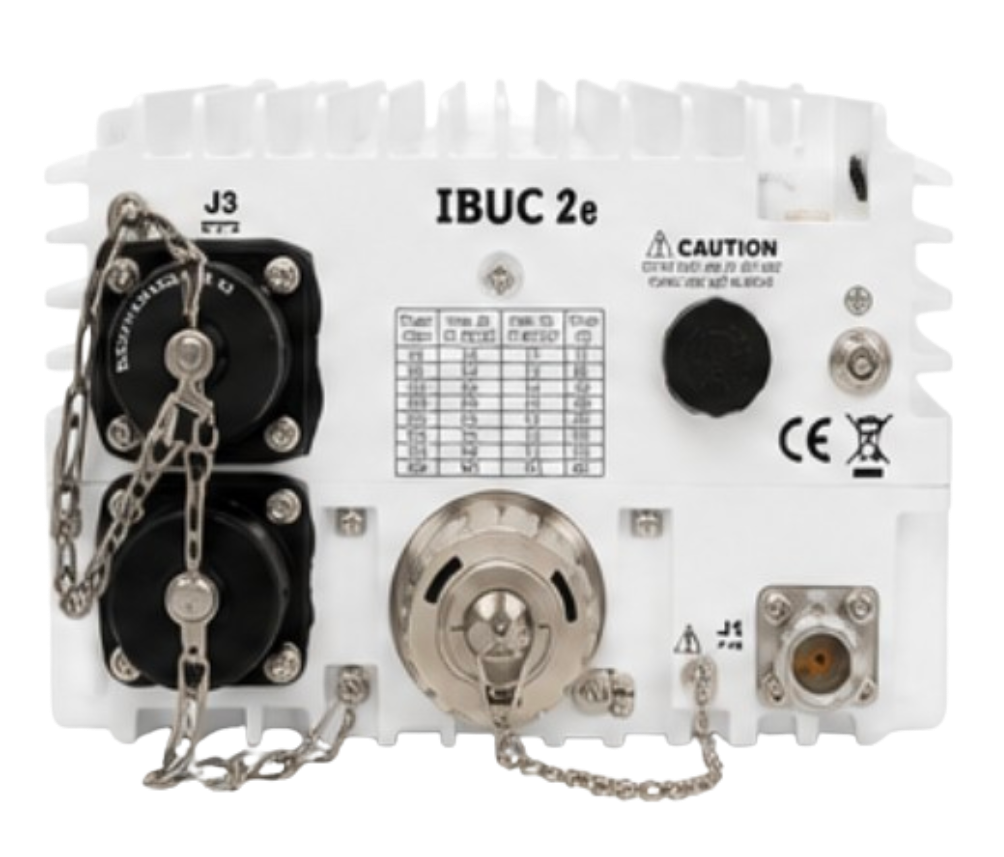

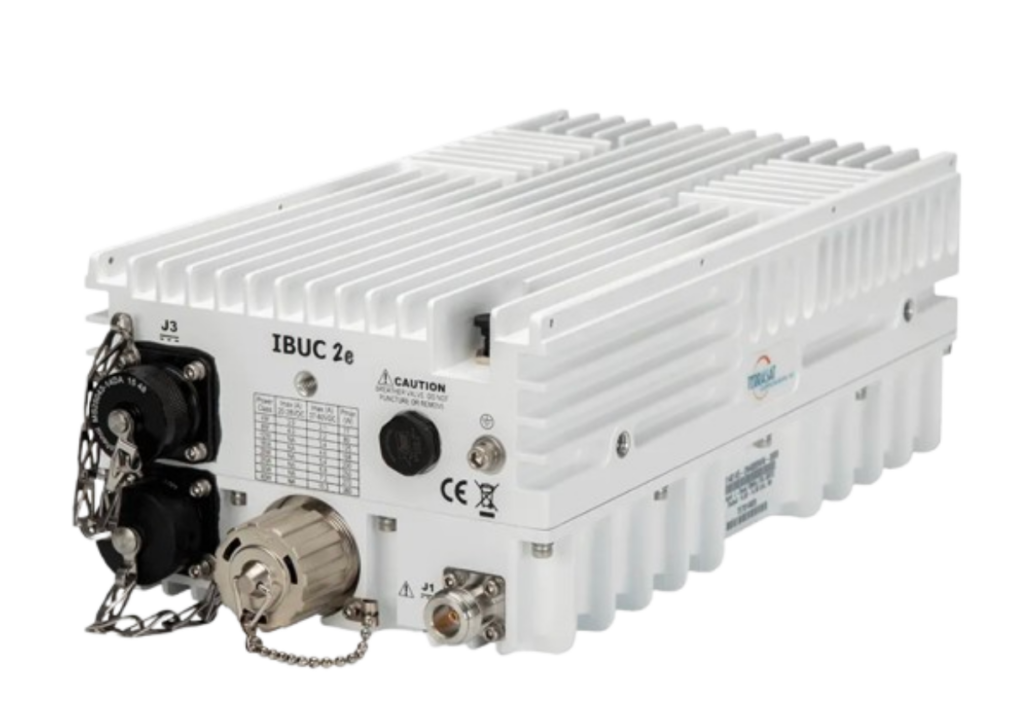

Available in 8W and 16W output power models, the TerraSat IBUC 2e is an intelligent outdoor Block Upconverter (BUC) that is powered directly through the IFL coaxial cable, eliminating the need for an external DC power connector. This innovative design reduces installation costs, minimizes cable requirements, and makes the IBUC 2e an ideal solution for compact VSAT terminals, transportable systems, and remote satellite communication sites.
Like every TerraSat Intelligent BUC, the IBUC 2e incorporates advanced monitor and control capabilities, embedded web management, SNMP support, automatic gain control (AGC), automatic level control (ALC), and optional Cyber Hardened security, making it one of the most feature-rich BUCs available in its power class.
Available through VSATplus, the TerraSat IBUC 2e provides operators with a reliable, efficient, and intelligent RF uplink solution for modern satellite communication networks.
The IBUC 2e is specifically designed for applications where minimizing power consumption and simplifying installation are critical. Unlike traditional BUCs that require separate power connections, the IBUC 2e receives both RF and DC power through the transmit coaxial cable (Power-over-Coax), reducing hardware complexity and deployment time.
The system supports three Ku-Band frequency plans:
This flexibility allows network designers to deploy the same hardware platform across multiple satellite systems and regional frequency allocations.
The TerraSat IBUC 2e combines intelligent RF technology with advanced management capabilities.
The TerraSat IBUC family is recognized for combining RF performance with intelligent management. According to the datasheet, every IBUC undergoes individual temperature testing to ensure consistent linearity and maximum usable output power.
Key advantages include:
These features make the IBUC 2e an excellent choice for operators seeking long-term reliability and low maintenance costs.
One of the standout capabilities of the IBUC 2e is its advanced monitor and control platform.
Standard management features include:
Operators can remotely monitor performance, configure operating parameters, adjust attenuation, and receive alarms from virtually anywhere on the network.
For organizations requiring enhanced cybersecurity, TerraSat offers an optional Cyber Hardened version.
Additional features include:
These capabilities make the Cyber Hardened model suitable for government, defense, and critical infrastructure deployments.
The TerraSat IBUC 2e supports three different Ku-Band frequency plans.
| Frequency Plan | RF Frequency | IF Frequency |
|---|---|---|
| Standard Ku-Band | 14.00–14.50 GHz | 950–1450 MHz |
| Full Ku-Band | 13.75–14.50 GHz | 950–1700 MHz |
| Low Ku-Band | 12.75–13.25 GHz | 950–1450 MHz |
The IBUC 2e is designed to deliver consistent and stable RF performance for both single-carrier and multicarrier applications.
| Specification | 8W Model | 16W Model |
|---|---|---|
| Output Power (P1dB) | +39 dBm | +42 dBm |
| Small Signal Gain | 70 dB | 73 dB |
| Variable Attenuator | 30 dB | 30 dB |
| Gain Flatness | 1–3 dB | 1–4 dB |
| Output VSWR | 1.5:1 Max | 1.5:1 Max |
| IMD3 | -25 dBc Max | -25 dBc Max |
| Output Level Stability | ±0.5 dB | ±0.5 dB |
The low-energy architecture of the IBUC 2e significantly reduces power requirements.
| Specification | 8W | 16W |
|---|---|---|
| Input Voltage | 18–75 VDC | 37–60 VDC |
| Power Consumption | 65 W | 120 W |
| Power Method | DC via Coax | DC via Coax |
This design eliminates the need for additional outdoor power cabling, simplifying installation and reducing deployment costs.

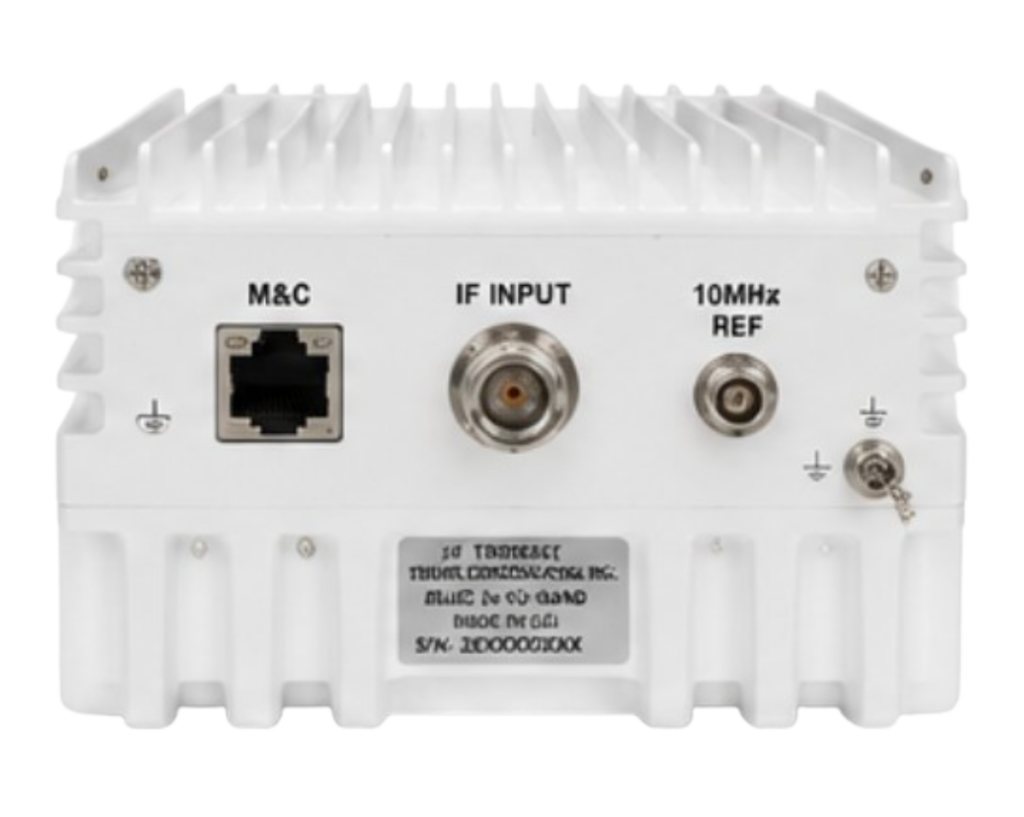

The BUC supports both internal and external reference operation.
| Feature | Specification |
|---|---|
| External Reference | 10 MHz (-12 to +5 dBm) |
| Internal Reference | Optional Auto-Detect |
| Local Oscillator (Band 1) | 13050 MHz |
| Local Oscillator (Band 2) | 12800 MHz |
| Local Oscillator (Band 3) | 11800 MHz |

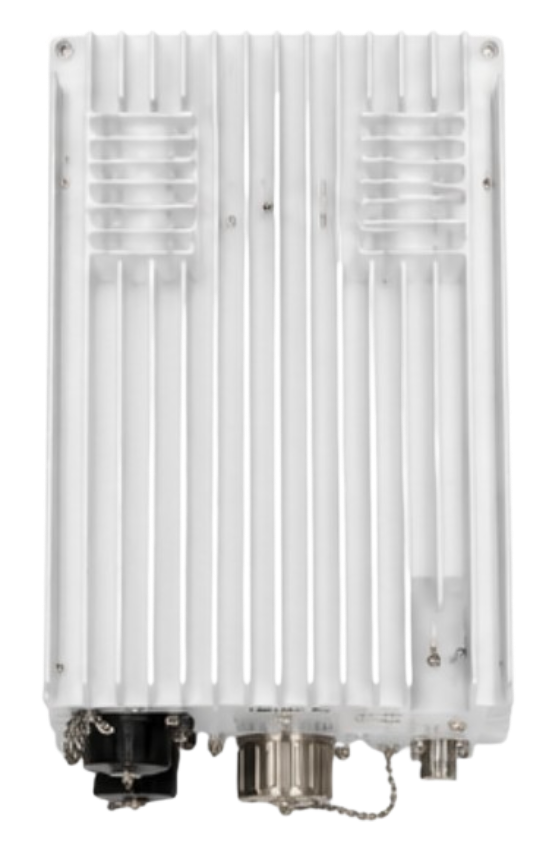

Built for outdoor operation, the IBUC 2e performs reliably in demanding environments.
| Specification | Value |
|---|---|
| Operating Temperature | -40°C to +60°C |
| Humidity | 100% Condensing |
| Maximum Altitude | 10,000 ft (3,000 m) |
| Model | Dimensions | Weight |
|---|---|---|
| 8W | 10.5 × 6 × 3.8 in (267 × 152 × 97 mm) | 9.3 lbs (4.2 kg) |
| 16W | 10.5 × 6 × 5.2 in (267 × 152 × 132 mm) | 10.8 lbs (4.9 kg) |
The TerraSat IBUC 2e is suitable for a wide range of satellite communication applications, including:
Organizations deploying the TerraSat IBUC 2e benefit from:
VSATplus is a trusted supplier of professional satellite communication equipment, offering genuine TerraSat products backed by expert technical support and worldwide delivery.
When purchasing the TerraSat IBUC 2e Ku-Band from VSATplus, customers benefit from:
Whether you are upgrading an existing VSAT network, deploying a transportable terminal, or building a new satellite communication infrastructure, VSATplus can help you select the ideal TerraSat Intelligent BUC for your project.
The TerraSat IBUC 2e Ku-Band (8W & 16W) combines intelligent RF performance, simplified Power-over-Coax installation, and advanced management features into a compact and reliable outdoor Block Upconverter. With support for Standard, Full, and Low Ku-Band frequency plans, embedded web-based management, optional Cyber Hardened security, and professional-grade RF specifications, it is an excellent solution for enterprise, government, defense, maritime, and mobility SATCOM applications.
Available now from VSATplus, the TerraSat IBUC 2e delivers dependable performance, intelligent monitoring, and long-term reliability, making it a valuable addition to any modern satellite communication network.
