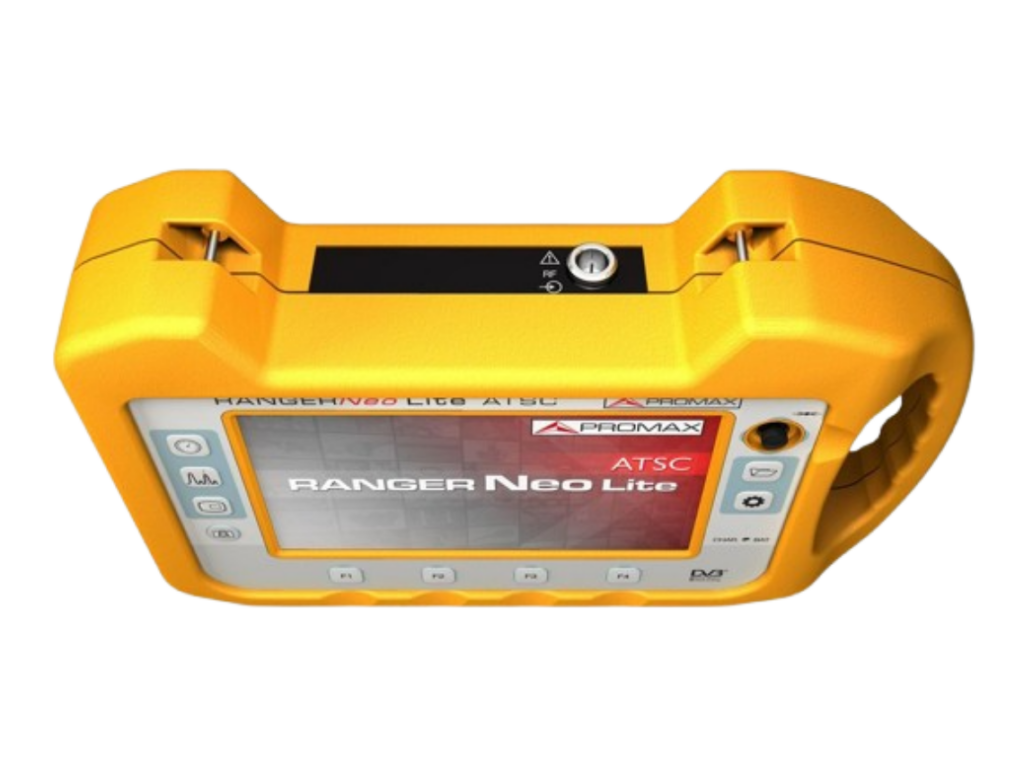

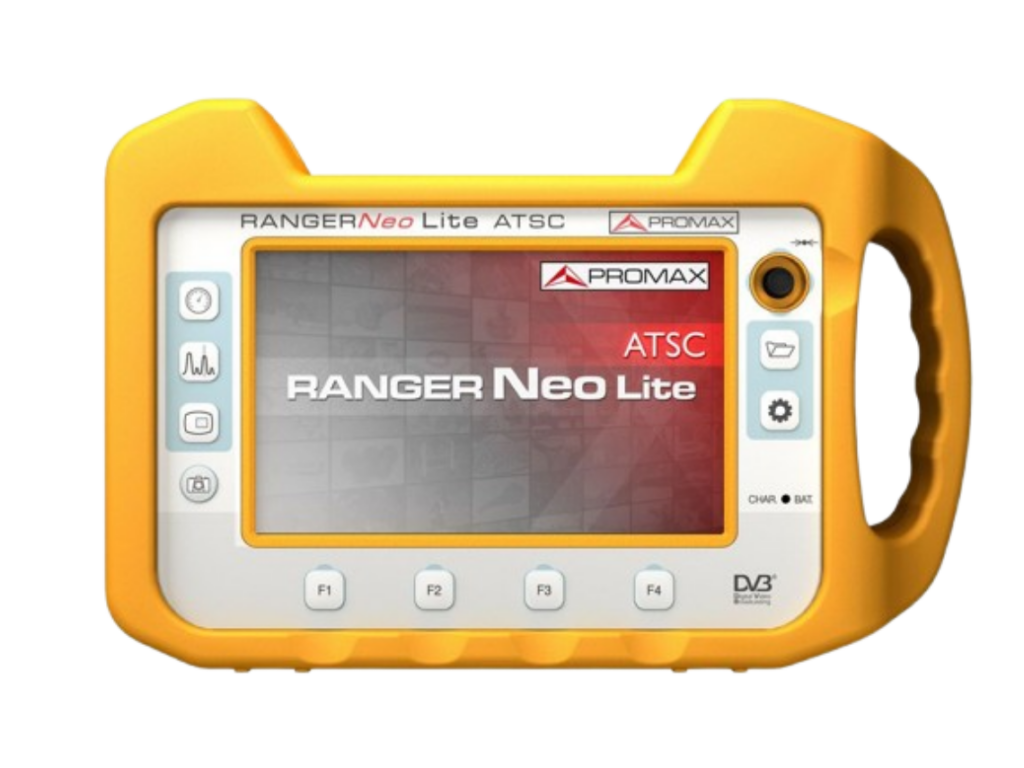

As broadcast technologies continue to evolve, technicians, broadcasters, cable operators, satellite engineers, and VSAT professionals require test equipment that can keep pace with modern transmission standards while remaining portable and easy to operate. The PROMAX RANGERNeo Lite ATSC has been developed specifically to address these needs, providing professional-grade television and RF spectrum analysis in a compact handheld instrument.
Supporting frequencies from 5 MHz to 2500 MHz, the RANGERNeo Lite ATSC is designed for engineers working across terrestrial television, cable television, satellite communications, IPTV networks, optical fiber distribution systems, and wireless infrastructures. The analyzer combines measurement precision with an intuitive touchscreen interface, allowing technicians to perform complex field measurements quickly and accurately.
Available from VSATplus, the PROMAX RANGERNeo Lite ATSC is an ideal solution for companies seeking a reliable analyzer for installation, maintenance, troubleshooting, and preventive monitoring of RF and broadcast networks.
Unlike conventional field strength meters, the RANGERNeo Lite ATSC combines multiple professional tools into a single rugged handheld device.
It functions as:
Its lightweight construction—less than 5 pounds (approximately 2.2 kg)—makes it easy to carry during long field operations while maintaining professional measurement accuracy.
Modern television systems have transitioned far beyond traditional analog transmissions. Today’s engineers must work with:
The RANGERNeo Lite ATSC supports these technologies, making it a versatile instrument for North American broadcast environments and hybrid television infrastructures. It also supports MPEG-2, MPEG-4/H.264, and HEVC/H.265 video codecs, as well as Dolby Digital, Dolby Digital Plus, AAC, and MPEG audio decoding.
One of the strongest capabilities of the RANGERNeo Lite ATSC is its integrated spectrum analyzer.
The analyzer offers:
The analyzer enables technicians to detect interference, verify signal quality, and accurately align satellite antennas with minimal effort.
A distinctive feature of the RANGERNeo series is its Triple Split Display.
This interface allows engineers to view:
simultaneously.
This visualization makes it significantly easier to identify intermittent interference, fluctuating carriers, and unstable transmissions compared with traditional single-trace analyzers.
As UHD broadcasting becomes increasingly common, compatibility with modern compression standards is essential.
The RANGERNeo Lite ATSC supports:
The integrated 4K Frame Grabber enables technicians to capture decoded UHD video frames directly from the transport stream, providing rapid verification of broadcast content without requiring additional equipment.
PROMAX designed the analyzer for intuitive field operation.
The high-resolution 7-inch color touchscreen allows users to:
Traditional control buttons remain available, giving technicians the flexibility to operate the analyzer even while wearing gloves or working in demanding outdoor environments.
Wireless interference has become an important factor in modern broadcast and communication environments.
The RANGERNeo Lite ATSC includes integrated analysis for 2.4 GHz WiFi networks, enabling users to monitor nearby access points, identify channel occupancy, and view key parameters such as SSID, RSSI, SNR, and security information. This allows technicians to detect wireless congestion and interference that could affect system performance.
The analyzer provides comprehensive RF quality measurements, including:
These measurements help engineers evaluate transmission quality and quickly identify faults within television, satellite, or cable networks.
| Specification | Details |
|---|---|
| Product | PROMAX RANGERNeo Lite ATSC |
| Frequency Range | 5 MHz – 2500 MHz |
| Display | 7-inch Color Touchscreen |
| Weight | Approx. 2.2 kg (Less than 5 lbs) |
| Battery | More than 2 hours |
| Video Codecs | MPEG-2, MPEG-4/H.264, HEVC H.265 |
| Audio Codecs | MPEG, AAC, HE-AAC, Dolby Digital, Dolby Digital Plus |
| Spectrum Resolution | 100 kHz, 200 kHz, 1 MHz |
| Storage | 6 GB Internal Memory |
| USB Ports | 2 × USB Type-A |
| HDMI Output | Yes |
| RF Input | Universal 50/75 Ω |
| Ethernet | Supported |
| Satellite Support | DVB-S, DVB-S2, DSS |
| Cable Support | DVB-C, QAM Annex B |
| Terrestrial Support | ATSC |
| WiFi Analysis | 2.4 GHz |
| 4K Detection | Yes |
| HEVC Support | Yes |
The PROMAX RANGERNeo Lite ATSC is more than a traditional TV signal meter—it is a complete field analyzer designed to simplify installation, maintenance, and troubleshooting tasks for modern RF and broadcast infrastructures. The analyzer integrates multiple measurement modes into a single portable instrument, enabling technicians to diagnose signal issues quickly and accurately without carrying multiple test devices.
One of the key advantages of the RANGERNeo Lite ATSC is its ability to display measurement results in real time while maintaining a highly intuitive user interface. Engineers can instantly verify signal strength, modulation quality, and transmission integrity during antenna alignment or network maintenance.
The RANGERNeo Lite ATSC has been engineered specifically for digital television professionals. It supports comprehensive analysis of terrestrial, satellite, and cable broadcasting systems, making it suitable for a wide range of installation and maintenance applications.
Supported broadcast standards include:
With integrated digital demodulation, technicians can evaluate transmission quality using industry-standard measurements without additional equipment.
Accurate satellite alignment is critical for achieving maximum link performance. The RANGERNeo Lite ATSC provides all the tools necessary for professional satellite antenna installation.
The analyzer allows engineers to:
Real-time spectrum display enables installers to fine-tune antenna positioning quickly, reducing installation time while improving overall system performance.
Cable television operators can use the RANGERNeo Lite ATSC for installation, troubleshooting, and preventive maintenance of HFC (Hybrid Fiber-Coaxial) networks.
Typical measurements include:
These capabilities help identify network impairments before they affect subscriber service.
Fast spectrum scanning is essential when locating interference or intermittent transmission issues.
The RANGERNeo Lite ATSC offers:
These tools allow engineers to identify unwanted emissions, adjacent-channel interference, and unstable carriers efficiently.
The analyzer includes integrated decoding capabilities for modern television services.
Supported video formats include:
Supported audio formats include:
The built-in decoder enables technicians to verify both transport quality and content delivery without requiring an external receiver.
PROMAX designed the RANGERNeo Lite with field engineers in mind.
The large 7-inch color touchscreen provides an intuitive interface for navigating menus, selecting measurements, and viewing spectrum data. Frequently used functions are accessible through dedicated physical buttons, ensuring reliable operation even in challenging outdoor conditions or when wearing gloves.

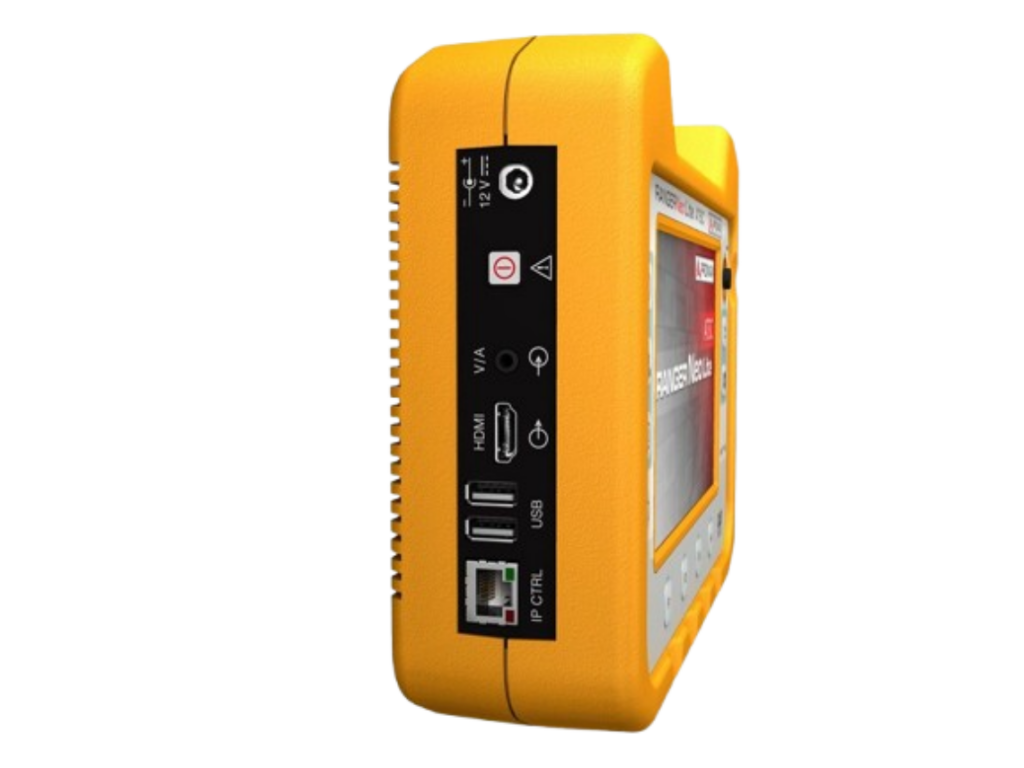

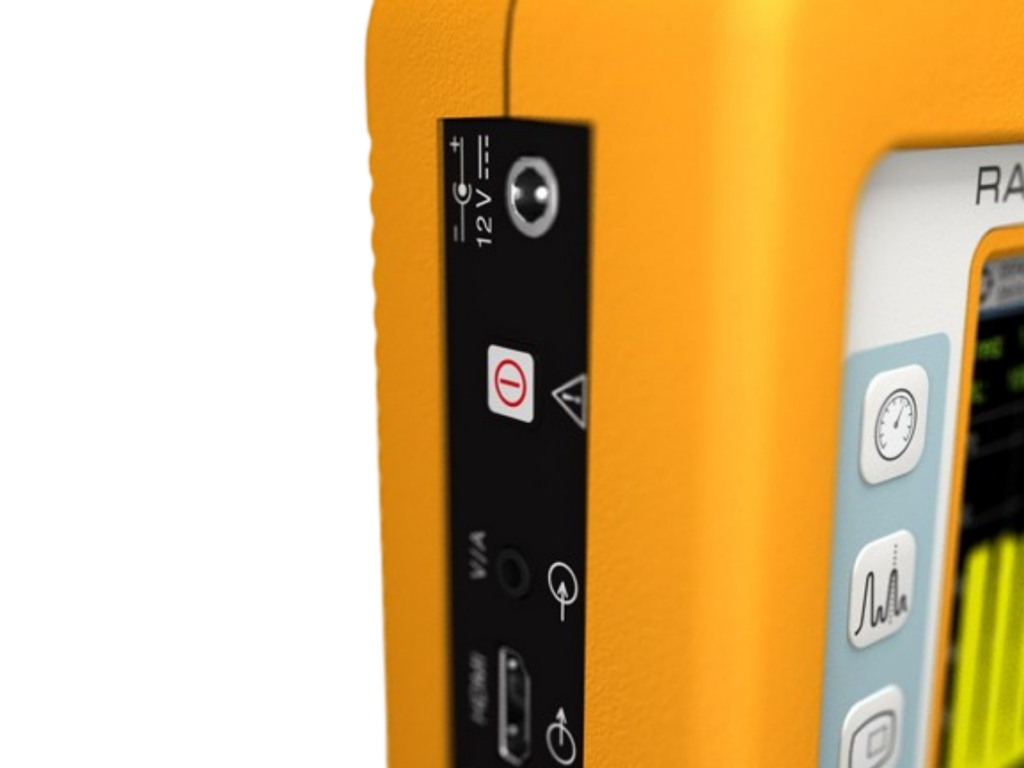

The analyzer offers multiple connectivity options for exporting reports, updating firmware, and integrating with external devices.
Key connectivity features include:
These interfaces allow technicians to save measurements, transfer reports, capture screenshots, and perform software updates efficiently.
Field instruments must withstand demanding environments.
The RANGERNeo Lite features:
With a weight of less than 5 pounds, the analyzer is comfortable to carry during extended installation or maintenance tasks.
The PROMAX RANGERNeo Lite ATSC is suitable for a broad range of professional applications, including:
Organizations using the RANGERNeo Lite benefit from:
| Feature | PROMAX RANGERNeo Lite ATSC |
|---|---|
| Frequency Range | 5 MHz – 2500 MHz |
| Spectrum Analyzer | ✔ |
| ATSC Analysis | ✔ |
| DVB-S / DVB-S2 | ✔ |
| DVB-C / QAM | ✔ |
| HEVC H.265 | ✔ |
| MPEG-2 / MPEG-4 | ✔ |
| UHD / 4K Detection | ✔ |
| WiFi Analysis | 2.4 GHz |
| Touchscreen Display | 7” |
| HDMI Output | ✔ |
| USB Connectivity | 2 × USB |
| Internal Memory | 6 GB |
| Battery Operation | >2 Hours |
| Weight | <5 lbs |
As a trusted supplier of professional satellite communication and broadcast equipment, VSATplus offers genuine PROMAX RANGERNeo Lite ATSC analyzers backed by expert technical support and worldwide delivery.
When you purchase from VSATplus, you benefit from:
Whether you are installing ATSC transmitters, aligning VSAT terminals, maintaining cable television networks, or troubleshooting RF systems, the PROMAX RANGERNeo Lite ATSC provides the accuracy, portability, and reliability required for professional field operations.
