Reliable communication is essential for maritime operations, transportation, remote facilities, and other environments where conventional cellular networks may not be available. Satellite phones provide an important communication link in these situations, but professional users often need more than a standalone handset. They may require a secure docking station, convenient charging, organized antenna connections, data connectivity, and flexible mounting options.
The Beam LiteDOCK Extreme EXTRMLD is designed to meet these requirements. Manufactured by Beam Communications, this compact docking station is specifically designed for the Iridium Extreme 9575 satellite phone. It provides a secure mounting solution while integrating the handset’s antenna connection, charging capability, USB data interface, and support for an external GPS antenna.
Designed for land and maritime applications, the LiteDOCK Extreme combines practical installation features with access to Iridium satellite communication services. Its slimline construction and universal mounting bracket make it suitable for a range of professional installations, including vessels, transport vehicles, remote facilities, and fixed communication sites.
For organizations seeking satellite phone accessories and communication equipment, VSATPlus offers a convenient source for the Beam LiteDOCK Extreme, helping customers find suitable solutions for their satellite communication requirements.

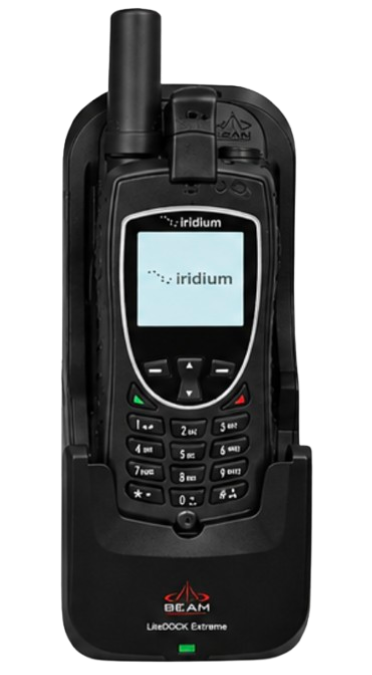

The Beam LiteDOCK Extreme is a dedicated docking station that securely holds the Iridium Extreme 9575 satellite phone and provides convenient access to its communication capabilities.
The docking cradle uses a click-to-lock mechanism that allows the handset to be inserted securely and removed by pressing a release button. This design makes it easier for users to keep the satellite phone connected and ready for use while retaining the ability to remove it when necessary.
The dock integrates several important functions into one compact unit:
The LiteDOCK Extreme also supports access to the Iridium Extreme handset’s SOS emergency function. This makes it a useful accessory for installations where satellite communications and convenient handset access are important.
The LiteDOCK Extreme is specifically designed for the Iridium Extreme 9575 handset. Its dedicated cradle provides a secure fit and keeps the phone positioned for convenient access.
The click-to-lock mechanism allows users to dock the handset easily and release it when portable use is required. This is particularly useful in installations where the phone needs to remain accessible without being permanently fixed in place.
For professional users, a dedicated docking station can also help maintain an organized installation by keeping the handset, power connection, and antenna connection together.

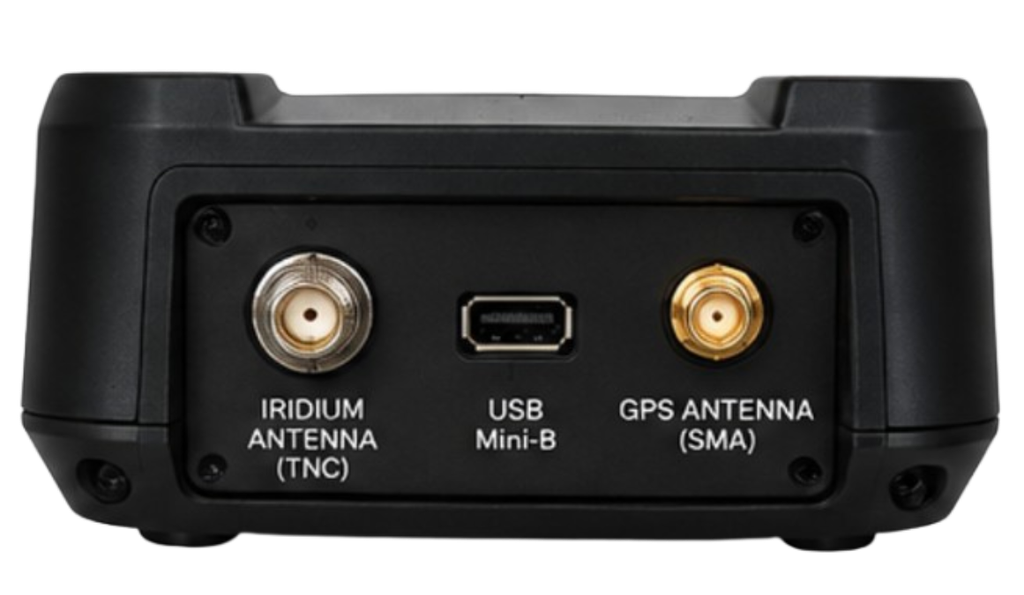

The docking station includes an integrated Iridium antenna connection using a TNC female connector.
This allows the antenna connection to remain available while the handset is docked, helping simplify the installation and reducing the need to reconnect the antenna each time the handset is placed in the cradle.
For installations in vehicles, vessels, and fixed locations, keeping antenna connections organized can make daily operation more convenient.
The manufacturer also lists several optional Iridium antenna solutions, including active, magnetic-mount, whip, mast-mount, and bolt-mount antennas. Compatible antenna selection depends on the installation environment and the required cable arrangement.
Benefits include:
The LiteDOCK Extreme provides an SMA female connector for an external GPS antenna, with an active 3.3 V DC interface.
This feature allows a compatible external GPS antenna to be connected when the installation requires a separate GPS antenna arrangement.
GPS antenna positioning can be important when equipment is installed inside a vehicle or another location where the antenna may not have a suitable view of the sky.
The manufacturer lists optional GPS and dual-mode Iridium/GPS antennas, along with GPS cable kits in different lengths. The appropriate accessory should be selected according to the installation requirements.
The docking station includes a USB Mini-B, five-pin female data port operating as a USB slave interface.
This provides a data connection for compatible applications and supports the use of the dock within a broader satellite communication setup.
The USB interface is particularly useful for installations where satellite phone data connectivity is required alongside voice communication.
The exact functionality available depends on the connected Iridium handset, software, and the satellite services provisioned for the user.
The LiteDOCK Extreme charges the docked Iridium Extreme handset, helping keep it ready for use.
For users who depend on satellite communication during transportation, maritime operations, or remote-site activities, maintaining handset charge is an important part of operational readiness.
The dock uses a rated input of 6 V DC, with a maximum current of 850 mA. The manufacturer’s brochure states that the AC power pack is not included with the dock because the power adapter is supplied with the Iridium handset.
Users should confirm that they have the appropriate compatible power adapter before installation.
The LiteDOCK Extreme supports the Iridium Extreme handset’s compatible communication services, including:
These capabilities allow the dock to be used in different satellite communication scenarios, from routine voice calls to compatible data applications.
However, the docking station does not independently provide satellite connectivity. The Iridium Extreme handset, an active satellite service, and suitable satellite coverage are required.
The LiteDOCK Extreme supports hands-free communication through the Iridium Extreme handset’s built-in speakerphone.
This feature allows users to conduct calls without continuously holding the handset, which can be useful in vehicle installations, control areas, and other operational environments.
The manufacturer’s documentation specifies that hands-free functionality is supported through the handset’s speakerphone. It should not be interpreted as a separate built-in speakerphone system within the docking station itself.

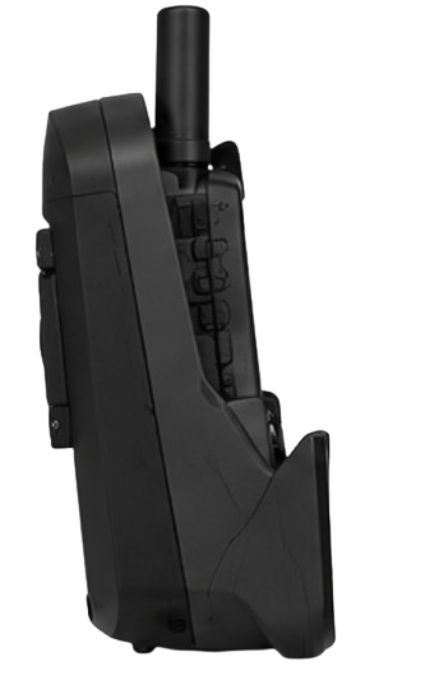

The LiteDOCK Extreme features a slimline design intended to simplify installation.

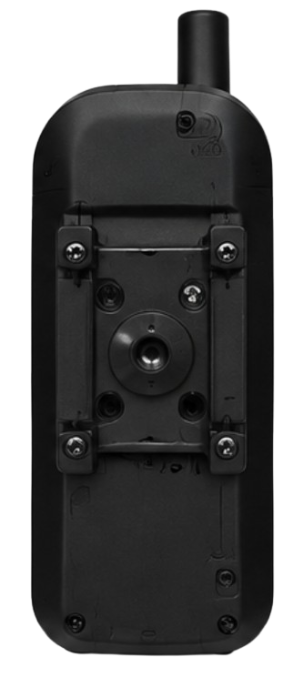

Its supplied universal RAM mounting bracket supports convenient mounting in compatible installations. This can be beneficial in vehicles, vessels, and fixed-site environments where available installation space may be limited.
The compact enclosure measures approximately 82.2 × 212 × 75.9 mm, making it suitable for installations that require a dedicated handset dock without a large equipment footprint.
The combination of compact dimensions, integrated connections, and a secure handset cradle helps make the LiteDOCK Extreme a practical accessory for professional satellite communication systems.
The LiteDOCK Extreme offers several practical advantages for users of the Iridium Extreme 9575.
The click-to-lock mechanism makes it easy to dock and remove the handset. Users can keep the phone securely positioned when it is not being carried and remove it when portable operation is required.
Integrated antenna connections, USB connectivity, and a universal mounting bracket help organize the installation. Keeping the principal connections together can reduce unnecessary cable handling during everyday use.
The docking station charges the handset while it is docked, helping users maintain readiness for satellite calls and other supported functions.
Its compact design and mounting bracket make the LiteDOCK Extreme suitable for several environments, including transport vehicles, vessels, and fixed locations.
The external GPS antenna connection provides additional installation flexibility when a compatible external antenna is needed.
The dock supports the Iridium Extreme handset’s compatible voice and data services, making it useful for installations that require more than voice calls alone.
The manufacturer’s brochure lists a two-year repair or replacement warranty. Warranty coverage and terms should be confirmed with the seller when ordering.
The Beam LiteDOCK Extreme is designed for applications where convenient access to an Iridium Extreme satellite phone is important.
Vessels may operate beyond the coverage of conventional mobile networks. A satellite phone can provide an alternative communication method when used with an appropriate satellite service.
The LiteDOCK Extreme provides a dedicated location for docking and charging the compatible Iridium handset aboard a vessel.
Its integrated antenna connection and mounting bracket can help create an organized installation, while the external GPS antenna interface provides additional flexibility.
Potential users include:
The appropriate antenna and mounting accessories should be selected according to the vessel’s layout and operating conditions.
Transportation professionals may travel through areas where cellular coverage is limited or unavailable.
The LiteDOCK Extreme can provide a dedicated docking and charging point for an Iridium Extreme handset in a compatible vehicle installation.
Potential applications include remote transport operations, long-distance journeys, and vehicles used in isolated locations.
The handset can be removed from the dock when portable use is required.
Industrial facilities, field operations, and remote work sites may need a satellite phone as part of their communication arrangements.
The LiteDOCK Extreme can provide a permanent or semi-permanent location for the handset, helping users keep the device charged and accessible.
Examples include:
The dock must be used with a compatible handset and an appropriate satellite service.
The Iridium Extreme handset supports an SOS emergency function, and the LiteDOCK Extreme is designed to allow access to that function while the phone is docked.
This can be useful in installations where the handset should remain secured but readily accessible.
However, the docking station does not replace an emergency response plan, and the availability of emergency communication depends on the handset, satellite service, configuration, and operating conditions.
Some facilities require a satellite phone to remain in a designated location rather than being carried continuously.
The LiteDOCK Extreme can serve as a dedicated dock in a compatible fixed-site installation, helping keep the handset, power connection, and antenna connection organized.
Its compact design makes it suitable for locations where a full rack-mounted communication system would be unnecessary.
The following table summarizes the specifications provided in the manufacturer’s LiteDOCK Extreme EXTRMLD brochure.
| Category | Specification | Details |
|---|---|---|
| General | Product Name | Beam LiteDOCK Extreme |
| General | Model Number | EXTRMLD |
| General | Manufacturer | Beam Communications |
| General | Compatible Handset | Iridium Extreme 9575 |
| General | Product Type | Satellite Phone Docking Station |
| Power | Rated Input | 6 V DC |
| Power | Maximum Input Current | 850 mA |
| Power | Average Power Consumption | 5 W |
| Power | AC Power Pack | Not included with dock; adapter supplied with Iridium handset |
| Data | USB Port | USB Mini-B, five-pin female |
| Data | USB Mode | USB slave |
| RF | Iridium Antenna Connector | TNC female |
| GPS | GPS Antenna Connector | SMA female |
| GPS | GPS Antenna Power | Active 3.3 V DC |
| Indicators | Status LED | Power-status indication |
| Environmental | Operating Temperature | -30°C to +70°C when the Iridium 9575 battery is fully charged |
| Environmental | Charging Temperature | 0°C to +45°C |
| Environmental | Storage Temperature | -35°C to +85°C |
| Environmental | Operating Humidity | Less than 85% RH, non-condensing |
| Physical | Dock Dimensions | 82.2 × 212 × 75.9 mm |
| Physical | Dock Dimensions in Inches | 3.24 × 8.35 × 2.99 in |
| Physical | Dock Weight | 0.375 kg / 0.83 lb |
| Packaging | Outer Box Dimensions | 140 × 125 × 325 mm |
| Packaging | Box Dimensions in Inches | 5.5 × 4.9 × 12.8 in |
| Packaging | Box Weight | 1.05 kg / 2.31 lb |
| Mounting | Mounting Bracket | Universal RAM mounting bracket |
| Certifications | Compliance | Iridium, EMC, CE, Electrical Safety, RoHS, C-Tick |
| Warranty | Manufacturer Warranty | Two-year repair or replacement warranty |
Specifications are based on the manufacturer’s EXTRMLD brochure. Operating temperature is stated with the condition that the Iridium 9575 battery is fully charged. Charging temperature follows the battery’s specified charging range.
According to the manufacturer, the standard LiteDOCK Extreme package includes:
The AC power pack is not included with the dock; the brochure states that the adapter is supplied with the Iridium handset.
The manufacturer’s brochure lists several compatible accessory options:
| Part Number | Accessory |
|---|---|
| RST740 | Iridium Active Antenna |
| RST702 | Dual-Mode Iridium/GPS Antenna |
| RST705 | Dual-Mode Iridium/GPS Magnetic Antenna |
| RST706 | Dual-Mode Iridium/GPS Whip Antenna |
| RST710 | Mast/Pole Antenna |
| RST714 | Whip Antenna |
| RST715 | Iridium Magnetic Antenna |
| RST720 | Iridium Bolt-Mount Antenna |
| RST942 | Iridium GPS Cable Kit, 6 m / 19.7 ft |
| RST923 | Iridium GPS Cable Kit, 12 m / 39.4 ft |
| RST932 | Passive Iridium Antenna Cable Kit, 6 m / 19.7 ft |
| RST933 | Passive Iridium Antenna Cable Kit, 12 m / 39.4 ft |
| RST060 | UPS Battery Pack |
Accessory availability and compatibility should be confirmed when ordering.
Before purchasing the LiteDOCK Extreme, users should confirm several important details.
Handset compatibility: The dock is designed for the Iridium Extreme 9575. It should not be assumed to be compatible with other Iridium handset models.
Power requirements: The dock requires 6 V DC and supports a maximum input current of 850 mA. Confirm that the appropriate power adapter is available.
Antenna selection: Select a compatible Iridium antenna and, where needed, an external GPS antenna suitable for the installation.
Mounting location: Choose a location that accommodates the dock’s dimensions and allows convenient access to the handset and release mechanism.
Data requirements: Confirm that the handset, software, and satellite service support the data functionality required by the application.
Environmental conditions: Follow the manufacturer’s operating, charging, and storage temperature limits.
These checks help ensure that the docking station is integrated appropriately into the intended satellite communication system.
The Beam LiteDOCK Extreme EXTRMLD is a practical docking solution for organizations and individuals who use the Iridium Extreme 9575 satellite phone in maritime, transportation, and fixed-site environments.
Its secure cradle, handset charging, integrated Iridium antenna connection, USB data port, external GPS antenna support, and universal mounting bracket make it a useful accessory for maintaining an organized and accessible satellite phone installation.
