Reliable connectivity is essential for teams working in remote and challenging environments. First responders, transportation companies, forestry teams, agricultural operations, and government organizations often need high-speed Internet access far beyond the reach of traditional terrestrial networks.

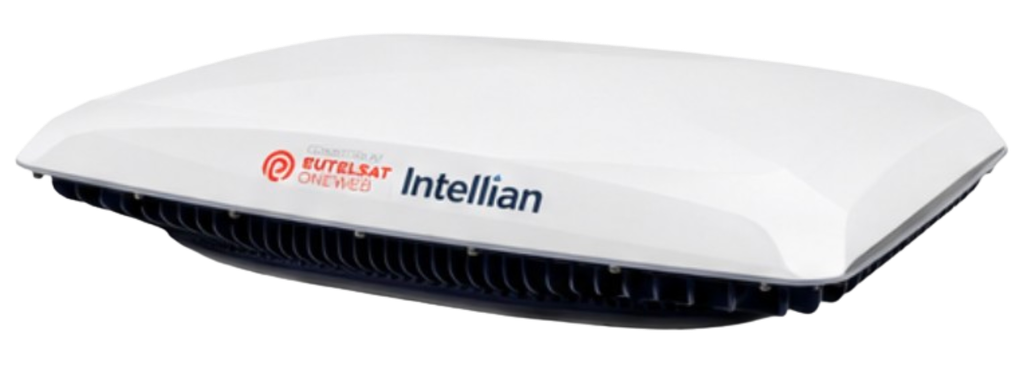

The Intellian OW10HV Compact Flat Panel for Land Mobility is designed for exactly these situations.
Built around Active Electronically Scanned Array (AESA) technology, the OW10HV provides satellite connectivity for moving vehicles while maintaining a compact and practical design. It is designed to deliver reliable performance in demanding environments, including rough roads, extreme temperatures, and remote locations.
The OW10HV supports peak downlink speeds of up to 75 Mbps and peak uplink speeds of up to 14 Mbps, subject to network configuration and service availability.
The system is particularly suitable for first responders, transportation, agriculture, forestry, and government applications.
VSATPLUS offers the Intellian OW10HV and can assist customers with product availability, configuration, pricing, and ordering.
The Intellian OW10HV is a compact flat-panel satellite terminal designed specifically for land mobility applications.
Unlike traditional satellite antennas that rely on larger mechanical structures, the OW10HV uses AESA technology to support satellite tracking in mobile environments. Intellian’s Flat Panel Series is designed for land fixed, enterprise, maritime, and land mobility customers.
The OW10HV is designed around several important requirements:
This makes it particularly useful for vehicles that need to remain connected while traveling through areas with limited or no terrestrial connectivity.
One of the main advantages of the OW10HV is its compact flat-panel design.
The terminal uses Active Electronically Scanned Array (AESA) technology and is designed for applications where size, weight, and power requirements are important. Intellian specifically positions the OW10HV as a solution for SWaP-constrained environments.
This makes it practical for vehicles where roof space and equipment weight are limited.
Typical applications include:
Maintaining a satellite connection while a vehicle is moving can be challenging.
Vehicles constantly experience:
The OW10HV incorporates Intellian’s advanced tracking technology to address these challenges.
The manufacturer states that the technology is designed to improve connection reliability and availability, including operation on rough roads and at low elevation angles.
This makes the OW10HV particularly suitable for mobile operations where stopping the vehicle to reconnect is not practical.
Another important feature is the terminal’s ability to support reliable handovers.
The flat-panel technology is designed to minimize connection loss during scanning and support smooth handovers between connections.
For a moving vehicle, this can be extremely valuable.
For example, a first-responder vehicle traveling between an emergency location and a command center may need continuous connectivity for:
The OW10HV is designed to support these requirements while the vehicle remains in motion.
Mobile satellite equipment often operates in conditions that would be difficult for conventional indoor networking equipment.
The OW10HV outdoor unit is designed to operate from:
-40°C to +55°C
or:
-40°F to +131°F.
It also has an IP66 ingress protection rating.
This makes the outdoor terminal suitable for demanding environments where exposure to weather and temperature extremes is expected.
Potential environments include:
Despite its compact design, the OW10HV provides substantial data capacity.
According to the technical specifications:
Up to 75 Mbps
Up to 14 Mbps
Actual performance depends on the network configuration and service offering.
This level of performance can support a wide range of applications, including:
For organizations operating mobile teams, this can provide an important communications link when terrestrial networks are unavailable.
Installing satellite equipment on a vehicle can traditionally require specialized equipment and technical expertise.
The OW10HV is designed to simplify this process.
Its compact and lightweight design enables single-person installation, according to Intellian.
Intellian also provides a dedicated Land Mobile Mount Adapter designed for vehicle crossbar systems.
This makes the system easier to integrate with different vehicle configurations.
The OW10HV simplifies the connection between the outdoor antenna and the in-vehicle equipment.
The system uses a single coaxial cable to carry both power and data between the outdoor unit and the Customer Network Exchange (CNX).
The system architecture is:
Outdoor Unit → Power + Data over Coaxial Cable → CNX → Customer Network
This approach can reduce cable complexity and make vehicle installation cleaner and easier to maintain.
The Customer Network Exchange, or CNX, is an important part of the OW10HV system.
The CNX provides:
Intellian provides several CNX configurations for different deployment requirements.
The available options include:
This gives customers flexibility when designing the in-vehicle network.
Installation and maintenance can also be simplified through the Intellian mobile application.
The application is designed for:
Intellian also states that the mobile application can support automated configuration and monitoring, helping reduce the time required to get the terminal online.
For field technicians and mobile teams, this can make deployment and troubleshooting considerably easier.
The main outdoor unit specifications are shown below:
| Specification | OW10HV |
|---|---|
| Product Type | Compact Flat Panel for Land Mobility |
| Antenna Technology | AESA |
| G/T | 9 dB/K |
| EIRP | +36.6 dBW, Dual Carrier |
| Dimensions | 56 × 45 × 12 cm |
| Dimensions | 22 × 17.7 × 4.7 in |
| Weight | 12.2 kg / 26.9 lb |
| Operating Temperature | -40°C to +55°C |
| Operating Temperature | -40°F to +131°F |
| Ingress Protection | IP66 |

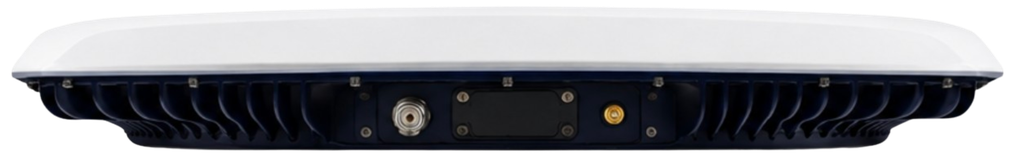

| RF Interface | F-Type |
| R-GNSS Interface | SMA |
| Peak Downlink | Up to 75 Mbps* |
| Peak Uplink | Up to 14 Mbps* |
*Performance is subject to network configuration and service availability.
The outdoor terminal measures:
56 × 45 × 12 cm
or:
22 × 17.7 × 4.7 inches
The weight is:
12.2 kg / 26.9 lb.
Its relatively compact footprint makes it easier to integrate into vehicles than many traditional satellite antenna systems.
The different CNX options allow customers to choose the appropriate networking configuration for their deployment.
| CNX | Dimensions | Weight | Operating Temperature | Interface |
|---|---|---|---|---|
| CNX-BB | 13 × 12 × 4 cm | 0.25 kg | 0°C to +40°C | 1-port GigE RJ45 |
| CNX-WIFI | 21 × 17 × 8 cm | 0.6 kg | 0°C to +40°C | Wi-Fi 6, 4-port GigE RJ45, F-Type |
| CNX-MOBILITY | 30 × 20 × 4 cm | 1.5 kg | -25°C to +55°C | Wi-Fi 6, 4-port GigE RJ45, F-Type |
| CNX-RACK-AC | 44.2 × 25 × 4.4 cm | 6.3 kg | -25°C to +55°C | 8-port GigE RJ45, Wi-Fi Dongle, F-Type |
The CNX ingress ratings are IP44 for CNX-BB and CNX-WIFI, IP56 for CNX-MOBILITY, and IP31 for CNX-RACK-AC.
The datasheet lists external AC and DC power supply options for several CNX configurations.
The CNX-RACK-AC is available with an embedded 450W dual power module configuration.
The correct power configuration should be selected according to the vehicle’s electrical system and overall installation requirements.
Emergency teams often operate in areas where terrestrial communication infrastructure may be unavailable.
The OW10HV can provide a satellite-based connectivity platform for emergency vehicles and mobile response teams.
Potential applications include:
The first-responder market is specifically identified by Intellian as a target application.
Transportation companies can use the OW10HV to provide connectivity to vehicles operating across remote routes.
The tracking capabilities are particularly relevant because the terminal is designed to maintain satellite connectivity while the vehicle is moving.
Forestry operations frequently take place far away from reliable terrestrial networks.
The OW10HV can provide a connectivity solution for vehicles and field teams operating in remote forest environments.
Its wide temperature range and IP66 outdoor protection further support this type of deployment.
Modern agriculture increasingly depends on connected technologies.
Satellite connectivity can support remote agricultural operations where terrestrial broadband is limited.
The OW10HV is specifically listed by Intellian for agricultural applications.
Government and public-sector organizations can deploy the OW10HV on vehicles that require connectivity in remote or temporary operating locations.
The compact design can also be useful for mobile command and field communication platforms.
The OW10HV combines several characteristics that make it well suited to mobile satellite communications.
The flat-panel architecture reduces the physical footprint of the antenna system.
Active electronically scanned array technology is at the core of the Intellian Flat Panel Series.
Advanced tracking is designed to maintain connectivity while vehicles move, including over rough roads.
The terminal supports peak data rates of up to 75 Mbps downlink and 14 Mbps uplink, subject to network configuration.
The outdoor unit operates from -40°C to +55°C and provides IP66 protection.
The system supports single-person installation and can be combined with Intellian’s vehicle crossbar mount.
Power and data can travel over a single coaxial cable between the outdoor unit and CNX.
Multiple CNX configurations allow the system to be adapted to different vehicle networking requirements.
The Intellian mobile application supports installation, troubleshooting and monitoring.
| Category | Specification |
|---|---|
| Model | Intellian OW10HV |
| Application | Land Mobility |
| Technology | AESA |
| Target Markets | First Responders, Transportation, Agriculture, Forestry, Government |
| G/T | 9 dB/K |
| EIRP | +36.6 dBW, Dual Carrier |
| Outdoor Dimensions | 56 × 45 × 12 cm |
| Outdoor Weight | 12.2 kg / 26.9 lb |
| Operating Temperature | -40°C to +55°C |
| Ingress Protection | IP66 |
| RF Interface | F-Type |
| R-GNSS Interface | SMA |
| Peak Downlink | Up to 75 Mbps* |
| Peak Uplink | Up to 14 Mbps* |
| Mounting | Vehicle Cross Bars |
| Mount Adapter | 93 × 23 × 4 cm |
| Mount Adapter Weight | 5 kg / 11 lb |
| CNX Options | CNX-BB, CNX-WIFI, CNX-MOBILITY, CNX-RACK-AC |
| CNX-BB Weight | 0.25 kg |
| CNX-WIFI Weight | 0.6 kg |
| CNX-MOBILITY Weight | 1.5 kg |
| CNX-RACK-AC Weight | 6.3 kg |
| CNX-BB Interface | 1-port GigE RJ45 |
| CNX-WIFI Interface | Wi-Fi 6, 4-port GigE RJ45, F-Type |
| CNX-MOBILITY Interface | Wi-Fi 6, 4-port GigE RJ45, F-Type |
| CNX-RACK-AC Interface | 8-port GigE RJ45, Wi-Fi Dongle, F-Type |
| CNX-RACK-AC Power | Embedded 450W Dual Power Modules |
| Outdoor-to-CNX Connection | Power + Data over Coaxial Cable |
| Mobile App | Installation, Troubleshooting & Monitoring |
*Performance is subject to network configuration and service offerings.
The OW10HV is designed for organizations that need satellite connectivity without compromising vehicle mobility.
Its combination of:
AESA technology + advanced tracking + compact design + rugged construction + high-speed connectivity
makes it suitable for demanding land-mobile applications.
For a first responder, this can mean maintaining connectivity during an emergency deployment.
For a transportation company, it can mean keeping vehicles connected while traveling through remote areas.
For forestry and agriculture teams, it can provide a communications link in locations where terrestrial infrastructure is unavailable.
And for government organizations, it can provide a flexible connectivity platform for mobile field operations.
Looking for an Intellian OW10HV Compact Flat Panel for Land Mobility?
VSATPLUS offers the Intellian OW10HV and can help customers with product sourcing, configuration, availability, pricing, and ordering.
Depending on the deployment, customers can select the appropriate:
The right configuration depends on the vehicle, networking requirements, power architecture, and satellite service.
Contact VSATPLUS today to discuss your requirements and get pricing and availability for the Intellian OW10HV.
The Intellian OW10HV is a compact and rugged flat-panel satellite terminal designed to provide reliable connectivity for land-mobile operations.
With AESA technology, advanced tracking, 9 dB/K G/T, +36.6 dBW dual-carrier EIRP, peak downlink speeds of up to 75 Mbps, peak uplink speeds of up to 14 Mbps, IP66 protection, and an operating temperature range of -40°C to +55°C, the OW10HV is designed for demanding mobile environments.
Its installation is also designed to be straightforward. The system supports a vehicle crossbar mounting solution, single-person installation, power and data over a single coaxial cable, and mobile-app-based installation and monitoring.
With multiple CNX options, organizations can also choose an in-vehicle networking configuration that matches their operational requirements.
Whether the application is emergency response, transportation, forestry, agriculture, or government, the OW10HV provides a practical way to bring high-speed satellite connectivity to vehicles operating beyond the reach of traditional networks.
The Intellian OW10HV is available from VSATPLUS. Contact our team for product availability, configuration, pricing, and ordering.
