Reliable internet connectivity has become essential for modern maritime operations. Whether supporting commercial fishing fleets, leisure vessels, offshore service boats, or small commercial ships, today’s vessel operators depend on uninterrupted broadband communications for navigation, weather forecasting, operational management, crew welfare, remote monitoring, and safety. Traditional mechanically steered satellite antennas have served the maritime industry for decades, but they often require regular maintenance, occupy valuable deck space, and add significant weight to smaller vessels.

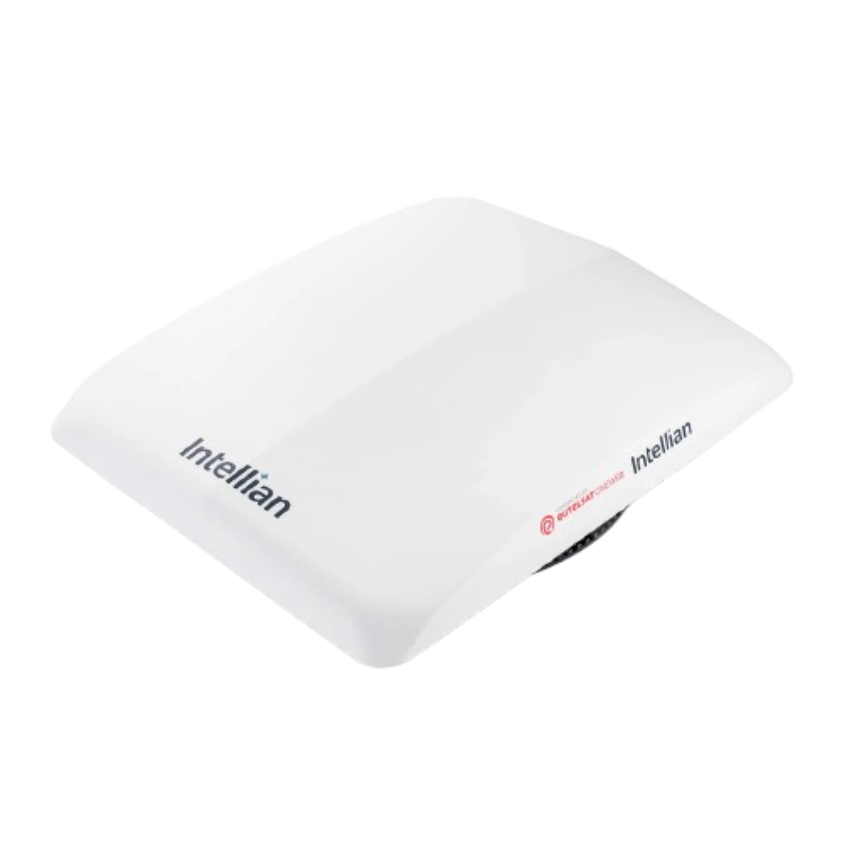

The Intellian OW10HM Compact Flat Panel for Maritime represents the next generation of maritime satellite communications. Purpose-built for Eutelsat OneWeb’s Low Earth Orbit (LEO) satellite network, the OW10HM combines an Active Electronically Scanned Array (AESA) antenna with Intellian’s advanced tracking technology to deliver high-speed broadband connectivity in a lightweight, compact, and rugged package.
Designed specifically for fishing vessels, leisure boats, and other SWaP-constrained (Size, Weight, and Power) maritime applications, the OW10HM offers seamless connectivity, simplified installation, and dependable performance even in harsh marine environments. According to the official specification sheet, the terminal features 9 dB/K G/T, 36.6 dBW EIRP, peak download speeds up to 75 Mbps, peak upload speeds up to 14 Mbps, IP66 protection, and operation in temperatures ranging from -40°C to +55°C.
Available through VSATplus, the Intellian OW10HM provides vessel owners and operators with a future-ready maritime communications solution backed by expert technical consultation and worldwide delivery.
The OW10HM belongs to Intellian’s Flat Panel Series, a family of electronically steered user terminals developed for:
applications.
Unlike conventional stabilized satellite antennas, the OW10HM uses Active Electronically Scanned Array (AESA) technology to electronically steer the satellite beam without moving mechanical components. This reduces maintenance requirements while improving reliability and enabling a significantly more compact design.
The result is a modern communications platform capable of delivering broadband connectivity across OneWeb’s LEO satellite constellation while minimizing installation complexity.
The OW10HM has been specifically optimized for:
Its lightweight construction and compact dimensions make it an ideal solution where space and weight are limited.
The OW10HM incorporates several technologies that distinguish it from traditional maritime VSAT systems.
According to Intellian, the OW10HM uses an innovative antenna design that delivers outstanding performance despite its compact size.
The antenna is specifically optimized for:
constraints while maintaining the user experience expected from professional maritime broadband services.
One of the biggest technological advantages of the OW10HM is its AESA architecture.
Unlike traditional mechanically stabilized antennas, electronically steered arrays offer:
This modern approach significantly reduces moving parts while improving operational efficiency.
Maintaining reliable satellite connectivity aboard moving vessels presents significant challenges.
The OW10HM incorporates Intellian’s advanced tracking technology designed to:
According to the specification sheet, this advanced tracking enables dependable performance even at the low elevation angles commonly encountered in equatorial regions.
The terminal has been engineered to provide uninterrupted communications through smooth satellite handovers.
Benefits include:
These characteristics are especially valuable for operational and safety-critical maritime communications.

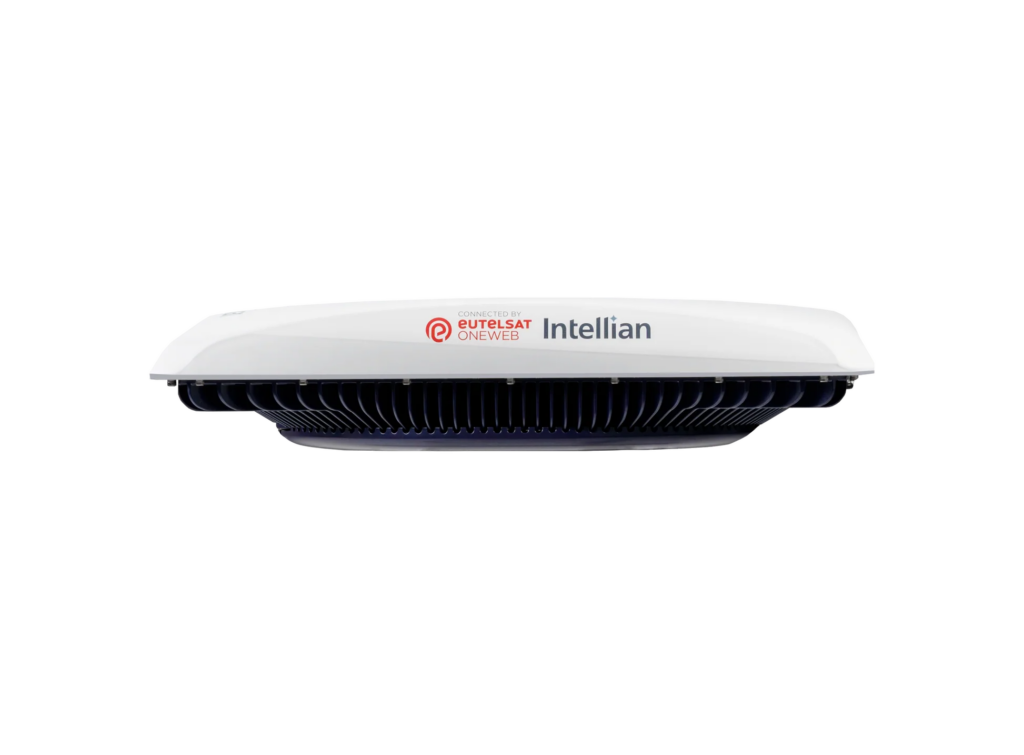

The Above Deck Unit (ADU) contains the electronically steered flat-panel antenna.
| Parameter | Specification |
|---|---|
| G/T | 9 dB/K |
| EIRP | +36.6 dBW (Dual Carrier) |
| Peak Download Rate | Up to 75 Mbps |
| Peak Upload Rate | Up to 14 Mbps |
| Operating Temperature | -40°C to +55°C |
| Protection Rating | IP66 |
| Interface | F-Type Port, SMA (R-GNSS) |
These specifications provide an excellent balance of performance and efficiency for compact maritime terminals.
The OW10HM has been designed with installation flexibility in mind.
| Parameter | Specification |
|---|---|
| Dimensions | 56 × 45 × 12 cm |
| Weight | 12.2 kg |
The lightweight construction allows installation by a single technician while reducing structural loading on smaller vessels.
One of the strongest advantages of the OW10HM is its installation process.
According to Intellian, the system supports:
using dedicated maritime adapters.
Power and data are delivered over a single coaxial cable, reducing installation time and minimizing onboard cabling requirements.

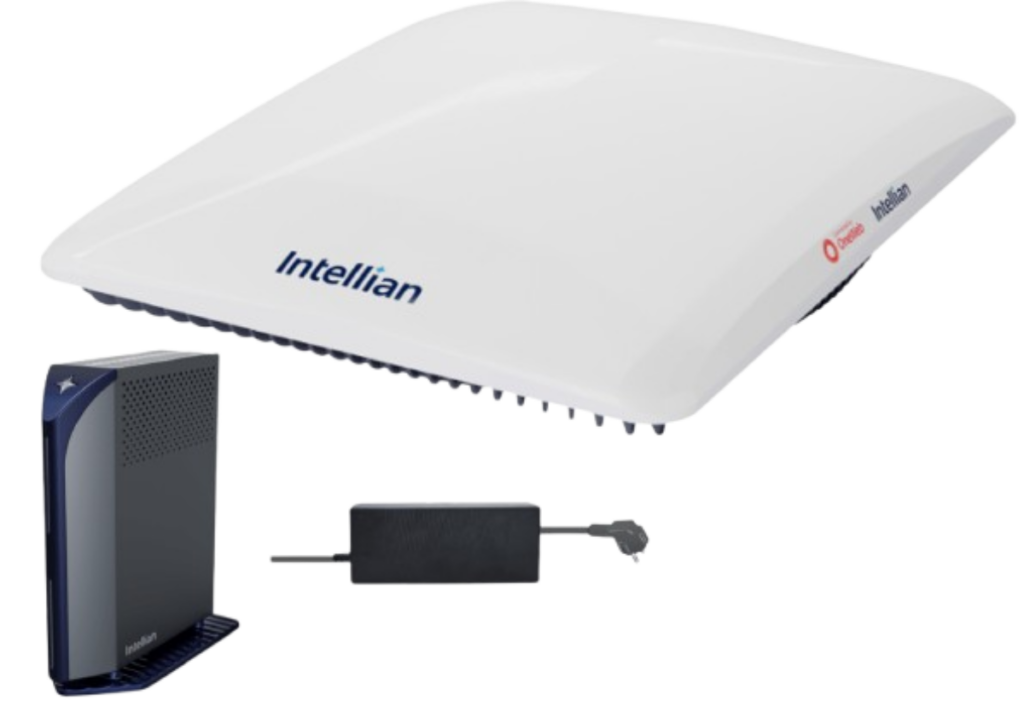

The OW10HM works in conjunction with Intellian’s Customer Network Exchange (CNX) units.
These below-deck units provide:
Several CNX models are available for different maritime deployment scenarios.
| Feature | Specification |
|---|---|
| Gigabit Ethernet | 1 Port |
| Weight | 0.25 kg |
| IP Rating | IP44 |
| Feature | Specification |
|---|---|
| Wi-Fi 6 | Yes |
| Gigabit Ethernet | 4 Ports |
| Weight | 0.6 kg |
| IP Rating | IP56 |
| Feature | Specification |
|---|---|
| Gigabit Ethernet | 8 Ports |
| Wi-Fi Dongle Support | Yes |
| Weight | 1.5 kg |
| Feature | Specification |
|---|---|
| Rack Mount | 1RU |
| Dual Power Modules | 450W |
| Weight | 6.3 kg |
This variety allows operators to choose the networking platform best suited to their vessel.
The OW10HM is supported by Intellian’s mobile application.
The app assists with:
This significantly reduces deployment time while simplifying field maintenance.
Marine environments expose equipment to:
The OW10HM is engineered to withstand these conditions.
| Parameter | Specification |
|---|---|
| Operating Temperature | -40°C to +55°C |
| Protection Rating | IP66 |
This rugged design helps ensure dependable long-term operation.
The OW10HM is designed to provide broadband communications for modern maritime applications.
Typical use cases include:
The OneWeb LEO network delivers lower latency than traditional GEO satellite systems, improving user experience for interactive applications.
Intellian provides multiple mounting solutions.
Available options include:
This flexibility simplifies retrofits as well as new vessel installations.
The OW10HM is ideal for:
VSATplus supplies professional satellite communication equipment for commercial, maritime, enterprise, government, and defense customers around the world.
When purchasing the Intellian OW10HM from VSATplus, customers receive:
Whether you’re upgrading an existing fishing vessel, equipping a leisure yacht, or deploying broadband connectivity across a commercial fleet, VSATplus can help you implement the right maritime communication solution.
The Intellian OW10HM Compact Flat Panel for Maritime is a next-generation maritime user terminal engineered to deliver reliable broadband connectivity through the Eutelsat OneWeb LEO satellite network. By combining Active Electronically Scanned Array (AESA) technology, advanced tracking algorithms, a compact lightweight design, and rugged IP66 protection, it offers an ideal solution for vessels where size, weight, and power are critical considerations.
With support for seamless satellite handovers, simplified single-cable installation, flexible below-deck networking options, and dependable operation in demanding marine environments, the OW10HM is well suited to fishing vessels, leisure craft, workboats, and small commercial fleets.
Available now from VSATplus, the Intellian OW10HM provides a modern, efficient, and future-ready connectivity platform for maritime operators seeking high-performance LEO broadband solutions.
