As satellite communication networks continue to evolve, the demand for compact, energy-efficient, and highly reliable RF equipment has never been greater. Modern VSAT terminals, enterprise satellite networks, government communication systems, maritime platforms, and mobile SATCOM deployments require hardware that delivers consistent RF performance while minimizing power consumption and installation complexity.
The AMKOM AKG-6W Ku-Band Block Upconverter (BUC) has been developed specifically to meet these requirements. Designed by Amkom Design Group, the AKG-6W combines a lightweight mechanical design, low power consumption, excellent RF characteristics, and military-grade reliability into one of the industry’s most compact 6W Ku-Band BUC solutions.
At VSATplus, we proudly offer the AMKOM AKG-6W Ku-Band BUC to customers worldwide, providing genuine products, competitive pricing, expert technical consultation, and global shipping for professional satellite communication projects.
The AKG-6W belongs to AMKOM’s latest generation of Fanless Slim Ku-Band Block Upconverters, specifically engineered for professional outdoor satellite terminals.
A Block Upconverter (BUC) converts the Intermediate Frequency (IF) signal generated by a satellite modem into the Ku-Band uplink frequency before transmitting it toward the satellite. The AKG-6W performs this conversion while delivering 6 Watts of saturated RF output power (37.8 dBm) with remarkably low power consumption.
Unlike conventional BUCs that require bulky housings and active cooling, the AKG-6W features a fanless ultra-compact enclosure weighing less than one pound, making it ideal for portable, mobile, and space-constrained satellite terminals.
Satellite communication operators increasingly require equipment that is:
The AKG-6W was designed around these principles.
According to the product documentation, this model represents AMKOM’s next-generation Fanless Slim Non-IP Series, utilizing highly efficient RF amplifiers with internal overdrive protection while maintaining excellent RF stability and low phase noise. Every unit undergoes comprehensive acceptance testing at the company’s California manufacturing facility before shipment.
The AKG-6W offers an impressive feature set for a compact 6W outdoor BUC.
These features make the AKG-6W suitable for both fixed and transportable VSAT terminals.

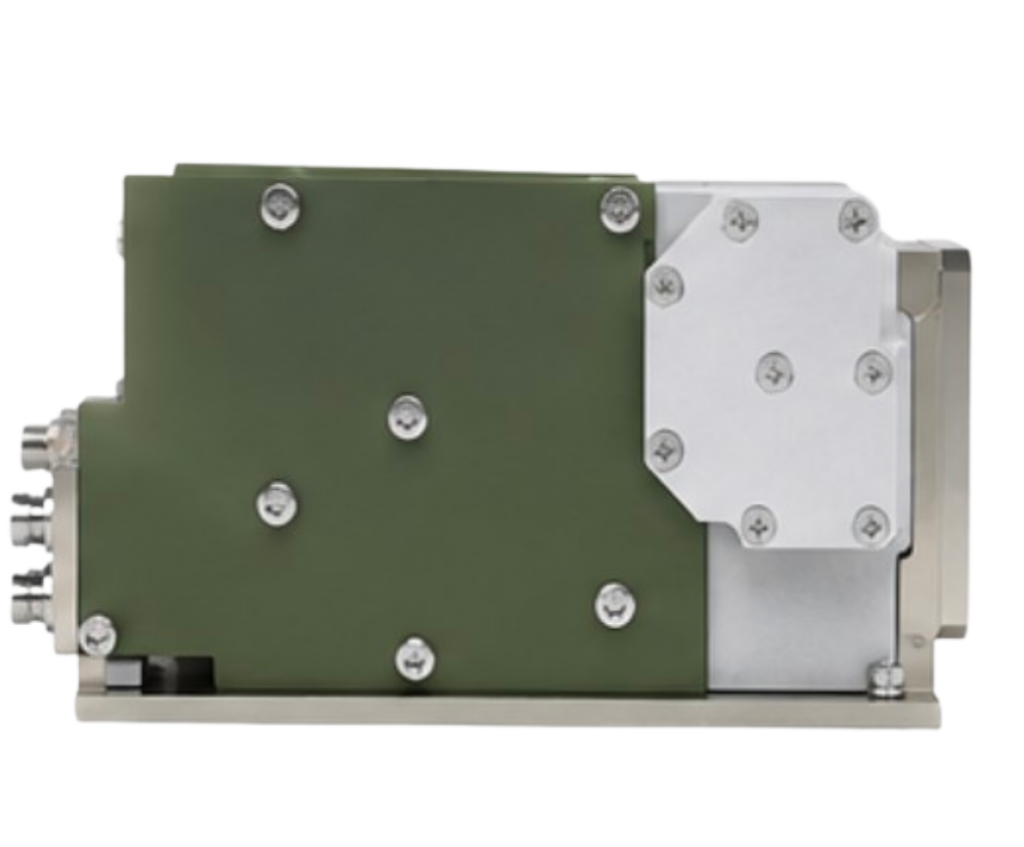

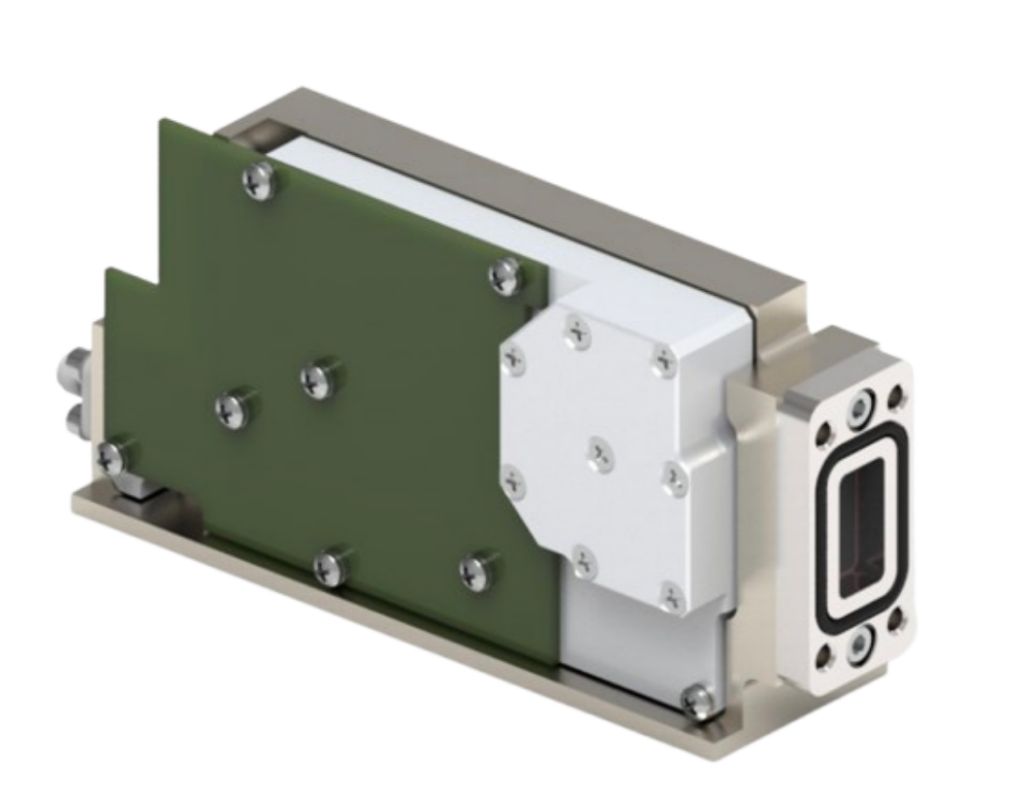

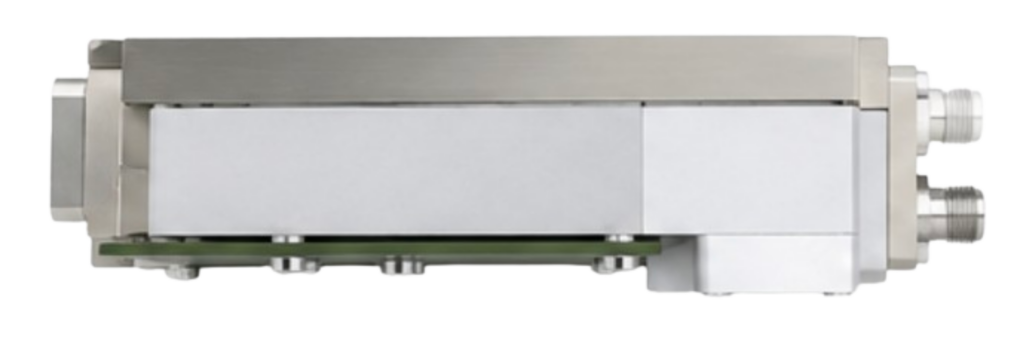

One of the most attractive characteristics of the AKG-6W is its size.
The enclosure measures only:
while weighing:
Despite its small footprint, the unit delivers professional RF performance typically associated with much larger outdoor amplifiers.
Reliable RF performance is essential for maintaining stable satellite links.
The AKG-6W provides:
These specifications enable operators to maximize satellite link performance while maintaining signal integrity.
The AKG-6W supports multiple Ku-Band configurations to accommodate different satellite operators and regional frequency plans.
Available models include:
Corresponding IF frequencies include:
with Local Oscillator options of:
This flexibility allows the AKG-6W to integrate with a wide variety of VSAT platforms.
Power efficiency is increasingly important for remote sites powered by batteries, solar systems, or limited electrical infrastructure.
The AKG-6W consumes only:
This makes it one of the industry’s most efficient BUCs in its power class, reducing operating costs and heat generation.
Unlike many outdoor BUCs, the AKG-6W eliminates mechanical cooling fans.
Advantages include:
The passive cooling design also contributes to the unit’s compact dimensions and lightweight construction.
The AKG-6W has been engineered for high-quality satellite transmissions.
Performance specifications include:
These characteristics ensure clean uplink signals that comply with satellite operator requirements.
Phase noise directly affects modulation quality, especially for higher-order modulation schemes.
The AKG-6W exceeds IESS-308 and IESS-309 phase noise standards and offers:
| Offset | Phase Noise |
|---|---|
| 10 Hz | -55 dBc/Hz |
| 100 Hz | -65 dBc/Hz |
| 1 kHz | -75 dBc/Hz |
| 10 kHz | -85 dBc/Hz |
| 100 kHz | -95 dBc/Hz |
These values contribute to stable carrier performance and improved satellite link reliability.
The AKG-6W incorporates several protection mechanisms to maximize operational reliability.
Built-in protections include:
These features help protect both the BUC and connected equipment from abnormal operating conditions.
Optional advanced Monitor & Control capabilities provide enhanced remote management.
Available interfaces include:
Alarm reporting includes:
These management features simplify integration into enterprise satellite network management systems.
Designed for outdoor installations, the AKG-6W complies with several military and environmental standards.
Environmental specifications include:
Compliance includes:
These certifications demonstrate the unit’s suitability for demanding field environments.
| Interface | Specification |
|---|---|

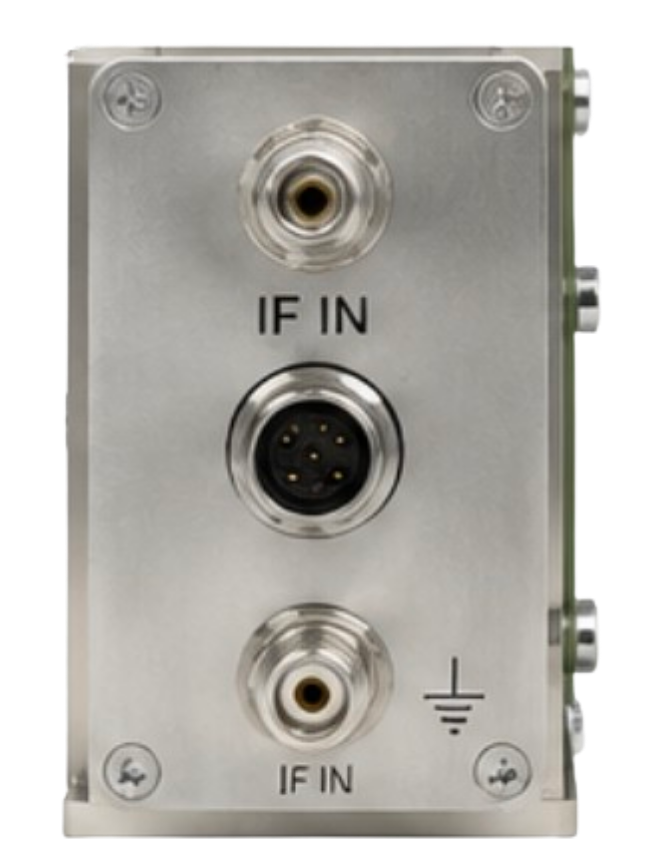

| IF Connector | N-Type (50Ω) or F-Type (75Ω) |

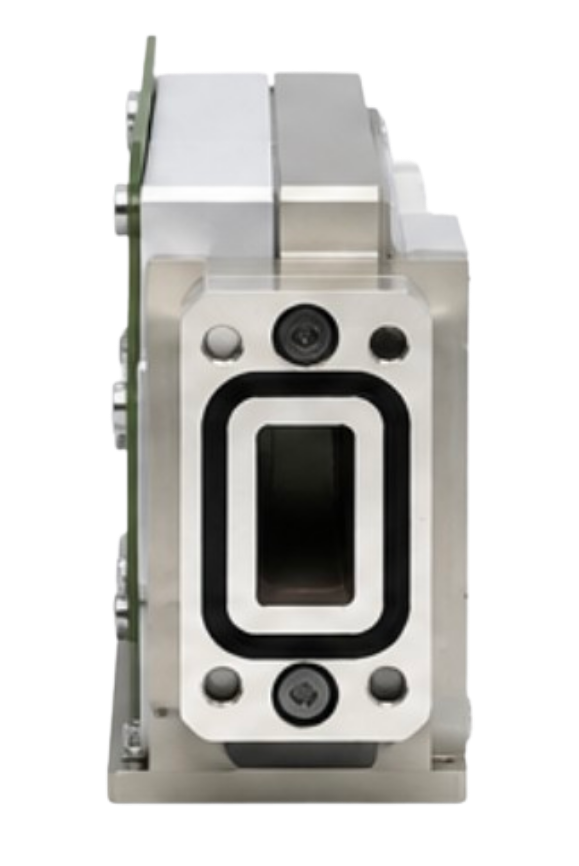

| RF Output | WR75 Sealed & Grooved Waveguide |
| DC Input | +18 to +55 VDC via IF |
| Optional M&C | RS232 / RS485 / Ethernet / SNMP / Telnet |
| Specification | AKG-6W |
|---|---|
| Product | AMKOM AKG-6W Ku-Band BUC |
| RF Frequency | 13.75–14.50 GHz / 14.0–14.50 GHz |
| IF Frequency | 950–1700 MHz / 950–1450 MHz |
| Local Oscillator | 12.80 GHz / 13.05 GHz |
| Saturated Output Power | 6W (37.8 dBm) |
| Linear Output Power | 5W (37.0 dBm) |
| Gain | 55 dB Min / 60 dB Typical |
| Power Consumption | 23W |
| Cooling | Fanless |
| RF Output | WR75 Waveguide |
| IF Connector | N-Type or F-Type |
| Input Voltage | +18 to +55 VDC |
| Operating Temperature | -40°C to +70°C |
| Protection | Voltage, Overtemp, Current, Overdrive |
| Weight | <0.45 kg |
| Dimensions | 139 × 64 × 40 mm |
| Warranty | 3 Years |
The AKG-6W is well suited for:
At VSATplus, we supply genuine AMKOM AKG-6W Ku-Band BUCs with expert technical support and worldwide logistics. Whether you’re upgrading an existing VSAT terminal or deploying a new satellite network, our team can help you select the right RF equipment for your application.
When purchasing from VSATplus, you benefit from:
The AMKOM AKG-6W Ku-Band BUC is an outstanding choice for satellite operators seeking a compact, energy-efficient, and high-performance outdoor upconverter. Its fanless architecture, low power consumption, excellent RF characteristics, advanced monitoring options, and rugged environmental design make it ideal for modern VSAT, broadcast, government, and mobile satellite communication systems.
Backed by AMKOM’s engineering expertise and available through VSATplus, the AKG-6W provides the performance, reliability, and operational efficiency required for today’s demanding SATCOM deployments.
