RANGER Neo Rack Series & PROWATCH NeoAdvanced Rack-Mounted Spectrum Analyzers

by Hamid Bagheri | May 31, 2025

🔍 Introduction: Precision Monitoring for Satellite and RF Systems

The RANGER Neo Rack Series and PROWATCH Neo by PROMAX are professional-grade rack-mounted spectrum analyzers designed for real-time RF signal analysis, 24/7 satellite monitoring, and signal diagnostics across C, Ku, and Ka bands. Built for integration in OB vans, teleports, VSAT hubs, and mobile satellite systems, these tools offer unmatched flexibility, reliability, and analytical power.

Now available at VSATPlus, this series includes a complete suite of models: RANGER Neo Rack Lite, Rack+, Rack 2, Rack 3, and Rack 4, as well as PROWATCH Neo and PROWATCH Neo 2 for continuous monitoring applications.

✨ Key Features

Full spectrum coverage from 5 MHz to 2500 MHz (expandable to 6 GHz)
Spectrum analyzer for terrestrial and satellite bands
Fast sweep time: As low as 70 ms
SNMP compatible for remote monitoring
Remote control & web interface

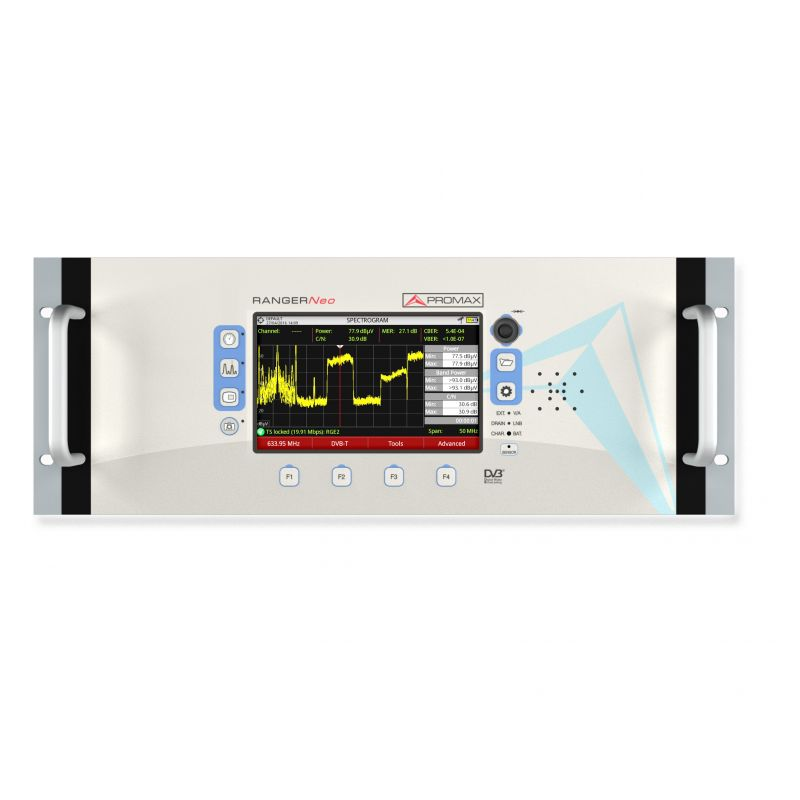

7-inch TFT display, touch screen + keypad control
Multiple span and resolution bandwidth options
Video/audio/IPTV streaming, constellation analysis, and 4K decoding
Built-in LNB power: 5V to 24V + 22 kHz for satellite systems
Monitoring and recording tools: Merogram, spectrogram, datalogger

🔹 Product Variants & Specifications

Model	Freq. Range	Span Options (MHz)	RBW Options	Inputs	Notable Features
RANGER Neo Rack Lite	5–1000 MHz (terrestrial)	Full / 500 / 200 / 100 / 50 / 20 / 10	2 kHz (terrestrial), 100 kHz	RF 75Ω/50Ω	Basic rack analyzer for terrestrial/satellite signals
RANGER Neo Rack +	250–2500 MHz (satellite)	Full / 500 / 200 / 100 / 50 / 20 / 10	100, 200 kHz, 1 MHz	RF 75Ω/50Ω, HDMI, IP	Enhanced analyzer w/ DVB, DAB+, spectrum capture & OTT
RANGER Neo Rack 2	250–2500 MHz	Full to 10 MHz	Full DVB-S/S2 support, 1 MHz RBW	USB, ASI-TS, IPTV	Full DVB-T2-MI, 4K grabber, TS analyzer, beacon support
RANGER Neo Rack 3	250–2500 MHz	Full to 10 MHz	10–1000 kHz, 1 MHz	Common Interface slot	GPS analysis, optical-RF conv., WiFi 5 GHz, 6 GHz RF optional
RANGER Neo Rack 4	250–2500 MHz	Full to 10 MHz	Advanced filters + DAB+ & LTE 2.6 GHz	IPTV multicast, 2x USB	Most complete version; all tools incl. SCAN+TILT, IRG decoding
PROWATCH Neo	250–2500 MHz	Full span	Same as Rack 2–4	SNMP, WebControl	24/7 monitoring, SNMP, alarms, IP remote control
PROWATCH Neo 2	250–2500 MHz	Full span	Full broadcast + telemetry features	Beacon, TT&C, IPTV streaming	Monitoring system optimized for telemetry and redundancy setups

📅 Use Cases

OB Vans: Reliable spectrum analysis during satellite uplinks
Ground Stations & Teleports: Full signal diagnostics for SATCOM management
VSAT Commissioning: Antenna pointing, IRG analysis, signal sweep in-field
24/7 Monitoring Centers: Continuous feed quality control and SNMP alarm triggering
Broadcasters & CATV Providers: Service assurance, TS decoding, OTT/IPTV test
Mobile Satellite Networks: Perfect for flyaway or field-deployed satellite tools

🚀 Special Tools & Integrated Functions

Merogram & Spectrogram for historical monitoring
Constellation Diagrams and TS analysis tools
PLS Scrambling & SNG/VSAT alignment tools
Signal Recording, Field Strength Meter, OTT playback
Advanced TS Recording, DAB+, DVB-T2-MI support
Scan + Tilt analysis and video/audio streaming

📄 Dimensions & Power

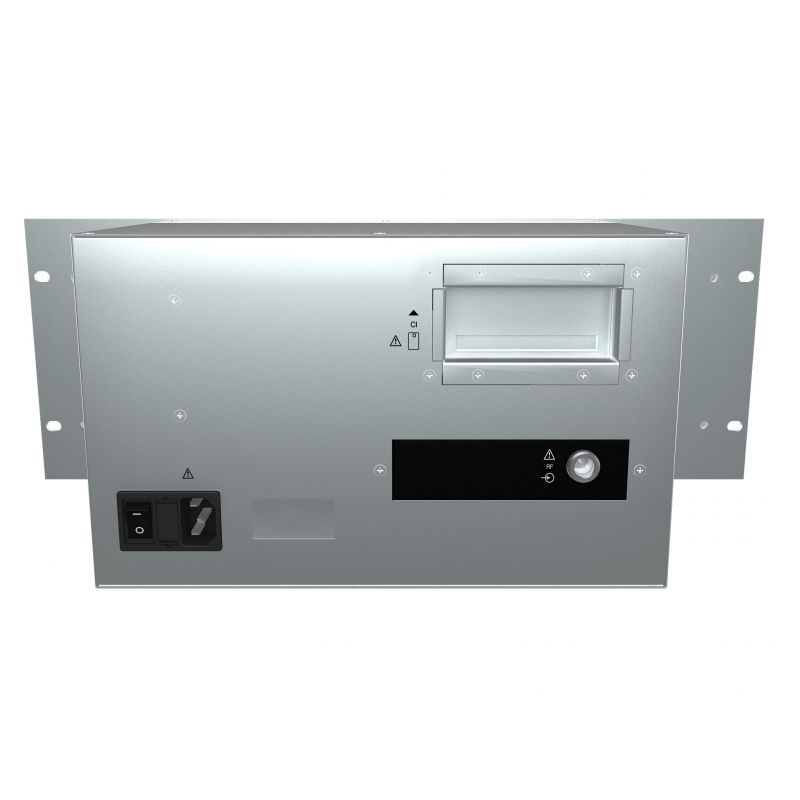

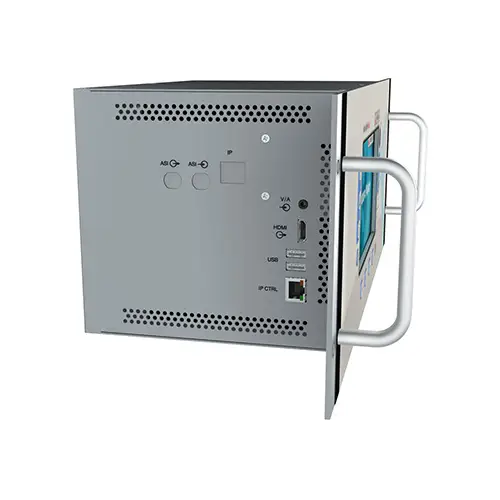

RANGER Neo Rack Units: 482 x 177.6 x 238.7 mm (4U)
PROWATCH Neo Units: 482 x 44.5 x 381 mm (1U)
Power Supply: 100–240V AC / Internal DC converters
Weight: ~4–6 kg (varies by model)

Positives & Advantages

Modular Configurations: Multiple variants with optional features
Web Interface: Easy configuration and control remotely
Fast Spectrum Sweep: Ideal for fast-moving analysis (mobile uplinks, SNG)
LNB Control & Power: Direct control from analyzer (DiSEqC, 22kHz, DC power)
Field-Proven Performance: Suitable for military-grade, broadcast, and industrial use
Upgradeable Options: Add DAB+, GPS, optical-to-RF modules, IPTV support

🛎️ Order Now at VSATPlus

Looking for a complete rack-based RF signal monitoring and analysis system? The RANGER Neo Rack Series and PROWATCH Neo are now available at VSATPlus with full integration and consultation support.

🛠️ VSATPlus Offers:

Certified PROMAX equipment
Deployment assistance and custom configuration
Global shipping and warranty
Expert support for OB van, teleport, VSAT hub, and broadcast deployments

📢 Contact us today to choose the right model for your operation!

🌟 Conclusion: Powerful Rack-Mounted Tools for Modern SATCOM

From live uplinks in OB vans to constant monitoring in teleport facilities, the RANGER Neo Rack and PROWATCH Neo series offer powerful, flexible solutions tailored to satellite professionals. With features like SNMP support, constellation views, IPTV streaming, and advanced signal analysis, they combine the capabilities of a lab instrument with the ruggedness required in real-world deployments.

📡 Get your system from VSATPlus today – your trusted partner in satellite connectivity.
