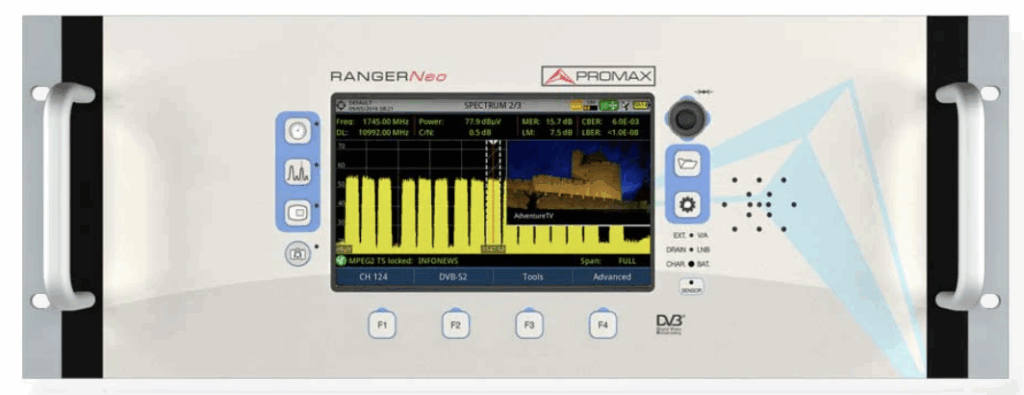

RANGER Neo Rack Lite ATSC | Field-Ready Spectrum Analyzer and TV Signal Monitoring Tool

The Smartest Way to Monitor, Analyze & Broadcast Networks

The RANGER Neo Rack Lite ATSC is an all-in-one professional spectrum analyzer and TV signal monitoring tool tailored for the North American broadcast environment. Perfect for ATSC, cable, IPTV, satellite, and fiber deployments, this portable yet powerful device is engineered for technicians, engineers, and operations centers that demand high performance, 24/7 reliability, and intelligent tools in one compact platform.

Offered by VSATPlus, the Neo Rack Lite ATSC provides a combination of real-time analysis, IPTV decoding, remote control, video streaming, and LTE interference detection — making it one of the most advanced tools available in the industry.

✨ Key Features of RANGER Neo Rack Lite ATSC

• Supports ATSC, DVB-S/S2, DVB-C, DVB-T/T2, ISDB-T, DSS, QAM Annex B
• High-Speed Spectrum Analysis: Sweep time as low as 70 ms with resolution bandwidths from 2 kHz to 1 MHz.
• Triple Split Display: View real-time spectrum, constellations, and signal quality simultaneously.
• HEVC / H.265 Video Decoder: Ensures next-gen video signal analysis.
• Built-in IPTV Analyzer: Multicast analysis, Media Delivery Index, IPDV, and more.
• Wi-Fi & LTE Analyzer: 2.4GHz & 5.7GHz WiFi + LTE interference mapping.
• Field Strength Meter & Drive Test Mode: GPS-assisted signal coverage analysis.
• TS Analysis, Recording & Playback: Full transport stream diagnostics and performance logging.
• Remote Access via WebControl & SNMP: Monitor and configure from anywhere.
• Advanced Satellite Tools: dCSS, SATCR, DiSEqC, PLS, beacon signal detection, wideband LNB compatible.

🔹 Technical Specifications Table

📅 Usage Scenarios

• OB Vans & SNG Trucks: Real-time RF analysis and channel monitoring in live event environments.
• TV & Broadcast Technicians: Field use for setup, testing, and diagnosis across ATSC, DVB, satellite, and cable systems.
• IPTV Providers & Engineers: Full protocol and bitrate analysis for multicast IPTV streams.
• Carrier & Telco: Network delay, jitter, and packet loss tracking via MDI and FEC metrics.
• VSAT Installations: Flyaway antenna alignment, beacon capture, interference scanning.
• Network Operations Centers (NOC): SNMP integration for 24/7 signal health monitoring and alerting.

Positives and Benefits

• Multistandard Support: Covers nearly every global signal protocol — ATSC, DVB, ISDB, satellite, cable, terrestrial, IP.
• Future-Ready: H.265 decoding, 4K frame grabber, OTT monitoring (DASH).
• Intelligent UI: Split screen, drag-to-tune, constellation diagrams with modulation-specific mapping.
• WiFi & LTE Diagnostics: Visualize interference for indoor networks or mobile deployments.
• Drive-Test & Mapping Tools: Embedded GPS allows creation of coverage heatmaps via Google Earth.
• Web-Based Remote Control: Manage from anywhere without special software.
• Ultra Portable: Under 5 lbs and includes hard case for rugged use.
• Broad Connectivity: HDMI out, TS-ASI, IPTV multicast, CI slot for encrypted channels.
• No Subscription Lock-In: One-time purchase, full access to analyzer features.

🚀 Order from VSATPlus

At VSATPlus, we proudly offer the RANGER Neo Rack Lite ATSC along with support services tailored for engineers, technicians, and telecom providers.

Ordering from VSATPlus includes:

• Certified and updated PROMAX equipment
• Pre-sales consultation based on your signal environment
• Global delivery & integration advice
• Warranty management & firmware support
• Optional rack-mount configuration for fixed deployments

📢 Contact VSATPlus now to request a quote and upgrade your signal analysis capability today!

🌟 Conclusion: The Ultimate Analyzer for a Connected Broadcast World

The RANGER Neo Rack Lite ATSC is more than just a field strength meter — it’s a unified signal analysis platform for engineers, technicians, broadcasters, and telecom operators. Whether you’re aligning satellite antennas in the field, measuring VBER on ATSC channels, diagnosing OTT streams, or remotely monitoring signal integrity from a NOC, this tool adapts to your mission.

Lightweight, rugged, and packed with cutting-edge features like 4K decoding, IPTV stream analysis, constellation diagnostics, and SNMP alerts, the Neo Rack Lite ATSC helps keep modern digital broadcast networks healthy, resilient, and error-free.

With VSATPlus as your trusted supplier, you get expert advice, dependable logistics, and long-term support that makes your investment pay off.

🔗 Visit VSATPlus today and bring next-gen spectrum intelligence to your operations!
