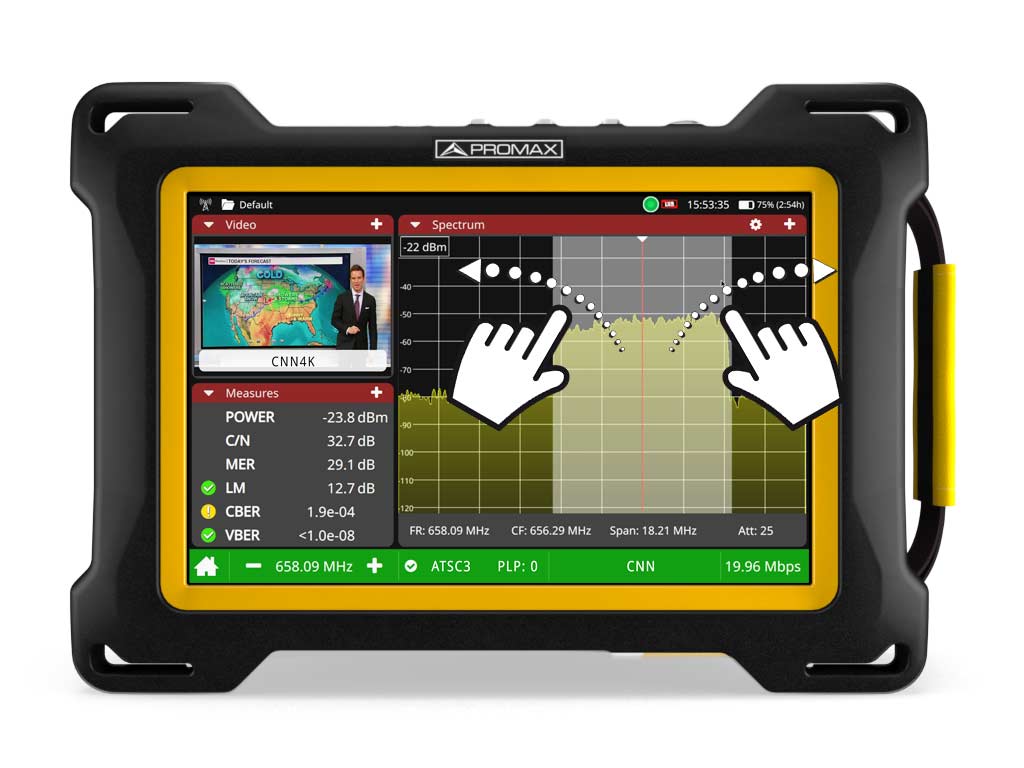

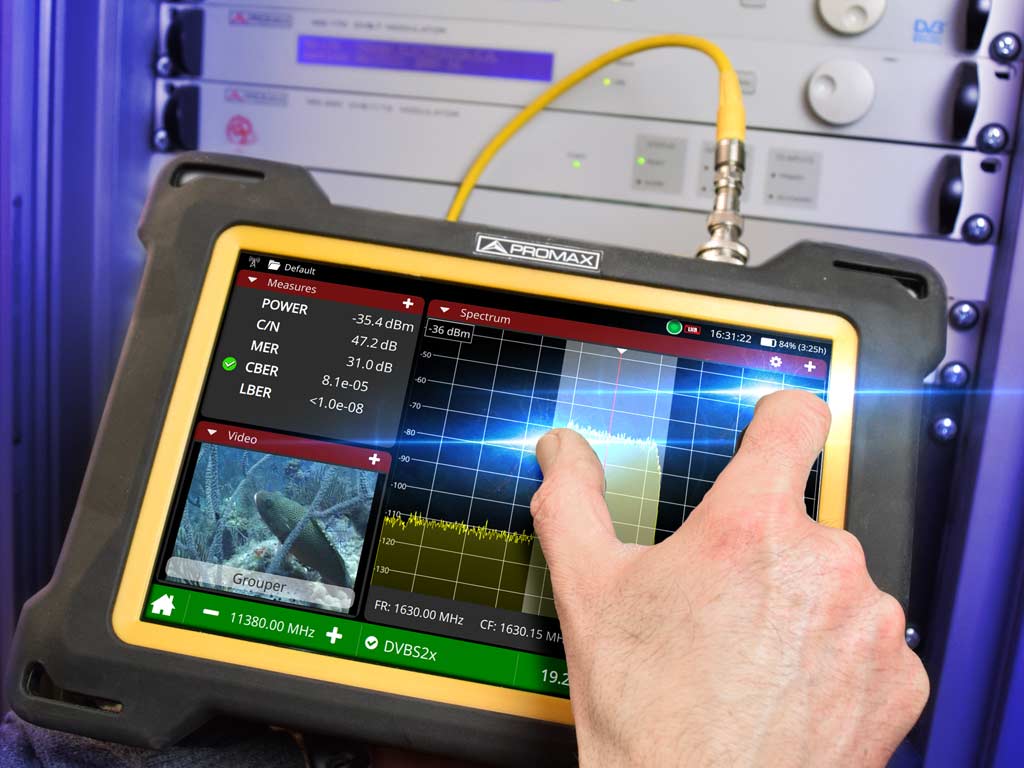

Discover the power of next-generation signal and IP broadcast analysis with the Promax ATLAS IP – a portable, ultra-versatile analyzer engineered for professionals working in digital broadcasting, IPTV, and advanced spectrum environments. Whether you’re servicing broadcast towers, aligning satellite links, or maintaining IP-based content distribution networks, the ATLAS IP provides all-in-one functionality to streamline your operations with unmatched precision and control.
⚙️ Key Features
📡 Full Broadcast Support: Supports a wide range of digital standards including DVB-T/T2, ISDB-T/Tb, ATSC 1.0 & 3.0, DVB-C/C2, DVB-S/S2/S2X, DSS, FM RDS, DAB/DAB+, PAL, SECAM, NTSC.
🎥 UHD Video Decoding: Decode MPEG-1/2, H.264, HEVC/H.265 up to 4K UHD (Main Profile Level 5.1 8b/10b).
🧪 IPTV Analysis: Perform 20+ measurements on multicast/unicast streams—Jitter, packet rate, histogram, inter-packet arrival time, T2MI & BTS reception.
📊 Ultra-Fast Spectrum Analyzer: Spans 5 MHz to 6 GHz with multiple resolution bandwidths, real-time peak hold, max/min tracing, and delta marker tools.

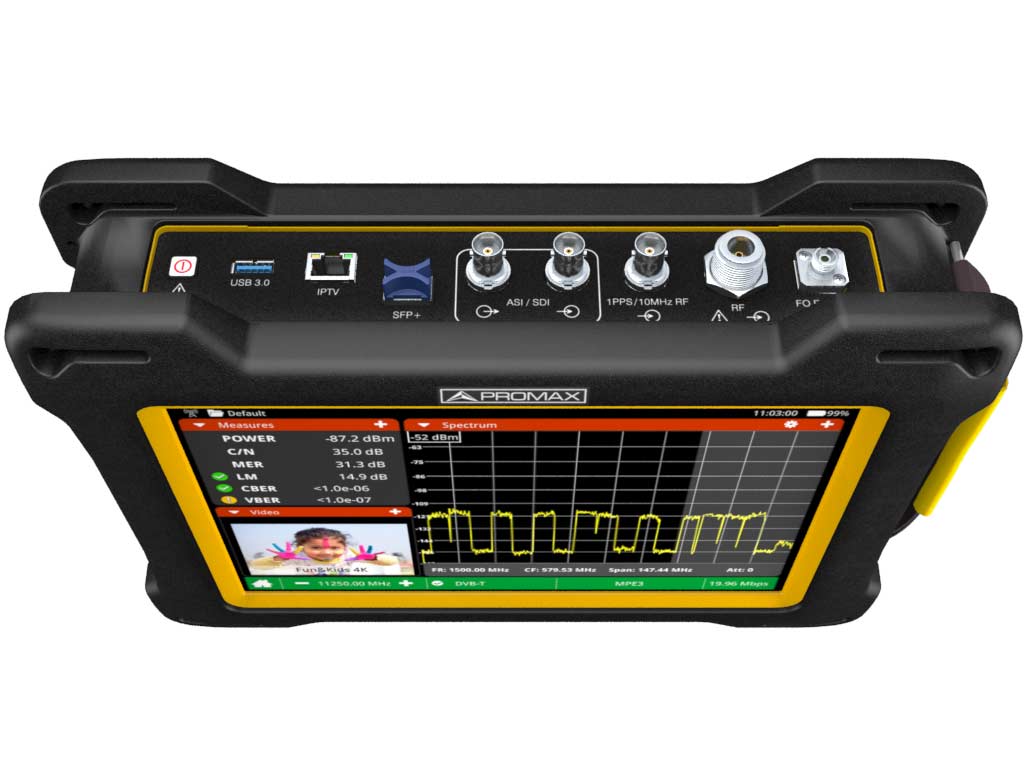

📶 Connectivity: Includes ASI/SDI I/O, HDMI output, IPTV RJ45, Optical input, USB 3.0/2.0, analog A/V input, RF input (50Ω), 10/100/1000 Mbps Ethernet.
🛰️ GNSS & GPS: Built-in GPS for accurate location and coverage mapping.
🖥️ 10.1” High-Brightness Touch Display: Operates under direct sunlight (850 cd/m²), 16:9 full-color multitouch screen.
🔁 Remote Control: Access and operate via webControl or SNMP for remote testing and diagnostics.
🔐 Comprehensive Analysis Tools: Constellation diagrams, LTE ingress test, dynamic echo analysis, RM-RFS, MER by carrier, network delay, DVB-2 MI analysis, and more.
🧰 Included Accessories
Audio/Video jack cables
RF adapters
WiFi dongle + antenna
GPS module
Monopod
Transport case
DC adapter & car lighter adapter
Transport belt & pouch
📦 Technical Specifications Summary
Feature
Specification
Frequency Range (Spectrum)
5 MHz to 6 GHz
Measurement Range
1 to 130 dBµV
IPTV Interface
RJ45, 10/100/1000 Mbps
Optical Interface
FC/APC, Optical-to-RF
Storage
8 GB internal, USB expandable
Screen
10.1” TFT, 850 cd/m², multitouch
Power Supply
>4 hrs operation w/ smart management
Decoding
MPEG-1/2/4, H.264, HEVC, Dolby, AC-4
Video Output
HDMI 1.4b, up to 3840x2160 px (30Hz)
Supported Standards
DVB-T/T2, DVB-S/S2/S2X, ISDB-T/Tb, ATSC 1.0/3.0, DAB/DAB+, DVB-C/C2, J.83B, FM RDS, Analog TV
Integrated task planner, screenshot capture, service recording, datalogging
🔍 Use Cases:
Broadcast signal monitoring & troubleshooting
Satellite and IPTV service alignment
Field strength surveys and LTE ingress detection
DVB-S/S2 and 5G/LTE interference analysis
Headend signal path validation and spectrum planning
🌐 Available Now at VSATPlus
At VSATPlus, we are proud to offer the Promax ATLAS IP Analyzer—an essential tool for broadcast engineers, IPTV technicians, and RF specialists who demand accuracy, efficiency, and adaptability. Explore, analyze, and secure your signal workflows with the industry’s most advanced portable analyzer.
