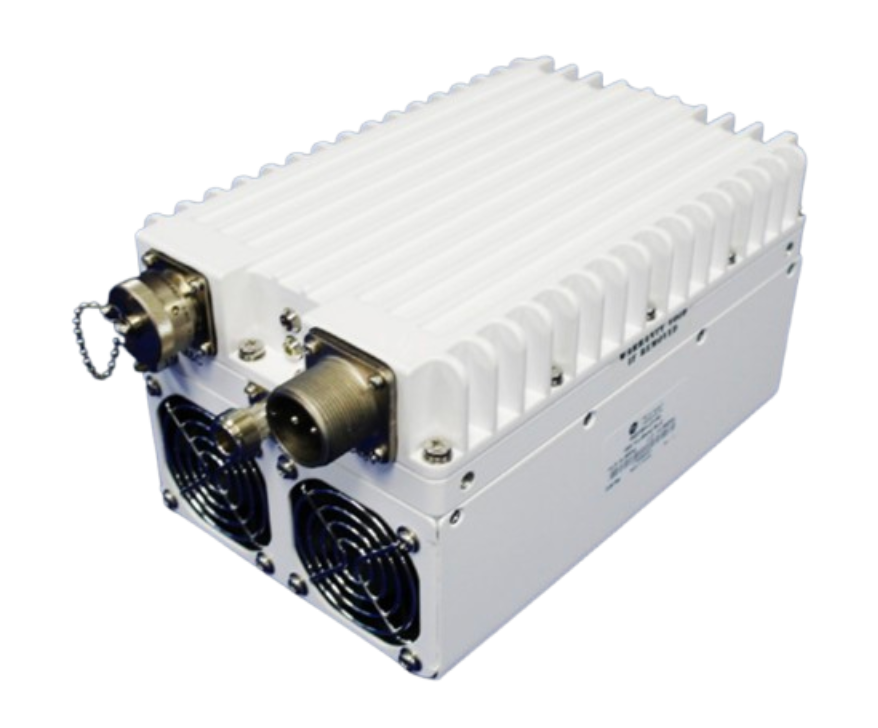

The Norsat MEDIAN Series 16W Ku-Band Block Upconverter (BUC) is a reliable and performance-driven solution, engineered specifically for VSAT applications where compact form factor and robust operation are essential.
Tailored for satellite professionals who need dependable RF transmission, the MEDIBKU016 is available in both Standard and Extended Ku-band models. It delivers 42 dBm of power and is ideal for fixed and mobile VSAT deployments, broadcast, disaster recovery, and tactical communications.
At VSATPlus, we are proud to offer the MEDIBKU016 as part of our Norsat product lineup — ready for global shipping and technical support. You can order it directly from our website, or contact our team for a quote.
| Category | Specification |
|---|---|
| Frequency Bands | Standard: 14.0 – 14.5 GHzExtended: 13.75 – 14.5 GHz |
| Input Frequency | Standard: 950 – 1450 MHzExtended: 950 – 1700 MHz |
| LO Frequency | Standard: 13.05 GHzExtended: 12.80 GHz |
| Output Power (P1dB) | 42 dBm minimum |
| Gain | 65 dB nominal |
| Gain Flatness | ±1.5 dB (standard), ±2.0 dB (extended), ±0.5 dB (36 MHz) |
| Gain Variation | ±1.5 dB over temp, ±0.5 dB over 24 hrs |
| Spurious Output | -55 dBc max |
| IM3 | 25 dBc at 3 dB back-off |
| Gain Adjustment | 20 dB |
| Phase Noise | -73 dBc/Hz @ 1 kHz, -103 dBc/Hz @ 1 MHz |
| External Reference | 10 MHz, -5 to +5 dBm |
| Input VSWR | 1.5:1 |
| Output VSWR | 1.25:1 |
| Input Connector | Type-N, Female |
| Output Connector | WR75-G (grooved) |
| Power Input | +36 to +72 VDC (48 VDC nominal) |
| Power Consumption | 130W (rated), 115W (3 dB back-off) |
| M&C Interface | RS-232 / RS-485 / Ethernet |
| M&C Connector | MS3112E 14-19P |
| LED Indicators | Red, Yellow |

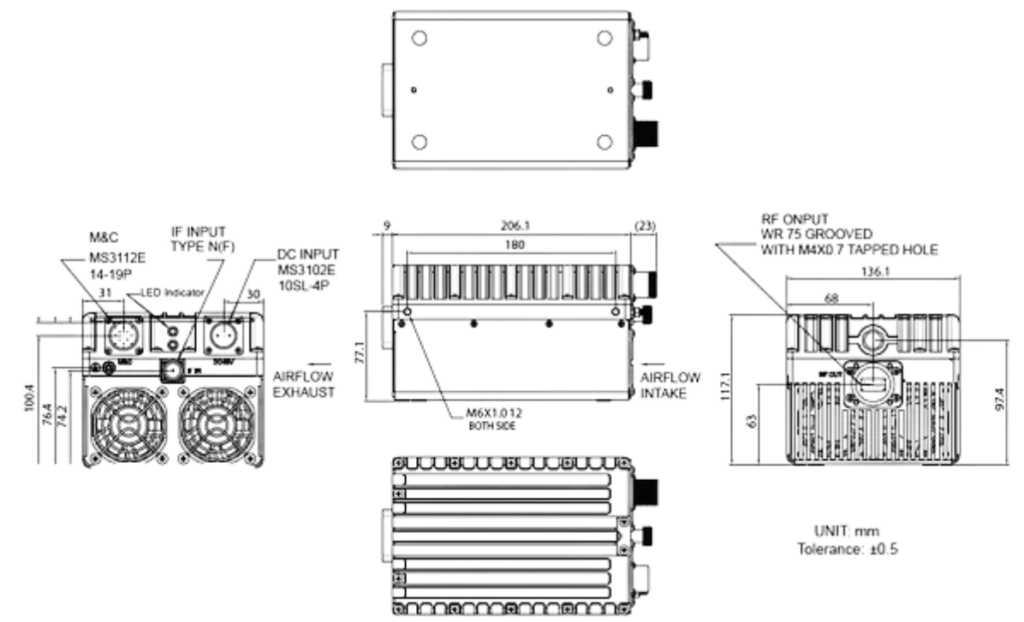

| Dimensions (LxWxH) | 206 x 136 x 117 mm |
| Weight | 4.5 kg |
| Operating Temperature | -30°C to +55°C |
| Humidity Protection | IP65 |
The Norsat MEDIBKU016 is available now at VSATPlus — your go-to provider for high-performance satellite communication hardware.
