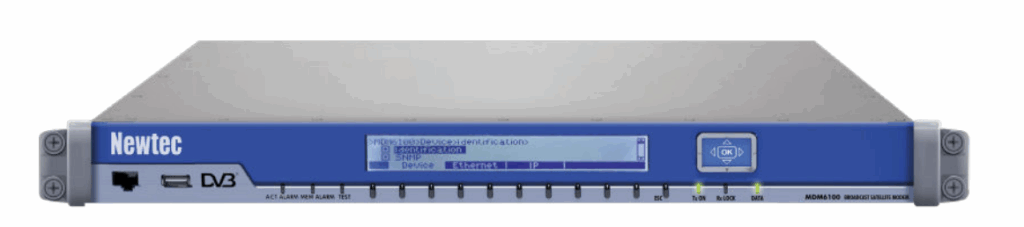

MDM6100 Broadcast Satellite Modem | Next-Gen Efficiency for Broadcast Distribution

🔍 Introduction: The Broadcast Standard Redefined

The MDM6100 Broadcast Satellite Modem is the industry-leading DVB-compliant modem from ST Engineering iDirect, designed specifically for broadcast applications requiring exceptional throughput, bandwidth efficiency, and flexibility. Supporting DVB-S, DVB-DSNG, DVB-S2, and the advanced DVB-S2X standards, this modem is a modular and scalable solution tailored for the future of satellite contribution, distribution, and direct-to-home (DTH) services.

Available now through VSATPlus, the MDM6100 offers broadcasters a future-proof, carrier-grade platform packed with innovative technologies like Clean Channel Technology™, Equalink® 3 pre-distortion, Carrier ID, and integrated TS analyzers. It can operate as a modulator, demodulator, or modem, making it one of the most versatile solutions on the market.

✨ Key Features of the MDM6100

• Multi-standard DVB support: DVB-S, DVB-S2, DVB-S2X, DVB-DSNG, S2 Extensions
• Clean Channel Technology™: Enhances bandwidth efficiency up to 15%
• Equalink® 3: Pre-distortion for up to 10% bandwidth gain without service interruption
• High Throughput: Baud rates up to 72 Mbaud; data rates up to 216 Mbps

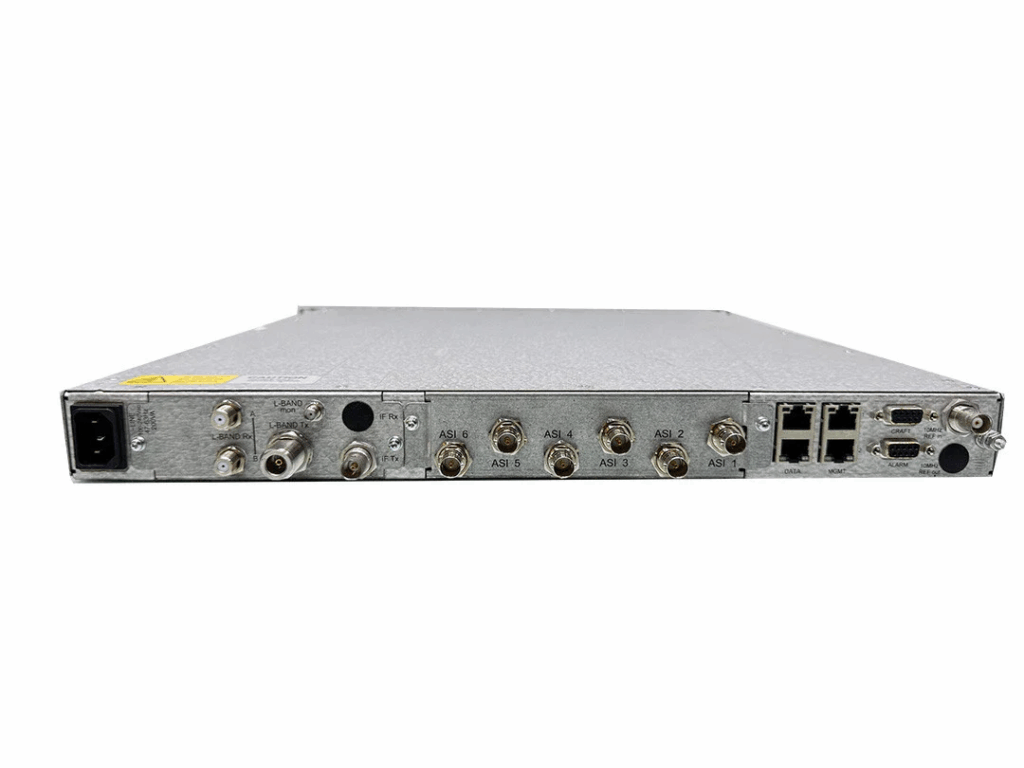

• Flexible I/O: Dual ASI, Ethernet with SMPTE 2022 FEC, L-Band/IF/RF outputs
• Carrier ID Compliant (DVB-CID): For interference reduction
• Dual Functionality: Operates as modulator, demodulator or full modem
• Upconverter Integration: Optional C-band or Ku-band upconverter
• Redundancy Ready: 1+1 and N+1 topologies with <50ms switching
• Extensive Modulation Options: QPSK up to 256APSK (linear and non-linear)
• Fully Remote-Controlled: Web GUI, SNMP, and REST API support

🔹 Technical Specifications Table

📅 Usage Scenarios

• DTH Broadcasting: High-efficiency satellite uplinks with robust encryption and redundancy.
• Primary Distribution: Headend-to-headend transport using DVB-S2X and MPE streams.
• Contribution Links: Field units and OB vans transmitting high-throughput live feeds.
• Signal Transmodulation: DVB-S to DVB-S2X upgrades without IRD replacement.
• Network Migration: Smooth upgrade paths via software licenses (e.g., ASI to IP, S2 to S2X).
• Disaster Recovery Links: Temporary links with redundancy and rapid deployment.

Benefits and Advantages

• Unmatched Flexibility: Operates as a modulator, demodulator, or modem.
• Built-In Redundancy Logic: Ensures no single point of failure in your transmission chain.
• Future-Ready Platform: Feature-based upgrades let you expand capabilities without hardware swaps.
• Exceptional Efficiency: Up to 25% bandwidth saving with Clean Channel + Equalink® 3.
• Integrated Monitoring: Internal TS analyzer and PRBS test generator.
• Dual Power Supply Options: Ensures uptime in mission-critical deployments.
• Global Compliance: CE, UL certified; NMS/OSS compatible for large networks.

🚀 Order from VSATPlus

📢 Contact VSATPlus today to request a quote and bring your broadcast network into the DVB-S2X era.

🌟 Conclusion: Powering the Future of Broadcast Satellite Connectivity

The MDM6100 isn’t just a modem — it’s a platform for growth. Whether you’re building a new DTH service, upgrading a headend, or deploying high-availability contribution links, this unit delivers the flexibility, performance, and reliability needed for today’s complex broadcast workflows.

Equipped with multi-standard modulation, next-gen FEC, advanced RF tools, and seamless IP integration, it enables broadcasters to achieve more with less bandwidth — translating directly into cost savings and operational stability.

With VSATPlus as your integration partner, your deployment is fully supported from design to deployment.

🔗 Start your journey toward next-gen satellite broadcasting with the MDM6100. Order now from VSATPlus!
