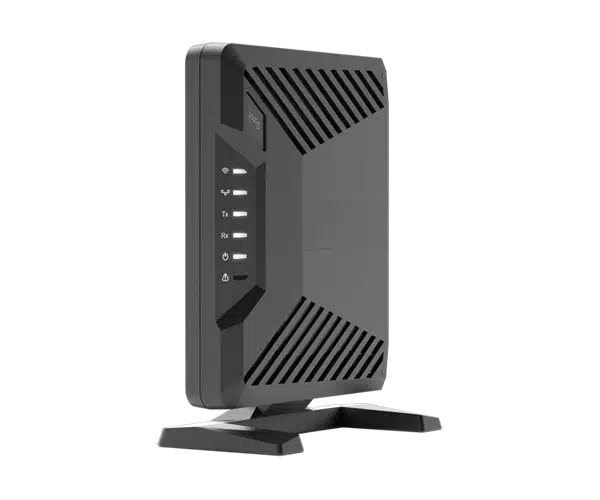

In the evolving world of satellite communications, efficiency, flexibility, and performance are the cornerstones of innovation. The ST Engineering iDirect MDM2010 Satellite Modem perfectly embodies these values. Designed to deliver exceptional performance across consumer, enterprise, and government markets, the MDM2010 provides a compact yet powerful solution for two-way broadband connectivity.
At VSATPlus, we proudly offer the MDM2010 as part of our expanding portfolio of next-generation satellite communication equipment. Whether you’re establishing a small business network in a remote region, enabling government communications, or delivering broadband to rural communities, the MDM2010 modem ensures seamless connectivity and high throughput.
The MDM2010 is part of the Newtec Dialog modem series — a line of two-way, high-throughput DVB-S2X modems built to meet diverse application requirements. The Dialog platform allows different modems from the same family to coexist in one network, offering unmatched flexibility and scalability.
Built for DVB-S2X forward links and Mx-DMA MRC (Multi-Resolution Coding) return channels, this modem combines advanced modulation and coding schemes with highly efficient network management tools.
Its small footprint, low power consumption, and user-friendly web interface make it ideal for consumer broadband, SOHO, SME, government, education, and enterprise users who need reliable and affordable satellite connectivity.
The MDM2010 leverages DVB-S2X technology and advanced coding schemes to improve throughput and reduce bandwidth costs. Its flexible Mx-DMA MRC return channel dynamically allocates capacity, ensuring every user gets optimal bandwidth without waste.
Whether you’re running a small VSAT network or a multi-site enterprise, the Dialog platform enables seamless integration of multiple modems, all managed from one system. This scalability makes it a future-proof choice for growing operations.
With the Point & Play function, the modem automatically adjusts and locks onto the satellite signal, making installation faster and less dependent on specialized technicians.
Designed for durability, the MDM2010 operates reliably across challenging conditions — from hot desert environments to humid tropical regions.
From rural broadband to mobile backhaul, government networks, and educational connectivity, the MDM2010 suits a broad range of communication needs.
| Market | Example Usage |
|---|---|
| Consumer Broadband | Internet access for rural homes and remote areas |
| SME / SOHO | Affordable satellite Internet for small businesses |
| Government | Reliable data and voice communications for remote offices |
| Education | Connectivity for rural schools and online learning |
| Enterprise | Business-grade IP connectivity for distributed networks |
| Emergency Response | Quick deployment of satellite links during disasters |
| Category | Specifications |
|---|---|
| Forward Link (Rx) | DVB-S2 / DVB-S2X — QPSK, 8PSK, 16APSK, 32APSK, 64APSK |
| Return Link (Tx) | Mx-DMA MRC or MF-TDMA — QPSK, 8PSK, 16APSK, 32APSK, 64APSK, 4CPM |
| Symbol Rates | Forward: 256 ksps to 500 Msps; Return: up to 10 Msps |
| Frequency (Tx) | 2750 – 3000 MHz |
| Frequency (Rx) | 950 – 2150 MHz |
| Tx Level | 0 dBm |
| Rx Level | –65 to –25 dBm |
| LNB Power | 13/18VDC, 500mA |
| LAN Interface | 1 x 10/100/1000 Mbps Ethernet (Auto MDI/MDIX) |
| Wi-Fi (Optional) | 802.11 b/g/n, 2.4 GHz |
| MicroSD Slot | Supported for additional storage |
| Input Voltage | 50Hz 220–260 V / 60Hz 100–130 V / 24VDC |
| Power Consumption | Modem: 21W max, Mains: 60W max |
| Operating Temperature | 0°C to +40°C (32°F to +104°F) |
| Storage Temperature | –10°C to +60°C (14°F to +140°F) |
| Humidity | 5–95% non-condensing |
| Dimensions | 8.2 × 17.7 × 21.2 cm (3.23 × 6.96 × 8.34 in) |
| Weight | 0.48 kg (1.05 lbs) |
The MDM2010 modem can be paired with a variety of ODU configurations for Ku-band and Ka-band operation, giving users complete flexibility for different link budgets and coverage requirements.
| ODU Type | Antenna Size | Frequency Range (Rx/Tx) | Return Waveform | Interface |
|---|---|---|---|---|
| ILB2140 / ILB2141 | 0.75m / 1.2m | Ku-band: 10.7–12.75 / 13.75–14.5 GHz | 4CPM Only | 2x F-type |
| ILB2220 / ILB2221 | 0.75m / 1.2m | Ka-band: 18.1–20.2 / 28.1–30.0 GHz | 4CPM Only | 1x F-type |
| ILB3210 | 0.75m / 1.0m | Ka-band: 17.7–20.2 / 29.0–30.0 GHz | Mx-DMA MRC | 1x F-type |
These outdoor units are designed for high reliability, low power consumption, and all-weather performance.
At VSATPlus, we don’t just provide equipment — we deliver solutions. The MDM2010 Satellite Modem is part of our commitment to helping businesses and organizations deploy robust satellite networks with the latest technology.
Governments and ISPs can deploy cost-effective satellite terminals based on the MDM2010 to extend broadband access to remote and underserved communities.
For businesses requiring reliable network redundancy, the MDM2010 provides a high-performance failover link, ensuring continuous connectivity even during terrestrial outages.
Schools and universities in rural areas can leverage MDM2010 terminals for remote learning, online exams, and digital resource access.
In emergency response operations, its quick setup and portability allow first responders to establish communications within minutes.
| Feature | Benefit |
|---|---|
| DVB-S2X Support | Improved throughput and efficiency |
| Mx-DMA MRC Return Channel | Dynamic bandwidth allocation |
| Low Power Consumption | Energy-efficient for remote operations |
| Web GUI | Simplified configuration and monitoring |
| Compact Design | Ideal for space-constrained deployments |
| Multilingual Interface | Global usability |
| Flexible ODU Options | Ku and Ka-band compatibility |
The ST Engineering iDirect MDM2010 Satellite Modem represents the next step in broadband satellite connectivity — a perfect combination of performance, flexibility, and reliability. It’s designed for a wide range of markets, providing robust Internet access and data communication capabilities for users worldwide.
At VSATPlus, we make it easier than ever to integrate the MDM2010 into your communication network. Whether you’re expanding coverage, building a new VSAT system, or upgrading your existing infrastructure, the MDM2010 offers unbeatable value.
📡 Order your MDM2010 Satellite Modem today from VSATPlus and experience high-efficiency, high-reliability connectivity — anywhere on the planet.
