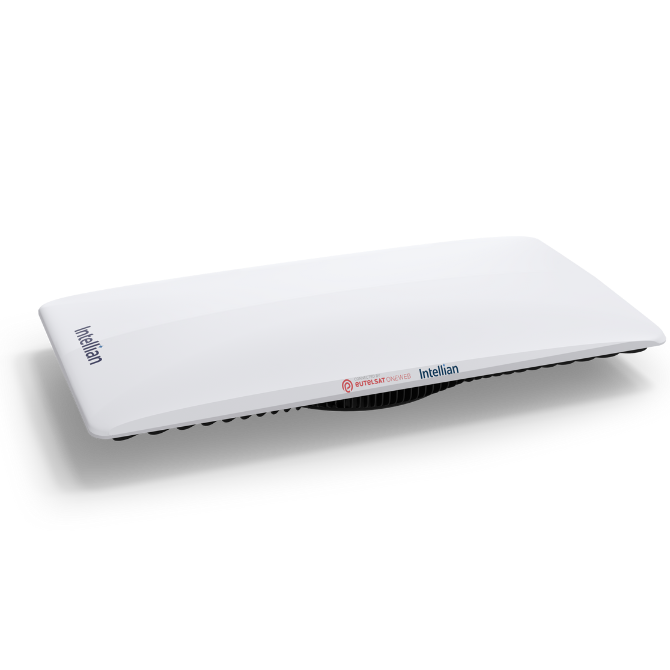

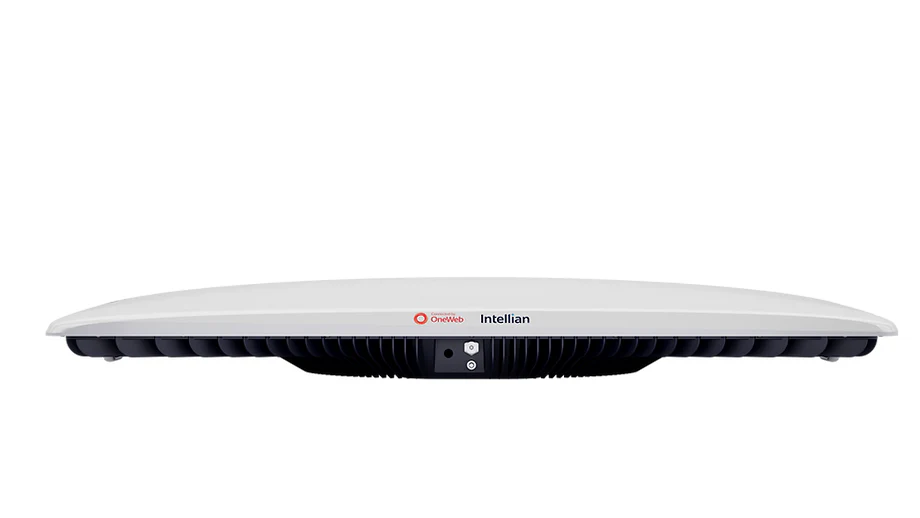

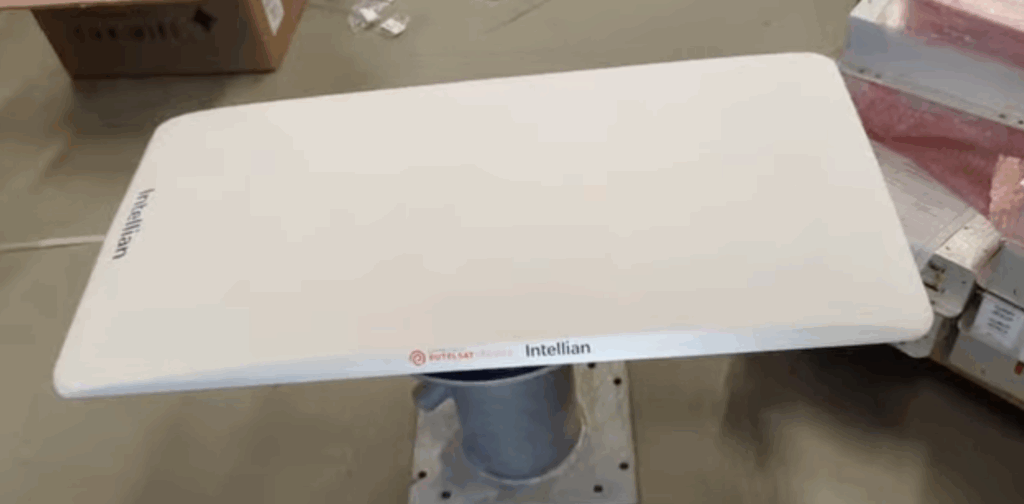

As the demand for high-speed, low-latency communications at sea continues to grow, modern vessels require satellite terminals that offer robust performance, easy installation, and high reliability. The Intellian OW11FM answers this call by providing a powerful flat panel user terminal for cruise ships, ferries, merchant vessels, energy platforms, government fleets, and superyachts.
Now available at VSATPlus, the OW11FM leverages state-of-the-art antenna design and advanced tracking to deliver consistent, uninterrupted broadband via the OneWeb network — even in motion or harsh environments.
Category | Specifications |
---|---|
Above Deck Unit (ADU) | |
Dimensions | 97 x 50 x 13 cm (38.2" x 19.7" x 5.1") |
Weight | 20.5 kg (45.1 lb) |
G/T | 10.7 dB/k |
EIRP | +36.6 dBW (Dual Carrier) |
Operating Temperature | -40°C to +55°C (-40°F to +131°F) |
Ingress Protection | IP66 |
Interface | F-Type Port, SMA Port (GNSS) |
Max Downlink | 195 Mbps * |
Max Uplink | 32 Mbps * |
* | Consult OneWeb for actual service availability |
Below Deck Units (CNX Options) | |
CNX-WIFI | 21 x 17 x 8 cm, 0.6 kg, IP44, WiFi-6, 4-port GigE |
CNX-MOBILITY | 30 x 20 x 4 cm, 1.5 kg, IP56, 4-port GigE, WiFi-6 |
CNX-RACK-AC | 44.2 x 25 x 4.4 cm, 6.3 kg, IP31, 8-port GigE, WiFi dongle |
Power Supply | Embedded 450W or external AC/DC depending on model |
Installation Interfaces | Single coaxial cable (Power + Data) |
Mount Options | Pole, Mast, Pedestal (60 mm compatible) |
At VSATPlus, we are proud to supply Intellian OW11FM, backed with integration consulting, installation guidance, and post-sale support. We help you select the correct CNX unit for your vessel and ensure network readiness for OneWeb services.
Ordering with VSATPlus means:
📢 Contact VSATPlus today to request a quote for OW11FM and upgrade your fleet’s connectivity!
The Intellian OW11FM is more than just a user terminal — it is a game-changer in maritime broadband. Offering carrier-grade speeds, dependable connectivity at sea, and a rugged yet compact design, it empowers operators across industries.
Whether you manage a fleet of commercial ships or run high-end yacht communications, the OW11FM provides the bandwidth, efficiency, and ease of use that modern maritime operations demand. Combined with OneWeb’s low-latency network and VSATPlus expertise, it is your gateway to smarter, faster, and more secure maritime communications.
🔗 Order now from VSATPlus and set sail with next-generation satellite connectivity!
