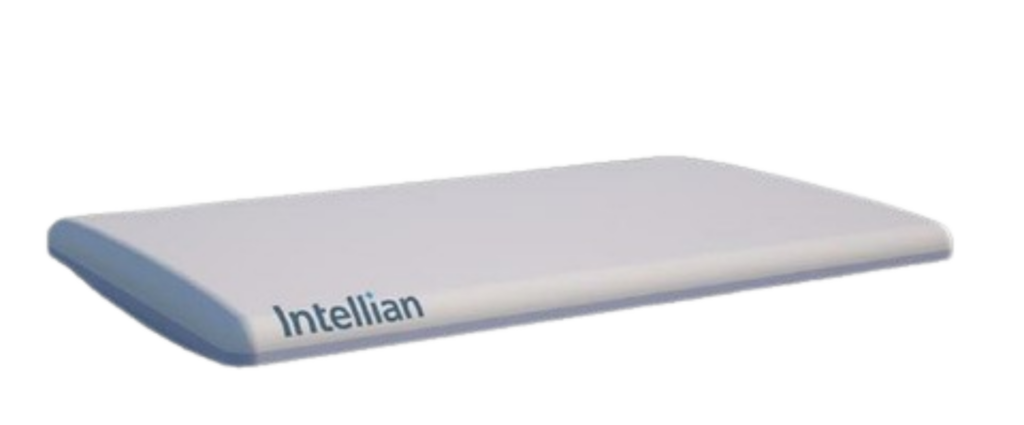

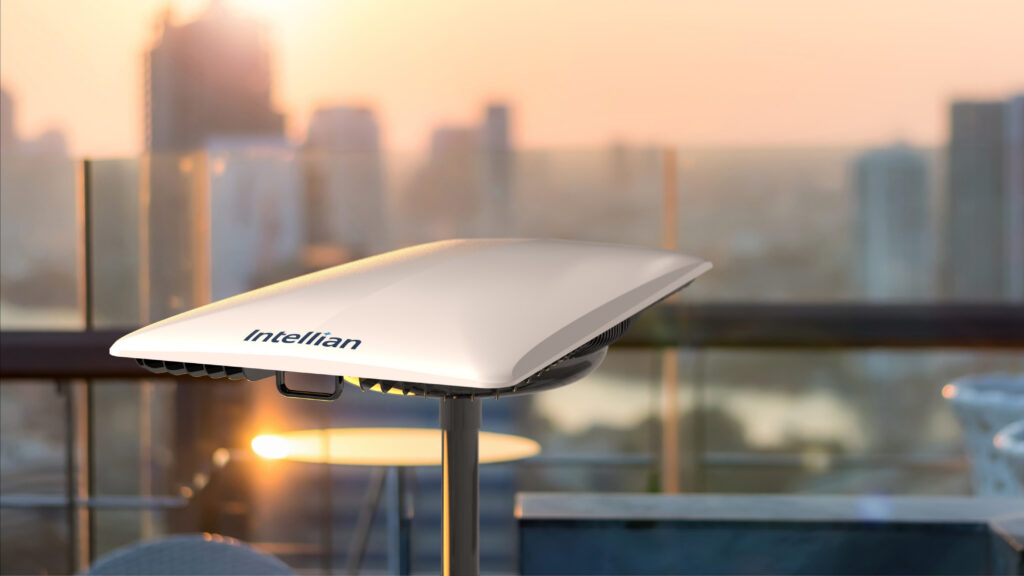

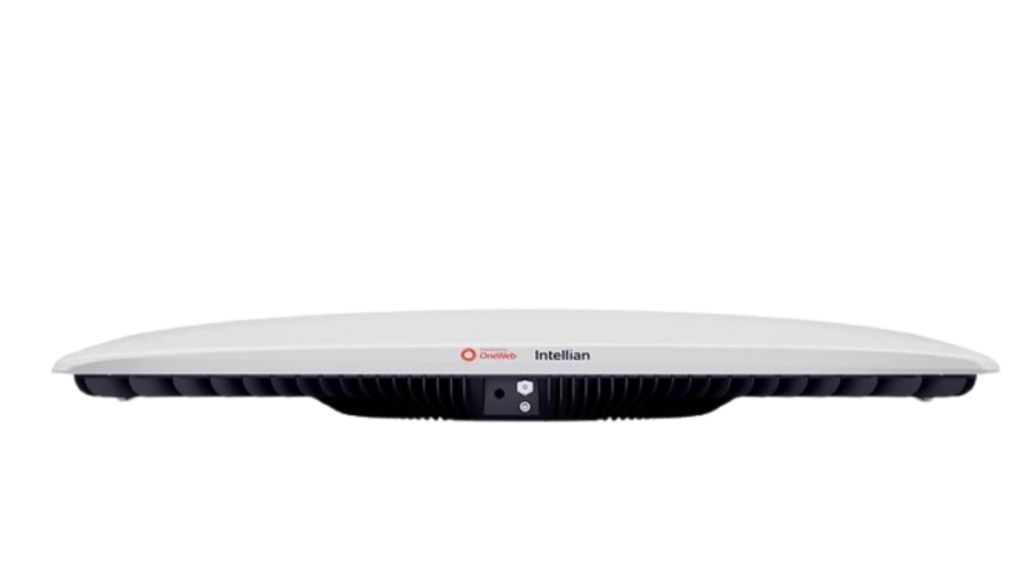

The Intellian Technologies OW11FL is an advanced enterprise-grade flat panel satellite terminal designed for land fixed applications operating on the Eutelsat OneWeb LEO network. Engineered with Active Electronically Scanned Array (AESA) technology, the OW11FL delivers high reliability, strong link margins, seamless handovers, and consistent broadband performance for enterprise, government, community broadband, and cellular backhaul deployments.
At VSATplus, we supply the Intellian OW11FL as part of our enterprise satellite connectivity portfolio. Organizations can order the OW11FL directly from VSATplus with technical consultation, integration support, and deployment guidance.
The OW11FL is purpose-built to meet strict SLA and CIR commitments for enterprise customers . Unlike traditional mechanically steered antennas, the OW11FL uses electronically steered beamforming technology to track LEO satellites dynamically without moving parts.
According to the specification sheet (page 1), the OW11FL is optimized for:
Its AESA architecture ensures:
The OW11FL consists of:

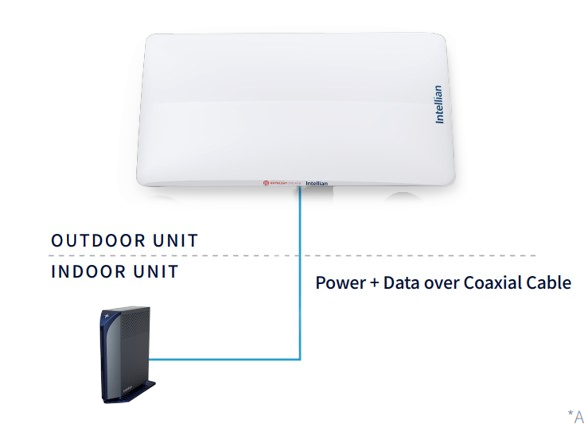

Power and data are delivered over a single coaxial cable between indoor and outdoor units , simplifying installation and reducing cabling complexity.
AESA technology eliminates mechanical steering. Instead of physically moving the antenna, the beam is electronically steered.
This is critical in LEO constellations like OneWeb, where satellites move rapidly across the sky.
The OW11FL delivers:
High link margin ensures stable connectivity even:
The OW11FL supports continuous satellite handovers even at the lowest elevation angles encountered in equatorial regions .
This ensures:
Operating temperature:
Ingress protection:
This makes the OW11FL suitable for:
The OW11FL features:
Single-person installation is possible due to its optimized form factor.
| Parameter | Specification |
|---|---|
| Dimensions | 97 x 50 x 13 cm |
| Weight | 20.5 kg |
| Operating Temperature | -40°C to +55°C |
| Ingress Rating | IP66 |
| G/T | 10.7 dB/K |
| EIRP | +36.6 dBW (Dual Carrier) |
| Downlink | 195 Mbps |
| Uplink | 32 Mbps |
| Interface | F-Type Port, SMA Port (R-GNSS) |
| Parameter | Specification |
|---|---|
| Dimensions | 21 x 17 x 8 cm |
| Weight | 0.6 kg |
| Operating Temp | 0°C to +40°C |
| Ingress | IP44 |
| Interfaces | WiFi-6, 4-port GigE RJ45, F-Type |
| Parameter | Specification |
|---|---|
| Dimensions | 44.2 x 25 x 4.4 cm (1RU) |
| Weight | 6.3 kg |
| Operating Temp | -25°C to +55°C |
| Ingress | IP31 |
| Interfaces | 8-port GigE RJ45, WiFi dongle, F-Type |
| Power | Embedded 450W dual power modules (AC/DC) |
Ideal for corporate offices, data centers, and branch networks requiring high-availability broadband.
Supports rural broadband initiatives with reliable LEO performance.
Delivers up to 195 Mbps downlink capacity for LTE and 5G base stations.
Secure, SLA-driven connectivity for public sector infrastructure.
✔ AESA flat panel technology (no moving parts)
✔ High link margin and performance at low elevation angles
✔ Seamless LEO satellite handovers
✔ Harsh environment capability (-40°C to +55°C)
✔ Single cable power + data architecture
✔ Flexible CNX indoor configurations
✔ Compact, lightweight enterprise design
VSATplus provides:
Our engineering team ensures correct configuration for enterprise, cellular backhaul, and government deployments.
The Intellian OW11FL Enterprise Flat Panel is a next-generation LEO satellite terminal engineered for enterprise-grade performance. With AESA technology, high throughput, seamless handovers, strong link margins, and extreme environmental durability, it delivers dependable broadband connectivity for mission-critical applications.
For organizations seeking reliable OneWeb LEO connectivity, VSATplus offers the Intellian OW11FL with professional support and global delivery. Contact VSATplus today to order this enterprise flat panel solution and elevate your satellite network performance.
