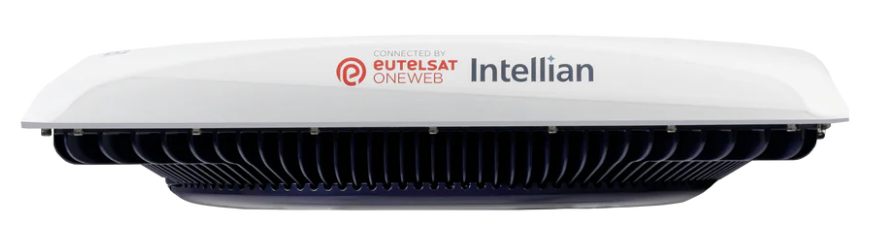

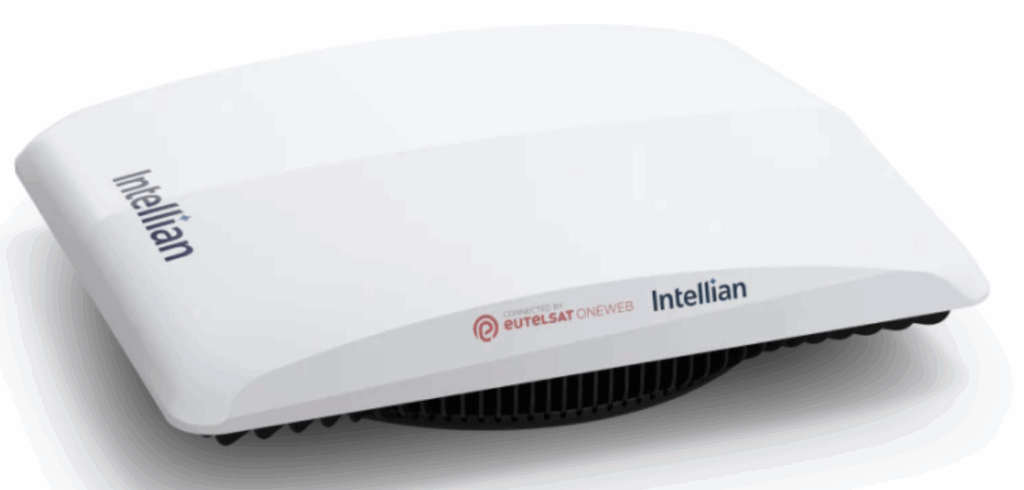

Intellian OW10HV | Compact Flat Panel for Land Mobile Connectivity

by Hamid Bagheri  |  May 10, 2025

In today’s mission-critical operations, real-time connectivity on the move is no longer optional — it’s essential. The Intellian OW10HV answers this demand by delivering reliable broadband connectivity to vehicles in challenging environments, whether in emergency response, forestry operations, or logistics fleets. Lightweight, durable, and compact, this flat panel terminal integrates seamlessly with the OneWeb network to ensure high-speed performance in motion.

Now available at VSATPlus, the OW10HV provides an efficient and highly mobile connectivity solution for any organization requiring continuous communication in land mobile applications.


  • Compact and Lightweight: Only 12.2 kg and 56 x 45 x 12 cm, easily installable on any vehicle.
  • High-Speed Connectivity: Achieves peak downlink speeds up to 75 Mbps and uplink up to 14 Mbps.
  • AESA Antenna Technology: Electronically steered beam for enhanced tracking and fast handovers.
  • Ruggedized Design: Built to operate in extreme temperatures from -40°C to +55°C with IP66 protection.
  • Seamless Handovers: Maintains consistent connectivity even at low elevation angles or while in motion.
  • One Cable Setup: Combined data and power over coax simplifies installation.
  • Mobile App Support: Enables fast configuration, monitoring, and troubleshooting.

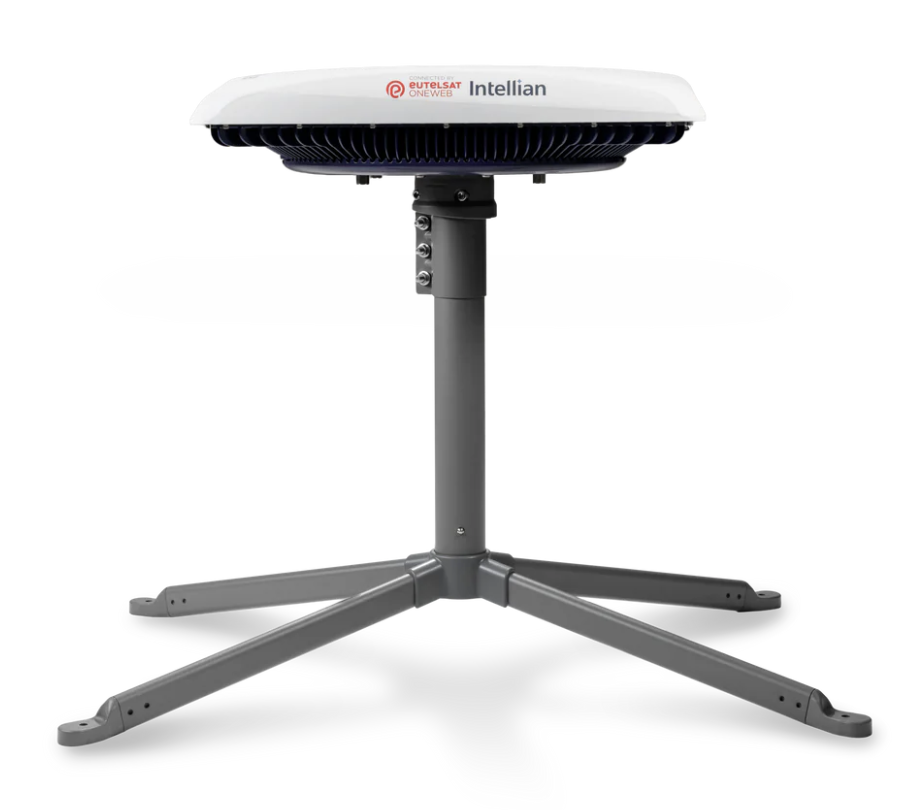

  • Flexible Mounting: Designed for crossbar mounts on various vehicle types.
  • Multiple CNX Options: Supports CNX-BB, CNX-WIFI, CNX-MOBILITY, CNX-RACK-AC for customized network integration.

CategorySpecifications
Outdoor Unit Dimensions56 x 45 x 12 cm (22" x 17.7" x 4.7")
Outdoor Unit Weight12.2 kg (26.9 lb)
G/T (Gain-over-Temperature)9 dB/k
EIRP (Effective Isotropic Radiated Power)+36.6 dBW (Dual Carrier)
Operating Temperature (Outdoor Unit)-40°C to +55°C (-40°F to +131°F)
Ingress ProtectionIP66
InterfacesF-Type Port, SMA Port (GNSS)
Peak Downlink RateUp to 75 Mbps *
Peak Uplink RateUp to 14 Mbps *
Mount Adapter Dimensions93 x 23 x 4 cm (36.6" x 9.1" x 1.6")
Mount Adapter Weight5 kg (11 lb)
Mount TypeVehicle cross bars
In-Vehicle CNX OptionsBB, WIFI, MOBILITY, RACK-AC
CNX Interfaces1-8 GigE RJ45 ports, WiFi-6, F-Type connectors, optional WiFi dongle
Power SupplyExternal or embedded depending on model (DC or AC)
Ingress Protection (CNX)IP44 to IP56 depending on variant
CNX Operating Temp0°C to +55°C (some down to -25°C)
Control & MonitoringVia Intellian Mobile App

*Actual performance may vary depending on OneWeb regional service availability.


  • Designed for Mobility: Slim and aerodynamic build fits easily on the roof of any size vehicle.
  • Quick Deploy: Installation can be completed by a single technician in a short time.
  • Field-Proven Performance: Operates flawlessly in desert heat, arctic cold, and rough terrain.
  • Future-Proof Platform: Compatible with OneWeb’s low-latency network and adaptable to hybrid connectivity.
  • Simple Operation: Mobile app reduces need for specialized configuration expertise.
  • Flexible Network Setup: Choose from 4 CNX units based on your data and power needs.

VSATPlus is an authorized distributor of Intellian OW10HV and a OneWeb partner. When you choose VSATPlus, you gain:

  • Certified hardware directly from Intellian
  • Pre-deployment consultation to choose the right CNX unit
  • Fast delivery and optional installation support
  • Ongoing technical assistance and warranty service

📢 Contact VSATPlus today to request a quote and deploy OW10HV for your mobile fleet!


The Intellian OW10HV bridges the gap between mobile operation and always-on broadband. With a compact footprint, robust construction, and intelligent electronics, it delivers unparalleled land mobile connectivity across industries. Whether for emergency communications, asset monitoring, or public service, it performs where others fail.

Integrated with OneWeb’s low-earth orbit (LEO) satellite network, the OW10HV offers true mobility, resilience, and responsiveness. Combined with VSATPlus expertise, it is the ideal solution to power next-generation mobile connectivity.

đź”— Get in touch with VSATPlus and bring the OW10HV to your mission-critical operations today!
