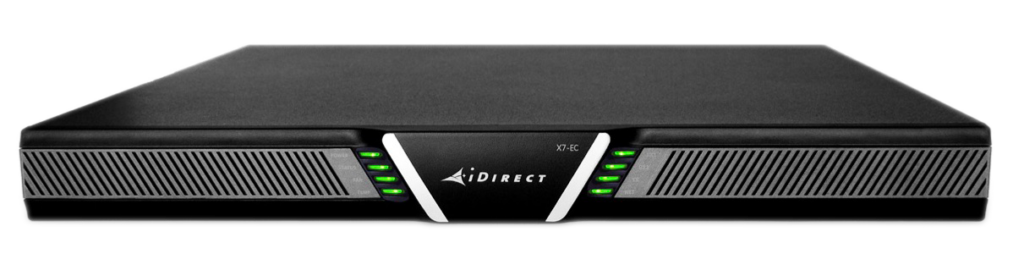

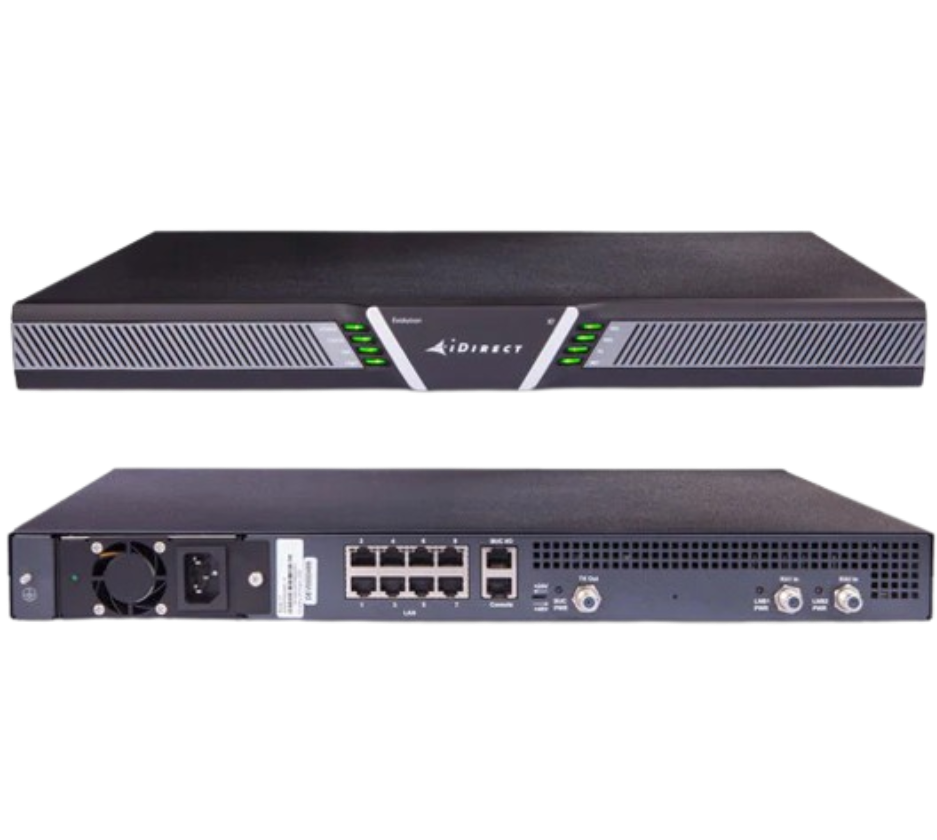

The VT iDirect X7 Satellite Router is a next-generation enterprise-class VSAT remote engineered for high-performance broadband over satellite networks. Supporting DVB-S2 with Adaptive Coding and Modulation (ACM) on the outbound and Adaptive TDMA (ATDMA) on the return, the X7 is built to handle demanding enterprise, mobility, government, and service provider applications.
At VSATplus, we supply the VT iDirect X7 Satellite Router with full technical consultation, configuration support, and global shipping. Organizations seeking reliable, scalable satellite connectivity can order the X7 directly from VSATplus for professional VSAT deployments.
The X7 is designed for star topology networks, delivering high downstream capacity and efficient upstream bandwidth management . With powerful modulation support, an embedded 8-port Ethernet switch, dual demodulator capability, and flexible power options, it provides a complete enterprise VSAT solution in a compact 1RU rack-mount chassis.
It supports:
This makes the X7 ideal for high-capacity enterprise branches, cellular backhaul, and mission-critical satellite networks.
The X7 can deliver high-speed downstream capacity for:
Adaptive Coding and Modulation ensures optimized throughput under varying weather and link conditions.
Efficient TDMA bandwidth allocation ensures:
Spread spectrum enhances interference resistance and network reliability.
| Parameter | Specification |
|---|---|
| Tx IF | Type-F, 950 – 1950 MHz |
| Rx IF | Type-F, 950 – 2150 MHz |
| Tx Composite Power | +3 dBm / -35 dBm |
| BUC Reference | 10/50 MHz via IFL |
| BUC Power | +24V (118W max) / +48V (158W max optional) |
| LNB Power | +19V nominal, 22kHz DiSEqC tone |
| Feature | Specification |
|---|---|

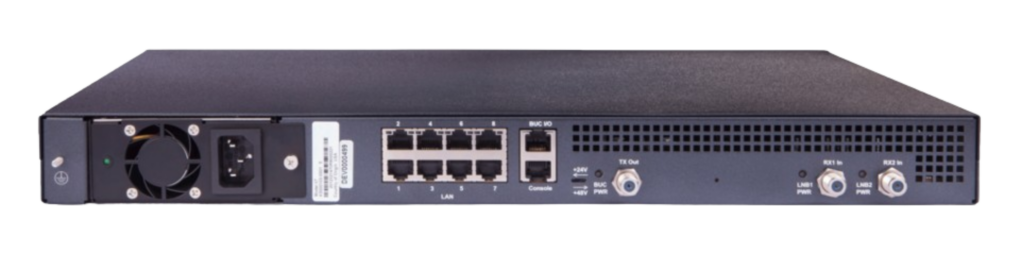

| LAN | 8-port Ethernet switch, 10/100, 802.1q VLAN |
| Console | RS-232 (RJ45) |
| RS-422 | RJ45 (future release) |
The integrated 8-port switch reduces external hardware needs and simplifies enterprise deployment.
Ensures secure satellite data transmission for enterprise and government networks.
The X7 supports:
This allows seamless integration into corporate WAN and hybrid satellite-terrestrial environments.
Supported features include:
This ensures mission-critical applications such as VoIP, video conferencing, and ERP systems receive priority bandwidth.
| Parameter | Specification |
|---|---|
| Size | 17.5” x 12” x 1.75” (1RU) |
| Weight | 10 lbs (4.54 kg) |
| Operating Temp | 0° to +50°C |
| Humidity | 90% non-condensing |
| Input Voltage | 100–240 VAC, auto-ranging; optional ±36–76VDC |
Ensures compatibility with global satellite regulatory requirements.
The X7 Satellite Router is ideal for:
✔ High downstream throughput up to 149.7 Mbps
✔ Embedded 8-port Ethernet switch
✔ Dual demodulator capability
✔ Flexible BUC power options
✔ AES-256 encryption support
✔ Advanced QoS & traffic control
✔ Rack-mount enterprise design
✔ Optimized for Evolution and Velocity networks
At VSATplus, we provide:
Our technical team ensures proper sizing, link budget planning, and integration into enterprise satellite networks.
The VT iDirect X7 Satellite Router is a powerful enterprise-class VSAT remote designed to deliver high throughput, secure communication, and advanced traffic management in star topology networks. With DVB-S2/ACM downstream, ATDMA upstream, integrated switching, robust QoS capabilities, and flexible power options, it meets the demands of modern satellite broadband deployments.
For organizations seeking a reliable, scalable, and high-performance satellite router, VSATplus offers the VT iDirect X7 with full technical support and global delivery. Contact VSATplus today to order the X7 Satellite Router and elevate your satellite network performance.
