In modern satellite communication networks—whether in broadcast uplinks, government systems, teleport infrastructures, or commercial VSAT networks—engineers rely heavily on stable, reliable, and interference-free power insertion techniques. The ETL Systems TEEL1-4007 L-Band Bias TEE module is designed precisely for this need.

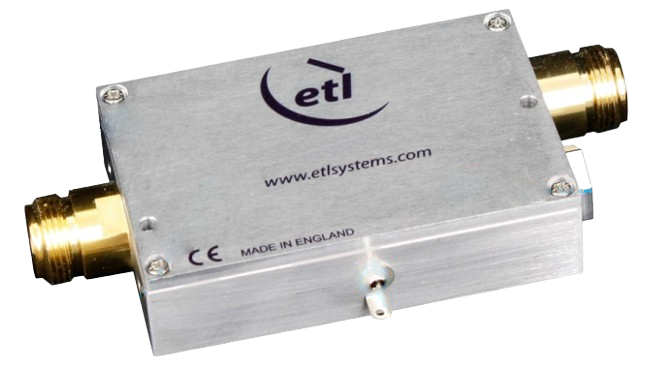

This high-performance bias tee is engineered to insert DC power into L-Band RF signal chains while ensuring minimal signal loss, excellent return loss, and stable operation across a wide range of frequencies. Supporting 850–2150 MHz, the TEEL1-4007 is compatible with virtually all L-Band satellite equipment including LNBs, BUCs, modems, IRDs, matrix switches, and RF distribution systems.
This comprehensive 2000-word article explores the module’s capabilities, technology, advantages, applications, and complete technical specifications—helping engineers, integrators, and network designers understand why this bias tee is considered one of the most reliable in the industry.
For customers seeking dependable satellite RF components, VSATPlus proudly offers the ETL Systems TEEL1-4007, ensuring global availability, expert support, and fast delivery.
A Bias TEE is a device used to insert DC voltage into an RF line without interrupting the RF signal itself. The TEEL1-4007 is designed specifically for L-Band (850–2150 MHz) applications where power is required to operate:
It features:
📡 Low insertion loss
🔌 External DC power input
🔄 10 MHz reference signal pass-through
⚙️ Multiple connector options (SMA, N-Type, BNC, F-Type)
🧱 Compact, rugged housing
🛠 Flexible mounting options
Its robust design ensures reliability, long lifespan, and minimal RF degradation, making it suitable for mission-critical satellite communication environments.
Supports all common L-Band applications including:
With a typical insertion loss of 0.3 dB, the module ensures:
For high-precision RF networks, maintaining signal strength is essential—this bias tee excels in that regard.
This is critical for equipment requiring a stable frequency reference, such as:
10 MHz insertion loss is ±3 dB, with 20 dB rejection on applicable ports.
Available in configurations:
This gives maximum flexibility for integration into existing RF systems.

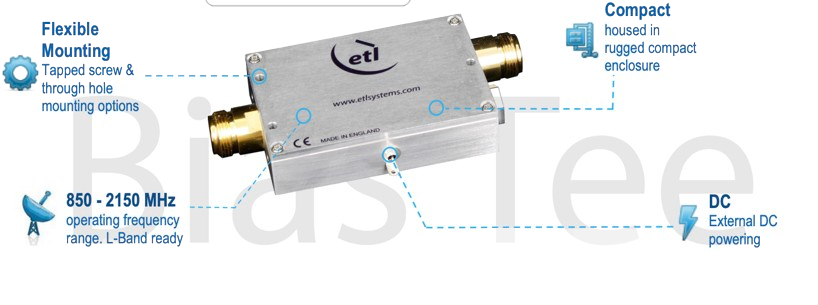

Mounting options include tapped screw holes and through-hole mounting.
Supports external DC powering through:
DC voltage supported: up to 28V
DC current supported: up to 5A
The module supports:
Known for its telecom-grade stability, ETL Systems products are trusted globally by:
The TEEL1-4007 is ideal for:
Because of its compact size and flexible mounting, it integrates easily into:
High-quality components ensure stable operation and reduce failure rates—important for networks requiring 99.9% uptime.
VSATPlus provides:
Powering LNBs and routing 10 MHz reference signals.
Reliable DC feed for BUCs and LNBs.
Used in OB vans, SNG trucks, and broadcast uplinks.
Provides consistent power in harsh environments.
Trusted for secure and mission-critical connectivity.
Allows reliable RF signal measurement while powering devices.
| Parameter | Specification |
|---|---|
| Frequency Range | 850 – 2150 MHz |
| 10 MHz Support | Pass-through ± 3 dB insertion loss, 20 dB rejection on applicable ports |
| RF Connector Options | 50Ω SMA / 50Ω N-Type / 50Ω BNC / 75Ω BNC / 75Ω F-Type |
| Mean Insertion Loss | 0.3 ± 0.3 dB (50Ω), 0.3 ± 0.2 dB (75Ω) |
| Flatness ± | 0.3 dB (50Ω), 0.5 dB (75Ω) |
| Input Return Loss | 18 dB typical (12 dB min) |
| Output Return Loss | 18 dB typical (12 dB min) |
| Operating Temperature | 0°C to +45°C |
| Storage Temperature | -20°C to +75°C |
| Humidity | 85% non-condensing |
| Altitude | Up to 10,000 ft |
| Max RF Input Power | +37 dBm (5W) |
| Max DC Voltage | 28V on any RF port |
| Max DC Current | 5A |
| Mounting Options | Tapped screw or through-hole |

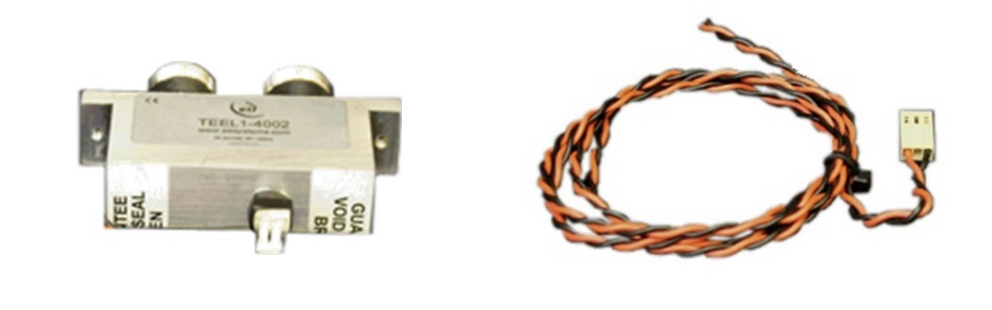

| DC Power Options | Feed-through solder, Male Molex (/1), Female Molex cable |
| External PSU Options | 12V, 24V, and 48V DC power supplies available |
VSATPlus is a specialized supplier of professional satellite communication equipment, offering:
VSATPlus supplies all major satcom brands, ensuring you can purchase this module along with:
All from a single trusted provider.
The ETL Systems TEEL1-4007 L-Band Bias TEE module is a highly reliable, low-loss, and performance-optimized solution designed for engineers who require stable DC power insertion into L-Band RF systems. With support for 10 MHz reference signals, multiple connector configurations, rugged build quality, and superior RF performance, it stands out as one of the top professional bias tees available today.
Whether you are building teleport infrastructure, upgrading VSAT terminals, maintaining broadcast uplinks, or designing defense communication networks, the TEEL1-4007 offers the performance and dependability your system requires.
Order directly at: www.vsatplus.com
Or contact: sales@vsatplus.com
VSATPlus ensures fast global delivery, expert technical support, and competitive pricing for all ETL Systems products.
