Comtech EF Data CDM-760 | Advanced High-Speed Trunking Modem

In the rapidly evolving world of satellite communications, performance, efficiency, and reliability are more critical than ever. Enterprises and service providers seek solutions that deliver massive throughput, high data fidelity, and adaptability across demanding applications—from global internet backhaul to emergency recovery and military-grade communications.

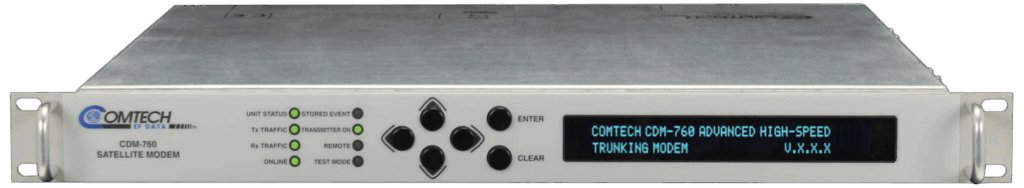

The Comtech CDM-760 Advanced High-Speed Trunking Modem stands as a cornerstone of modern high-throughput satellite (HTS) systems. Designed with carrier-grade robustness and forward-thinking technologies, the CDM-760 is engineered to meet the bandwidth-heavy demands of today’s ISPs, telcos, mobile operators, and government networks. At VSATPlus, we’re proud to offer this market-leading modem to our global clients, ready for integration into your most challenging network deployments.

🔍 Product Overview

The CDM-760 is the pinnacle of Comtech’s high-speed trunking modem series. It enhances the performance of traditional DVB-S2 waveforms with DVB-S2 Efficiency Boost (EB1 & EB2), features ultra-wide symbol rate capabilities (100 ksps to 150 Msps), and provides blazing throughput up to 314 Mbps simplex / 628 Mbps duplex.

Designed to support IP trunking, G.703, disaster recovery, and real-time video streaming, this modem is especially effective in point-to-point architectures. It reduces satellite bandwidth consumption with technologies like DoubleTalk Carrier-in-Carrier®, Adaptive Coding and Modulation (ACM), and Dynamic Pre-Distortion (DPD).

🚀 Key Features

• Wide Symbol and Data Rate Range: 100 ksps to 150 Msps symbol rate, supporting data rates up to 314 Mbps simplex or 628 Mbps duplex.
• Efficiency Boost: Up to 35% greater spectral efficiency over traditional DVB-S2 via EB1/EB2 MODCODs and roll-off optimizations.

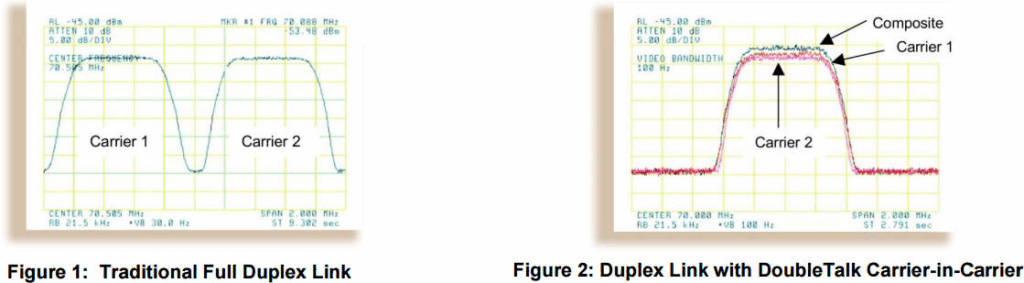

• DoubleTalk Carrier-in-Carrier®: Overlay TX and RX carriers within the same bandwidth to drastically reduce satellite OPEX.
• Adaptive Coding & Modulation (ACM): Real-time adaptation to link conditions for higher throughput and reliability.
• Header Compression & QoS Engine: Enables high packet-per-second performance while maintaining low latency and jitter.
• DVB-CID MetaCarrier: Advanced interference mitigation via embedded unique carrier ID.
• Super Jumbo Frame & Packet Processor: Supports over 1.2 million packets per second, handles header compression, routing, and QoS prioritization.
• Redundancy Options: Supports 1:1 and 1:N redundancy configurations for fault tolerance.
• Multiple Interface Support: Ethernet, Optical, G.703, SDH, and SONET options available.
• Carrier-Class Design: Full metal 1RU chassis, advanced cooling, industrial temperature support, and compliant with major telecom standards.

🛠️ Applications

• ISP Trunking: Maximize data capacity with spectral and link optimization to reduce operating costs.
• Telco Backhaul: Reliable and efficient data aggregation from remote sites to central exchanges.
• Disaster Recovery: Rapid-deploy modem for mobile command units and emergency field stations.
• Government & Defense: Secure, encrypted, and high-throughput satellite links for command and control networks.
• Enterprise Networks: Dedicated corporate WAN backbones using SCPC or carrier aggregation techniques.

⚙️ Technical Specifications (Summary Table)

📈 Performance Highlights

The CDM-760 supports ACM/CCM, SCPC, and DVB-S2-EB2 to deliver optimal throughput regardless of weather, interference, or link degradation. With DoubleTalk Carrier-in-Carrier®, operators can overlay transmit and receive signals, conserving spectrum and achieving >50% bandwidth savings in some scenarios.

Its packet processor can compress VoIP streams by up to 70%, accelerating throughput for codecs like G.729 from 31.2 kbps to just 9 kbps.

Further, GZIP compression delivers real-time payload reductions of up to 59%, especially useful in data-heavy applications like cloud access or media delivery.

🧩 Network Flexibility

The CDM-760 supports both Layer 2 (bridged) and Layer 3 (routed) modes, with up to 256 static routes and 150,000 PPS duplex in routing mode. This flexibility means the modem can be deployed as a managed edge router, traffic shaper, or simple transport gateway.

🔐 Security & Control

Security is reinforced with 256-bit AES link encryption, full SNMPv3 management, and in-band monitoring/control over satellite. The unit also supports automatic uplink power control, dynamic pre-distortion, and remote software upgrades for zero-touch deployments.

🌐 Integration with VSATPlus

At VSATPlus, we not only supply the Comtech CDM-760, but also offer:

• Custom configuration for carrier, telco, and military-grade networks.
• On-site installation support and training.
• 24/7 NOC monitoring and Level-3 support.
• Integration with iDirect, Novelsat, and Newtec systems.

We ensure your investment in CDM-760 delivers maximum ROI through our full-service satellite engineering support.

💬 Conclusion

The Comtech CDM-760 Advanced High-Speed Trunking Modem is not just a piece of hardware—it’s a total bandwidth-optimized, link-resilient, enterprise-class connectivity engine. With its breakthrough spectral efficiencies, traffic prioritization tools, and robust security protocols, the CDM-760 stands unmatched in its class.

Whether you are an ISP aiming to expand rural coverage, a telecom provider optimizing trunk traffic, or a government agency ensuring operational continuity, the CDM-760 is your definitive tool.

👉 Ready to supercharge your satellite network? Contact VSATPlus today to request a quote or get a consultation on how the CDM-760 can optimize your infrastructure.
