Agilis ASM1200 Series iQ200 Outdoor Satellite Modem | Rugged Connectivity Reinvented

by Hamid Bagheri | December 9, 2025

In today’s fast-paced, hyper-connected world, reliable satellite communication infrastructure is the cornerstone for mission-critical connectivity in remote and harsh environments. The ASM1200 Series iQ200 Outdoor Satellite Modem, developed by Agilis and integrated with the powerful iDirect iQ200 modem, offers a next-generation satellite modem solution that’s engineered for performance, flexibility, and durability.

Offered exclusively at VSATPLUS, the ASM1200-24 model is your go-to outdoor modem designed for enterprises, defense, land mobile, and maritime applications requiring uninterrupted broadband IP connectivity.

📌 Overview

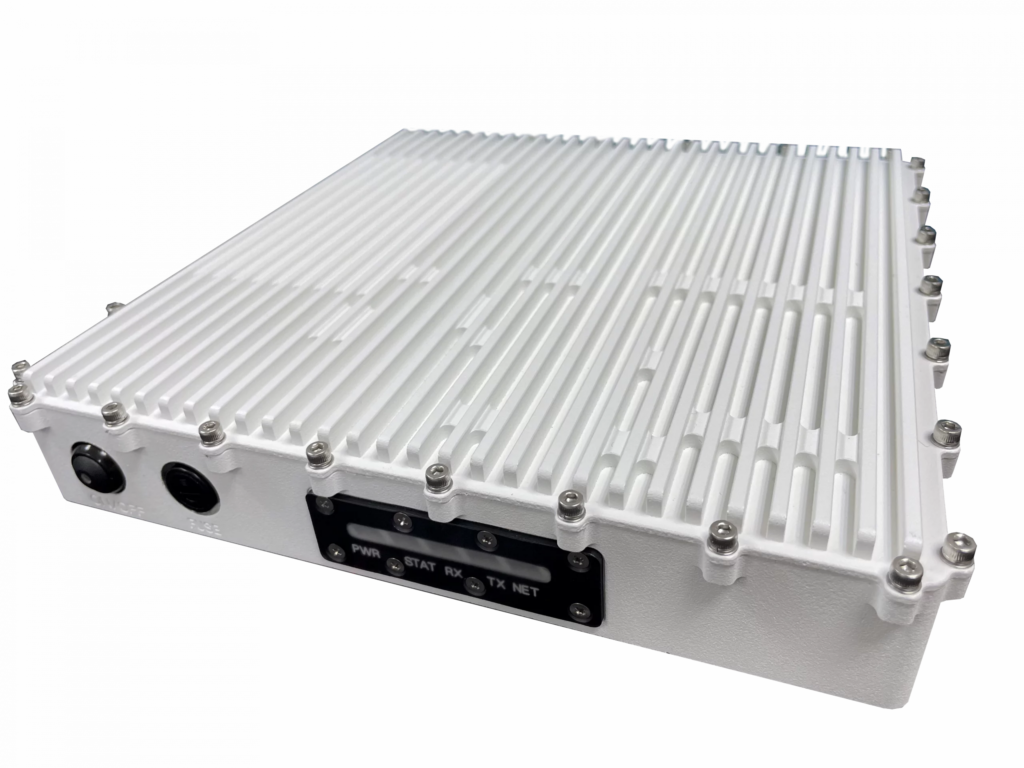

The Agilis ASM1200-24, integrated with the iDirect iQ200 modem, is a compact, high-performance outdoor satellite modem engineered to withstand extreme environments. Built to operate under full IP routing capability, it supports C, Ku, and Ka-Band VSATs and offers advanced DVB-S2/S2X with Adaptive Coding and Modulation (ACM) on the outbound and A-TDMA on the inbound.

Whether deployed for remote mobile communication, enterprise branch backup, or military missions, the ASM1200 provides a ruggedized solution with IP67 weatherproof protection, RoHS compliance, and security-enhanced AES 256-bit encryption.

⭐ Key Features

The ASM1200 modem shines with the following features:

✅ Compact, Lightweight, and Rugged (SWaP Optimized) Ideal for field deployments where space, weight, and power are at a premium.
✅ Integrated iDirect iQ200 Modem Supports both Evolution and Velocity networks, ensuring broad compatibility.
✅ High-Speed IP Connectivity Seamlessly delivers broadband IP over satellite with support for DVB-S2/S2X, A-TDMA, and multiple modulation types including QPSK, 8PSK, 16APSK, and more.
✅ Built-In Routing and VLAN Capabilities Acts as an intelligent edge device with Layer 2 and Layer 3 optimization.
✅ Dual Compatibility: Evolution + Velocity Offers flexibility in network configuration and service provider compatibility.
✅ Military-Grade Security (Optional) Comes with optional 256-bit AES encryption, vital for defense and enterprise security requirements.
✅ Flexible BUC and LNB Integration Provides integrated 10 MHz and 50 MHz reference signals with power supply through RF ports.
✅ Environmental Stress Screened and Water Ingress Tested Delivers reliable performance in operating temperatures ranging from -20°C to +60°C under 100% humidity .

📊 Technical Specifications

Here is a breakdown of the technical specifications for the ASM1200-24 iQ200 Outdoor Satellite Modem :

⚙️ Network Configuration

Feature	RX	TX
Network Topology	DVB-S2X / ACM	Adaptive TDMA
Modulation	QPSK, 8PSK, 16APSK, etc.	SS-BPSK, 8PSK, 16QAM
FEC	LDPC 1/4 – 8/9	2D 16-State 1/2 – 6/7
Symbol Rate	5 Msps to 100 Msps	1 Msps to 45 Msps
Spread Spectrum	NA	Up to 7.5 Mcps (Factor 2–8)

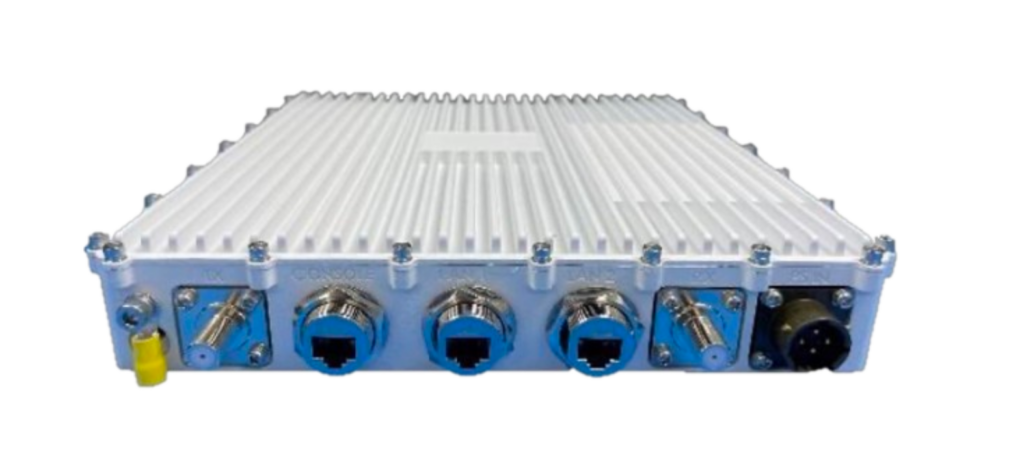

🔌 Interfaces

Interface	Description
TX Connector	F-Type Female 75Ω, 950–2400 MHz, 0.5 dB steps
TX Output Power	-35dBm to 0dBm
BUC Power	+24V, 2.3A (max)
RX Connector	F-Type Female 75Ω, 950–2150 MHz
LNB Power	13/18V, 0.5A
Data Ports	Dual RJ45 Ethernet (10/100/1000 Mbps)
Protocols	TCP, UDP, NAT, DNS, IGMP, IPv4
Security	256-bit AES (Optional)

🔧 Power & Environmental

Feature	Spec
Input Voltage	24VDC (22.8 – 25.2V)
Typical Consumption	15W (excluding BUC & LNB)
Operating Temp	-20°C to +60°C
Storage Temp	-40°C to +85°C
Humidity	Up to 100%
Weatherproof	IP67

📏 Mechanical

Feature	Spec
Dimensions	230 x 230 x 43 mm
Weight	2.5 kg

🔧 Standard Parts & Optional Accessories

Standard Configuration Includes:

Item	Product	Part No.	Description
1	Modem	ASM1200-24	Outdoor Modem
2	Connector	5702200042	Plug Socket 12-4S
3	Ethernet Conn.	P0006973-0001	RJ45 Threaded IP67 Connector

Optional Add-ons:

Item	Product	Part No.	Description
1	PSU	APSVAC24-185	Outdoor Power Supply 90-265VAC
2	Adapter Cable	2502042528	1.5M Cable for X1 Outdoor PSU
3	Rack Mount Bracket	4001763708G	Panel Bracket for Rack Install

💡 Ideal Use Cases

The ASM1200 iQ200 is designed for broad deployment across critical industries:

1. Enterprise Networks

Perfect for branch connectivity, banking backhauls, or any location where terrestrial networks are limited or unreliable.

2. Defense & Tactical Communications

The small footprint and rugged design, combined with secure encrypted transmission, make it ideal for military use.

3. Cellular Backhaul

Supports rural and urban cellular networks with efficient IP routing and high throughput.

4. Land Mobile / Disaster Recovery

Mounted on mobile units like news vans or emergency response vehicles to deliver on-the-go connectivity.

5. Maritime Applications

The weatherproof, compact design fits seamlessly with vessel-based communications platforms.

💬 Why Choose ASM1200 from VSATplus?

✅ We are proud to offer the Agilis ASM1200-24 Outdoor Satellite Modem at VSATPLUS, your trusted source for satellite communication equipment. When you choose us:

You get authentic, factory-tested hardware.
We provide expert support for installation and configuration.
Fast global shipping options available.
Bundle deals for BUCs, antennas, and rack accessories on request.

Visit: 🌐 www.vsatplus.com

📧 Contact: sales@vsatplus.com

🧠 Final Thoughts

If your operation depends on consistent, high-speed satellite communication in unpredictable environments, the ASM1200 Series iQ200 Outdoor Satellite Modem is a smart investment. With built-in routing, advanced modulation, rugged IP67 build, and compatibility with leading satellite networks, this modem delivers top-tier connectivity where you need it most.

Don’t compromise on your satellite infrastructure. Future-proof your network today — Get the ASM1200-24 from VSATplus.
